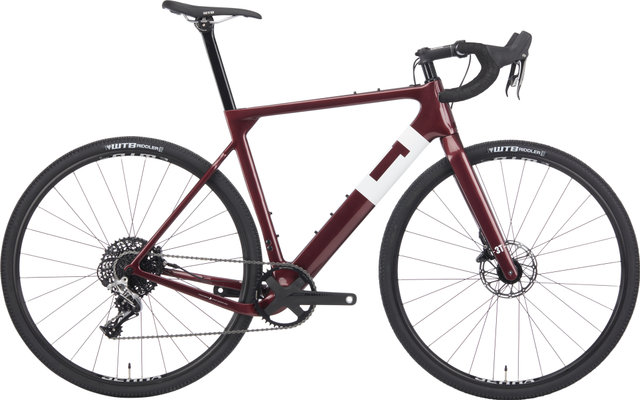

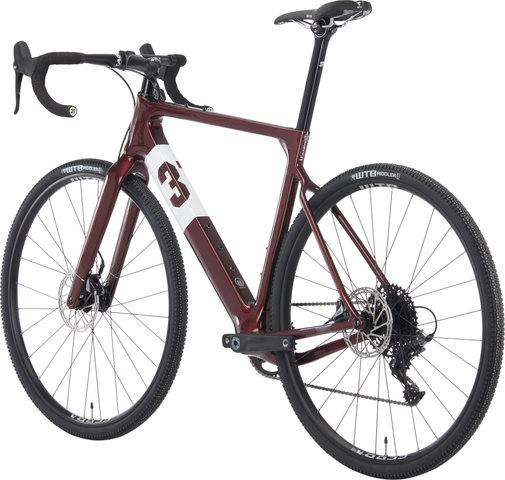

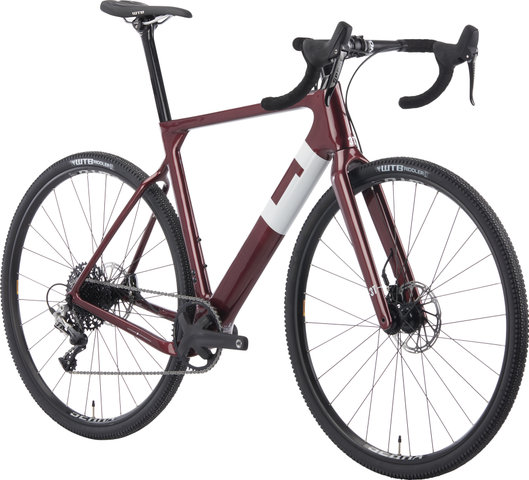

3T Exploro Pro Rival 1x Carbon Gravel Bike

3T Exploro Pro Rival 1x Carbon Gravel Bike - Aerodynamic on gravel tracks

The Exploro Pro Rival gravel bike from 3T is made of carbon and equipped with SRAM Rival components. The bike combines the speed of road bikes with the durability of MTBs. This makes it suitable for almost all surfaces, whether asphalt, gravel or even singletracks. The 1x shifters and derailleurs facilitate handling off-road. The lowest gear has a transmission ratio of 1:1. With this ratio you can also master steep climbs effortlessly. The Sqaero frame design, developed by 3T, ensures the best off-road aerodynamics, even when covered with mud and dirt. It is not without reason that the Exploro Pro has already won the Dirty Kanza and other renowned gravel races.

Specifications:

Application:

Gravel

Wheel Size:

28"

Sizes:

S, M, L, XL

Frame Material:

Carbon

Fork Material:

Carbon

Components:

Frame:

Exploro Pro

Fork:

Fango Pro

Stem:

Apto Stealth

Handlebars:

Superergo Pro

Headset:

1 1/8" - 1.5" , sealed

Seatpost:

Charlie Exploro

Saddle:

Selle Italia Model X Superflow

Crank:

FSA Omega, 42 teeth, BB386EVO

Pedals:

none

Brakes:

SRAM Rival, Flat Mount, hydraulic, 160 mm

Shift/Brake lever:

SRAM Rival, hydraulic, 1x

Rear Derailleur:

SRAM Rival, 1x, long cage

Cassette:

SRAM PowerGlide™, 11-speed, 11-42 teeth

Chain:

CN PC111014LI W / PWR.LCK 11-speed

Wheels:

WTB Serra, 700C, Tubeless Ready, Disc

Tyres:

WTB Riddler Comp, 700 x 37C

Note:

The tyres in the photos differ from the tyres actually delivered.

Approved For:

Rotor Size (max.):

160 mm

Tyre Size (max.):

650x53B, 700x40C

Chainring Size (max.):

36-50 t (2x), 46 t (1x, offset), 50 t (1x, flat), 33-46 t (2x, SRAM AXS)

Chainrings:

1x, 2x

Features:

• aerodynamic carbon gravel bike for high performance
• winning wheel from the Dirty Kanza
• Sqaero tube profiles
• up to 53 mm tyre clearance for 27.5"
• internal cable routing
• integrated, self-aligning seatpost clamp

Geometry:

S:

Recommended Height:

156 - 170 cm

Stack:

517 mm

Reach:

366 mm

Seat Tube Length:

463 mm

Effective Top Tube Length:

529 mm

Head Tube Length:

101 mm

Chainstay Length:

415 mm

BB Drop:

70 mm

Seat Tube Angle:

72.5°

Head Tube Angle:

69.5°

Crank Arm Length:

170.0 mm

M:

Recommended Height:

168 - 180 cm

Stack:

546 mm

Reach:

378 mm

Seat Tube Length:

490 mm

Effective Top Tube Length:

550 mm

Head Tube Length:

125 mm

Chainstay Length:

415 mm

BB Drop:

70 mm

Seat Tube Angle:

72.5°

Head Tube Angle:

71.1°

Crank Arm Length:

172.5 mm

L:

Recommended Height:

178 - 191 cm

Stack:

575 mm

Reach:

390 mm

Seat Tube Length:

518 mm

Effective Top Tube Length:

550 mm

Head Tube Length:

125 mm

Chainstay Length:

415 mm

BB Drop:

70 mm

Seat Tube Angle:

72.5°

Head Tube Angle:

72.5°

Crank Arm Length:

172.5 mm

XL:

Recommended Height:

188 - 201 cm

Stack:

604 mm

Reach:

402 mm

Seat Tube Length:

545 mm

Effective Top Tube Length:

592 mm

Head Tube Length:

180 mm

Chainstay Length:

415 mm

BB Drop:

70 mm

Seat Tube Angle:

72.5°

Head Tube Angle:

72.5°

Crank Arm Length:

175.0 mm

Technology:

Sqaero
Sqaero tube profiles developed by 3T Cycling allow you to move forward efficiently and quickly while taking maximum advantage of your wattage. They are fast even in less-than-perfect conditions thanks to RealFast technology - even when the frame is covered in mud and dirt.

GravelPlus
The Exploro fits both, 27.5" MTB wheels and 28" road wheels, so the Exploro follows the GravelPlus standard. Road and cross tyres have a tyre size of 700C, and MTB tyres have a size of 650B. Virtually, the tyres have approximately the same wheel circumference, which ensures consistently predictable driving behaviour.

Manufacturer Numbers:

S:

9239DCAX36W

M:

9239DCAY36W

L:

9239DCAZ36W

XL:

9239DCBA36W

Shipping Notice:

The shipment is sent pre-assembled by a forwarding agent. The delivery time is extended by 2-5 days, depending on the overall volume of orders. For individual consultation, please contact our customer service team.

Contents:

• 1 x 3T Exploro Pro Rival 1x Carbon Gravel Bike
