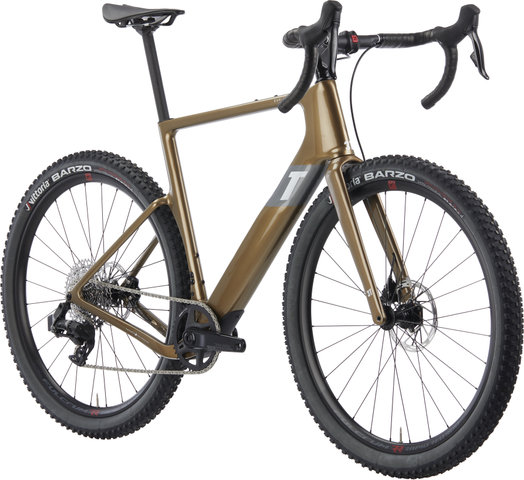

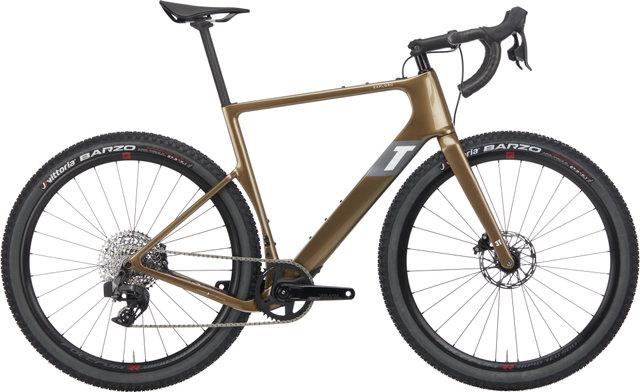

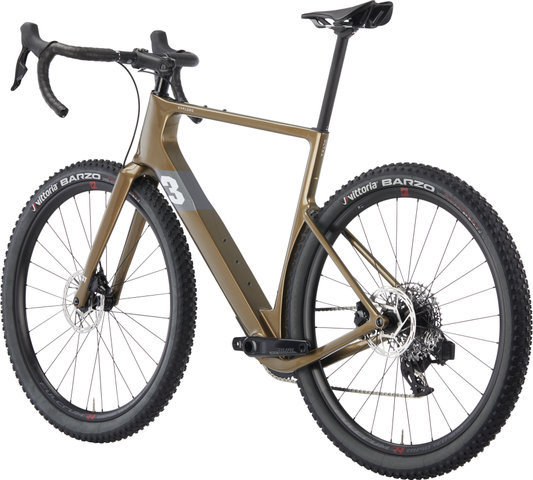

3T Exploro Ultra Rival AXS 1x Carbon Gravel Bike

The 3T Exploro Ultra Rival AXS 1x Carbon Gravel Bike - With electronic gears for gravel adventures

The Exploro Ultra Carbon gravel bike from 3T is equipped with a SRAM Rival AXS XPLR 1x12-speed drivetrain and is suitable for demanding, fast gravel tours. The electronic gears are uncomplicated and there is no need for tedious adjustment of the rear derailleur. The frame forms the link between aerodynamically optimised, fast road bike frames and trail-tested MTB frames. The Exploro Ultra carbon fork and the down tube, which tapers from the bottom bracket to the head tube, have been aerodynamically-optimised. The seat tube also has a profile designed for aerodynamics. However, the carbon seatpost is round as standard. The chassis consists of the proven Fulcrum Rapid Red 900 Gravel wheels and fast Pirelli Cinturato tyres.

Information regarding the return of batteries and electrical equipment:

Information on the return and disposal of batteries and electrical equipment can be found here.

Specifications:

Application:

Gravel

Wheel Size:

27.5" (650B)

Sizes:

XS, S, M, L, XL

Frame Material:

carbon

Fork Material:

carbon

Components:

Frame:

3T Exploro Ultra

Fork:

Fango Ultra

Stem:

Apto Stealth

Handlebars:

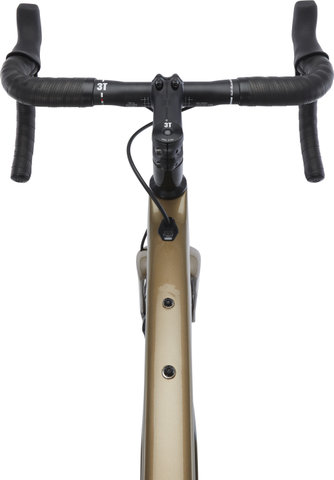

Superergo Pro

Headset:

IS44/28.6- IS47/38, sealed

Seatpost:

27.2 mm x 350 mm, carbon

Saddle:

Selle Italia Model X Superflow

Crank:

SRAM Rival XPLR, 40 T

Pedals:

none

Brakes:

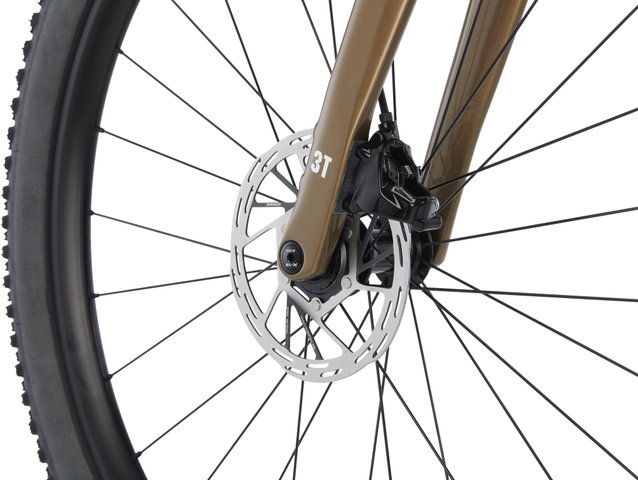

SRAM Rival, Flat Mount, hydraulic, Center Lock Disc, 160 mm

Shift/Brake lever:

SRAM Rival eTap AXS

Rear Derailleur:

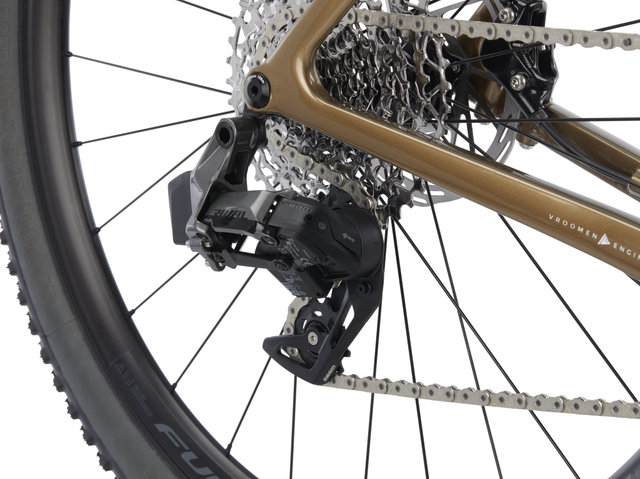

SRAM Rival XPLR, medium cage

Cassette:

SRAM 12-speed PowerGlide, 10-44 T

Chain:

SRAM PC-1130

Wheels:

Fulcrum Rapid Red 900, Disc Brake, 700C, Tubeless Ready

Tyres:

Vittoria Barzo

Approved For:

Rotor Size (max.):

160 mm

Tyre Size (max.):

700C x 45 mm, 650B x 61 mm

Chainrings:

1x

Features:

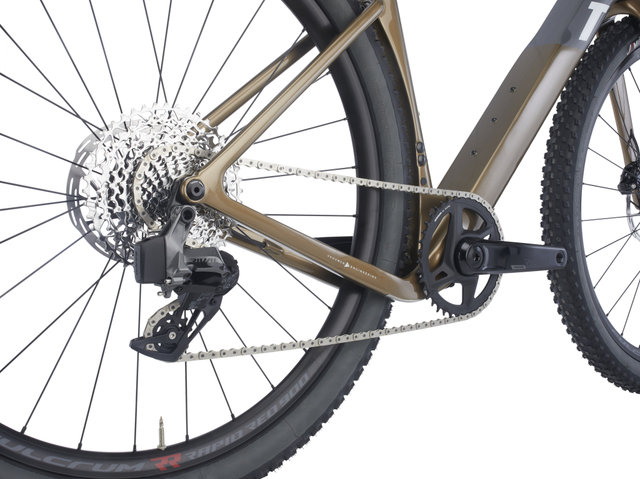

• gravel bike with SRAM Rival 1 XPLR eTap AXS drivetrain

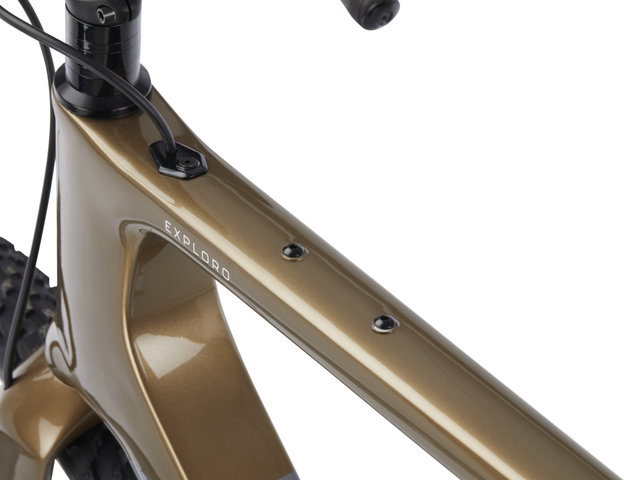

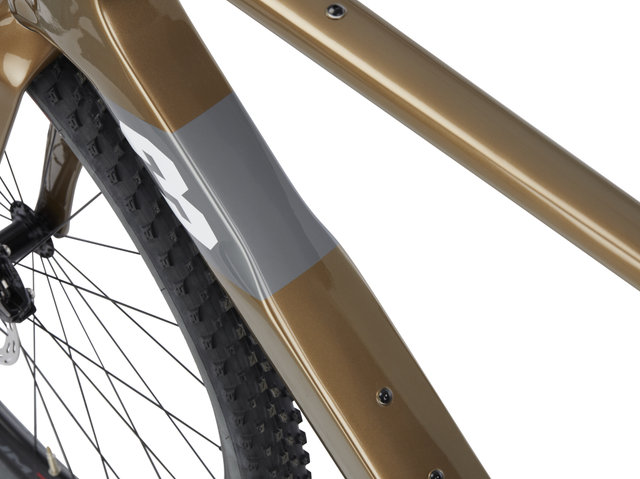

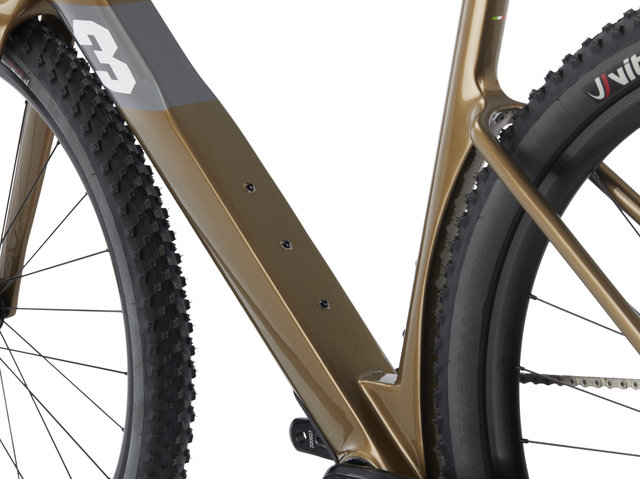

• carbon frame with extra stable down tube (75 mm at the base, 60 mm at the head tube)
• aerodynamic seat tube with round carbon seatpost
• reduced fork crown for less weight and better aerodynamics

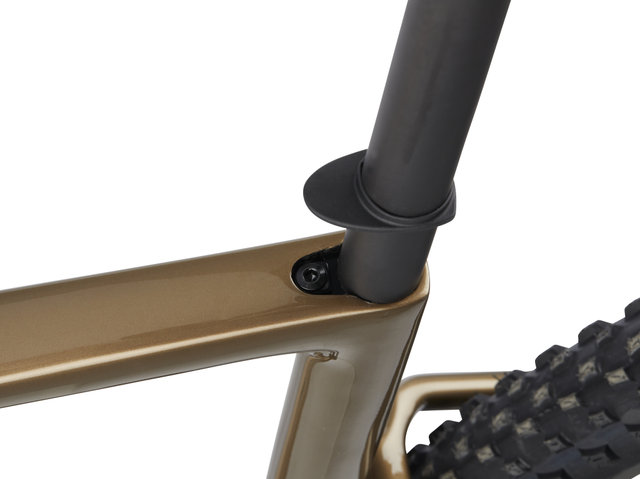

• integrated, self-aligning seatpost clamp
• integrated fender mounts
• Fulcrum Rapid Red 900 wheels with 22 mm jaw width

Geometry:

XS:

Recommended Height:

157 - 171 cm

Stack:

542 mm

Reach:

362 mm

Seat Tube Length:

463 mm

Effective Top Tube Length:

526 mm

Head Tube Length:

147 mm

Chainstay Length:

419 mm

Wheelbase:

1008 mm

BB Drop:

79 mm

Seat Tube Angle:

74°

Head Tube Angle:

69.5°

Stem Length:

80 mm

Handlebar Width:

400 mm

Crank Arm Length:

170.0 mm

S:

Recommended Height:

168 - 180 cm

Stack:

564 mm

Reach:

373 mm

Seat Tube Length:

490 mm

Effective Top Tube Length:

546 mm

Head Tube Length:

161 mm

Chainstay Length:

419 mm

Wheelbase:

1012 mm

BB Drop:

79 mm

Seat Tube Angle:

73.5°

Head Tube Angle:

71°

Stem Length:

90 mm

Handlebar Width:

420 mm

Crank Arm Length:

172.5 mm

M:

Recommended Height:

176 - 186 cm

Stack:

584 mm

Reach:

381 mm

Seat Tube Length:

520 mm

Effective Top Tube Length:

566 mm

Head Tube Length:

180 mm

Chainstay Length:

419 mm

Wheelbase:

1014 mm

BB Drop:

79 mm

Seat Tube Angle:

73°

Head Tube Angle:

72°

Stem Length:

100 mm

Handlebar Width:

420 mm

Crank Arm Length:

172.5 mm

L:

Recommended Height:

183 - 195 cm

Stack:

604 mm

Reach:

388 mm

Seat Tube Length:

549 mm

Effective Top Tube Length:

586 mm

Head Tube Length:

201 mm

Chainstay Length:

419 mm

Wheelbase:

1024 mm

BB Drop:

79 mm

Seat Tube Angle:

73°

Head Tube Angle:

72.5°

Stem Length:

110 mm

Handlebar Width:

440 mm

Crank Arm Length:

175.0 mm

XL:

Recommended Height:

from 192 cm

Stack:

632 mm

Reach:

393 mm

Seat Tube Length:

576 mm

Effective Top Tube Length:

606 mm

Head Tube Length:

232 mm

Chainstay Length:

419 mm

Wheelbase:

1044 mm

BB Drop:

79 mm

Seat Tube Angle:

72.5°

Head Tube Angle:

72.5°

Stem Length:

120 mm

Handlebar Width:

440 mm

Crank Arm Length:

175.0 mm

Manufacturer Numbers:

XS:

9205CVDJ16W

S:

9205CVDK16W

M:

9205CVDL16W

L:

9205CVDM16W

XL:

9205CVDN16W

Shipping Notice:

The shipment is sent pre-assembled by a forwarding agent. The delivery time is extended by 2-5 days, depending on the overall volume of orders. For individual consultation, please contact our customer service team.

Contents:

• 1 x 3T Exploro Ultra Rival AXS 1x Carbon gravel bike
