Acros IS42/28.6 Headset Top Assembly

The IS42/28.6 headset top assembly from Acros with fully integrated cup design for 1 1/8" head tubes and straight standard or tapered steerer tubes is an all-round carefree product. It impresses with double sealed angular contact ball bearings made of stainless steel, optimized headset grease and additional seals.

Use:

Designed for 1 1/8" upper head tube diameters combined with standard 1 1/8" or 1 1/8" - 1.5" tapered forks.

Specifications:

Application:

Road, Gravel, All Mountain, Cross Country, Enduro, City & Touring

Design:

integrated (IS)

Top Outer Diameter:

42 mm

Top Inner Diameter:

28.6 mm

Head Tube:

1 1/8"

Steerer Tube:

1 1/8" , 1 1/8" - 1.5" tapered

Technical Information:

Bearings:

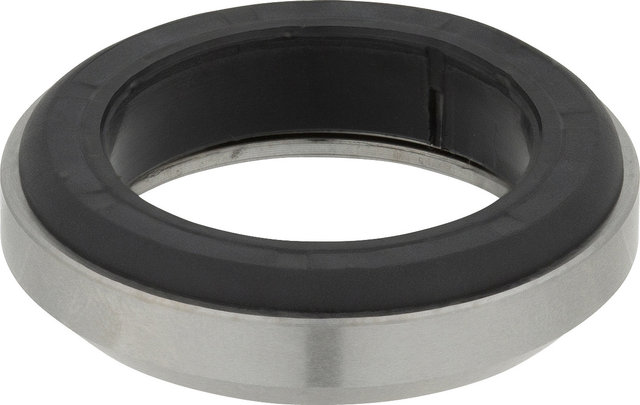

Stainless steel angular contact ball bearings, double sealed

Top Stack Height:

13 mm

Seals:

dual double lip seal

Features:

• optimised headset grease
• dual double lip seal offers protection from moisture and dirt
• compression ring made of fibreglass-reinforced composite material with vulcanized seal
• long durability with minimal maintenance
• 7.9 mm bearing depth

Standardized Headset Identification System (S.H.I.S.):

In order to clarify and bring uniformity to a sea of headset standards, manufacturers Acros, Cane Creek, Hope, Race Face, Reset Racing and Ritchey have agreed upon using a shared nomenclature, which will likely include more participating companies in the future. This system takes into account a combination of frame and fork dimensions. Both the top and bottom parts of the headset are marked by two alphanumeric identifiers. The first identifier indicates the type of headset (External Cup, Zero Stack, Integrated) and head tube diameter. The second identifier - separated from the first by a backslash - indicates the diameter of the steerer tube. When referring to a complete headset, the specifications of both top and bottom parts must be combined.

Nomenclature:

EC:

Bearings contained within headset cups that are located outside of the frame (External Cup)

ZS:

Bearings contained within pressed-in headset cups where the cup and bearings rest inside the frame (Zero Stack)

IS:

Bearings that fit directly into a bonded or machined interface that is integrated into the frame (Integrated)

Manufacturer Numbers:

black:

26.02.605R2LS

red:

26.04.605R1LS

blue:

26.05.605R1LS

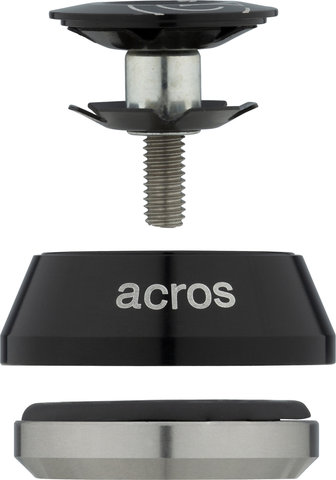

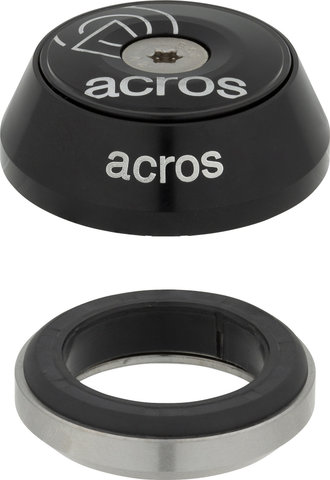

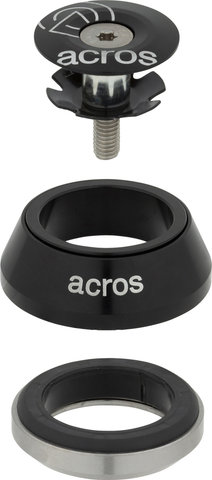

Contents:

Acros IS42/28.6 Headset Top Assembly, consisting of:

• 1 x stainless steel bearing

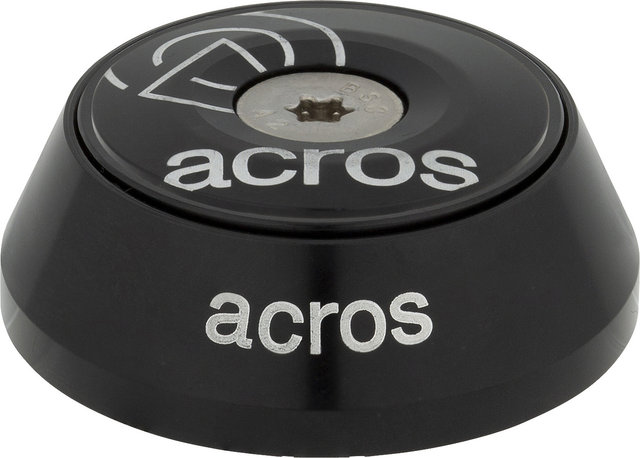

• 1 x top cap
• 1 x Ahead cap
• 1 x star nut with aluminium bolt
• 1 x compression ring
• 1 x spare compression ring
