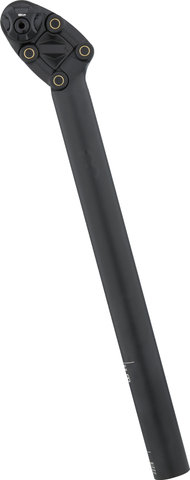

BBB ActionPost BSP-42 Seatpost

Guidelines for Replacing E-bike Components:

Before you replace components on your e-bike, please read through the guidelines for component replacement for CE-marked e-bikes/pedelecs with pedal assistance.

Specifications:

Application:

All Mountain, City, Gravel, Road, Touring & Trekking

Diameter:

27.2 mm, 30.9 mm, 31.6 mm

Length:

400 mm

Setback:

20 mm

Technical Information:

Clamp:

single bolt

Compatible Saddle Rails:

7 x 7 mm (standard)

Material:

aluminium (6061 T6)

Features:

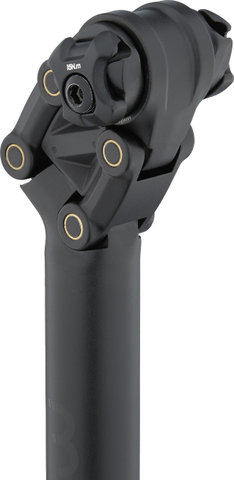

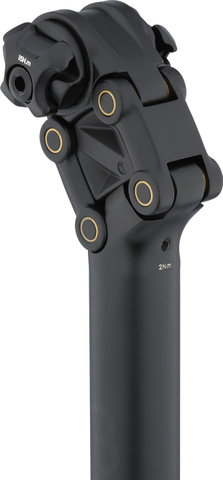

• seatpost with parallelogram suspension for more comfort on tour
• absorbs shocks and vibrations
• 3 interchangeable elastomers for individual adjustment to the rider's weight
• also suitable for e-bikes
• light and stable aluminium construction
• 40 cm total length

Models:

27.2 mm / 400 mm / SB 20 mm:

Diameter:

27.2 mm

Length:

400 mm

Setback:

20 mm

Manufacturer Number:

2973634201

30.9 mm / 400 mm / SB 20 mm:

Diameter:

30.9 mm

Length:

400 mm

Setback:

20 mm

Manufacturer Number:

2973634202

31.6 mm / 400 mm / SB 20 mm:

Diameter:

31.6 mm

Length:

400 mm

Setback:

20 mm

Manufacturer Number:

2973634203

Contents:

• 1 x BBB ActionPost BSP-42 seatpost

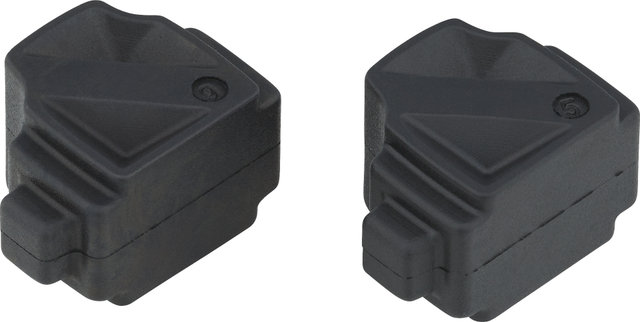

• 1 x BBB D50 >65 kg elastomer
• 1 x BBB D70 65 - 85 kg elastomer (mounted)
• 1 x BBB D90 85 - 120 kg elastomer
