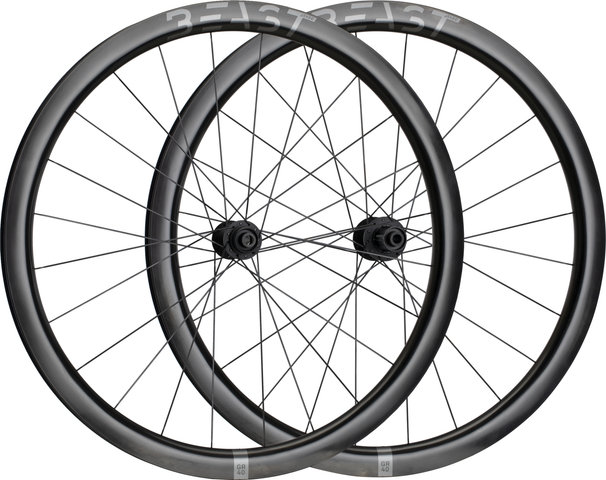

BEAST Components GR40 Center Lock Disc Carbon 28" Wheelset

The GR40 by BEAST Components is a gravel wheelset for race-oriented gravel bikers. The 40 mm high carbon rims shine with excellent aerodynamics. Thanks to the reinforced rim flange, you can ride wide tyres with low pressure without any issue. DT Swiss Center Lock hubs guarantee you absolute control, both on and off paved roads.

Specifications:

Application:

Gravel

Wheel Size:

28"

Tyre Type:

clincher tyre

Number of Spokes:

24

Brake Type:

Center Lock Disc

Tubeless System:

Tubeless Ready

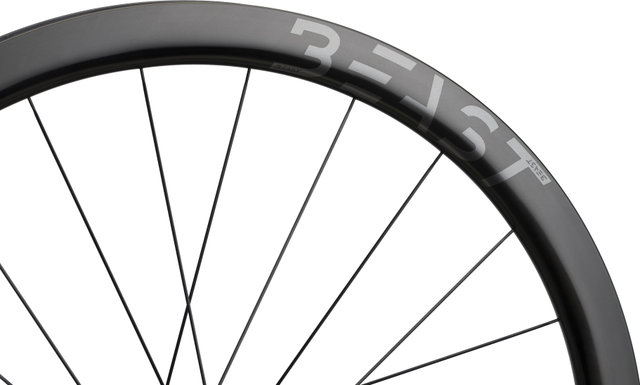

Technical Information - Rim:

Type:

GR40

Rim Flange:

hookless

Dimensions (ETRTO):

25-622

Inner Width:

25 mm

Outer Width:

30.4 mm

Depth:

40 mm

ERD:

557 mm (rim base)

Valve Hole Diameter:

SV/Presta (6.5 mm)

Rim Material:

Carbon

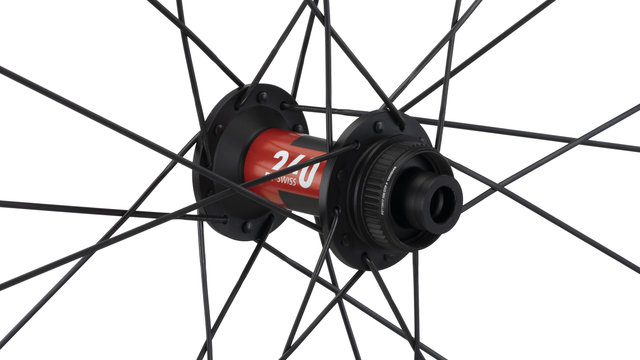

Technical Information - Front Hub:

Type:

DT Swiss 240

Over Locknut Dimension:

12 x 100 mm thru-axle

Bearings:

steel bearings

Body Material:

aluminium

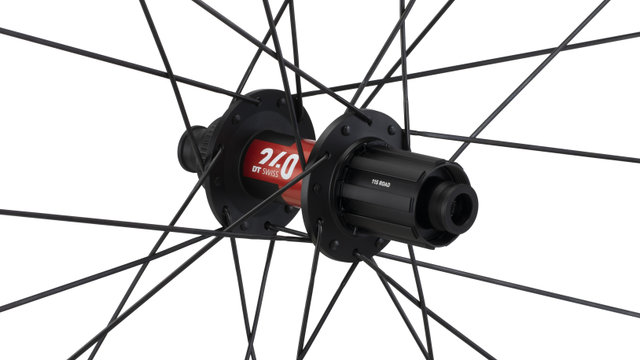

Technical Information - Rear Hub:

Type:

DT Swiss 240

Over Locknut Dimension:

12 x 142 mm thru-axle

Bearings:

steel bearings

Body Material:

aluminium

Freehub Body:

Ratchet EXP 36

Technical Information - Lacing:

Front Lacing Pattern:

2-cross

Rear Lacing Pattern:

2-cross

Spoke Type:

Sapim CX-Ray

Spoke Material:

stainless steel

Nipple Type:

Sapim internal

Nipple Material:

aluminium

Colour Info:

UD carbon-black:

• Rims: black with grey decals
• Hubs: black red
• Spokes: black
• Nipples: black

Models:

28" set (front 12x100 + rear 12x142) Shimano:

Freehub:

Shimano Road

Gearing:

8-/9-/10-/11-/12-speed

Note:

Assembly of 8-/9-/10-speed cassettes on Shimano Road freehub bodies requires a 1.85 mm spacer.

Manufacturer Number:

W2SGR402428US1

28" set (front 12x100 + rear 12x142) SRAM XDR:

Freehub:

SRAM XDR

Gearing:

11-/12-speed

Note:

A 1.8 mm spacer is required to mount XD cassettes on an XDR freehub.

Manufacturer Numbers:

W2XGR402428US1

Contents:

• 1 x BEAST Components GR40 wheelset (front and rear wheel)
• 2 x rolls of rim tape
