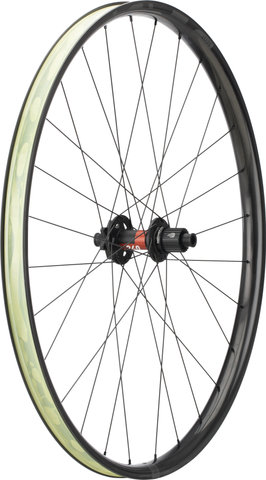

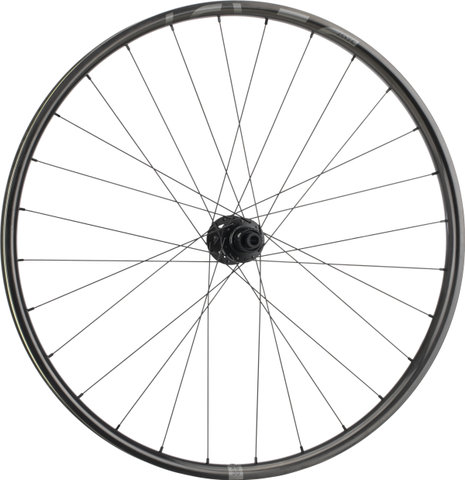

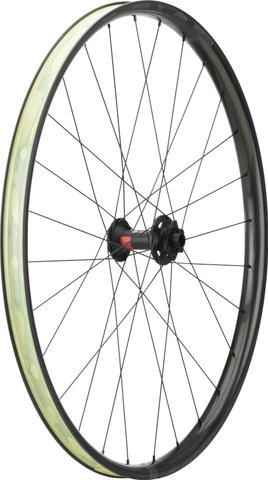

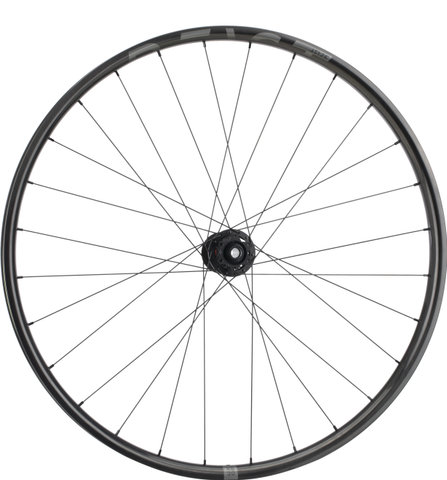

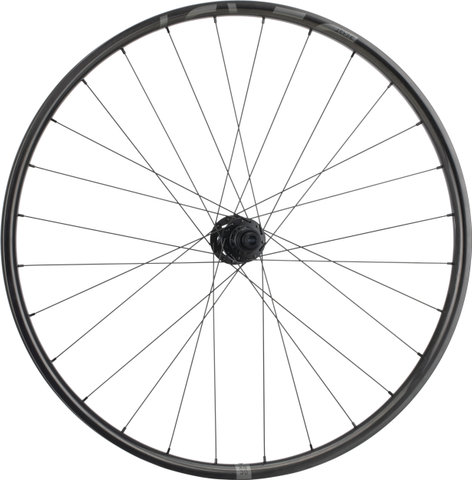

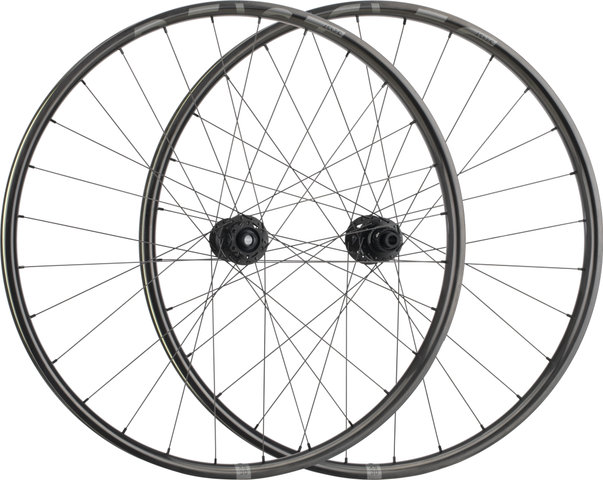

BEAST Components XS30 Disc 6-Bolt Boost Carbon 29" Wheelset

The BEAST Components XS30 Disc 6-bolt Boost Carbon 29" Wheelset - For performance on cross-country bikes

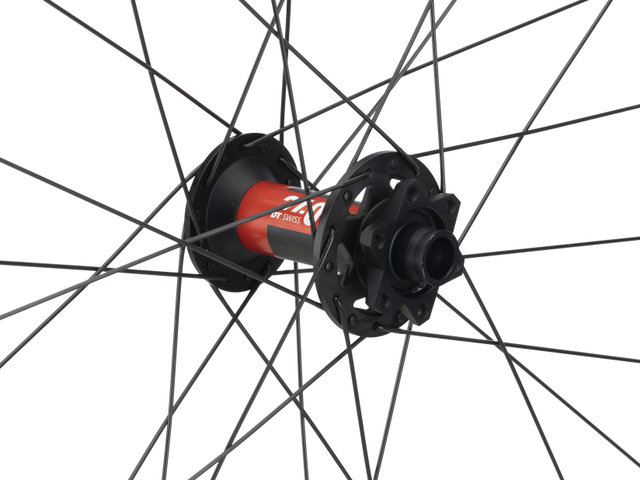

The XS30 29-inch wheelset from BEAST Components is made of hand-laid carbon and, thanks to its 350 g light rim, is particularly suitable for those who pay attention to every gram on their mountain bike. A carbon prepreg is used for the hookless tubeless-ready rims, which means that many layers can be left out while still ensuring a high level of stability. This keeps the weight low and you can still master the trickiest trails without worry. A 30 mm inner rim width permits the use of wide tyres for all weather conditions. The 240 Classic hubs by DT Swiss for 6-bolt disc brakes optimally transform your pedalling power into propulsion, so that you can move forward particularly quickly on flat tracks or less technical trails. Each high-quality wheel is hand-crafted in Dresden, Germany.

Specifications:

Application:

Cross Country

Wheel Size:

29"

Tyre Type:

clincher tyre

Number of Spokes:

32

Brake Type:

Disc 6-bolt (Boost)

Wheel Standard:

Boost

Tubeless System:

Tubeless Ready

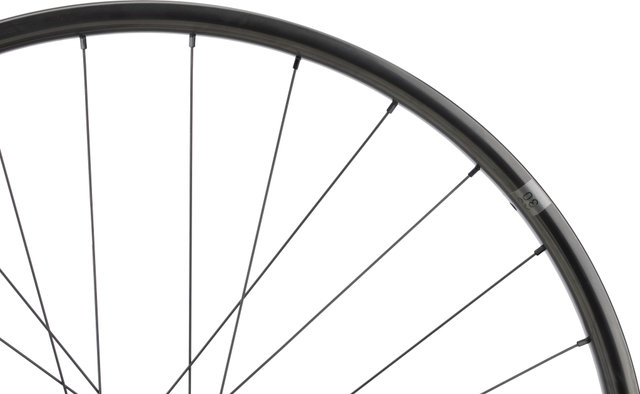

Technical Information - Rim:

Rim Flange:

without hook

Dimensions (ETRTO):

30-622

Inner Width:

30 mm

Outer Width:

35.7 mm

Depth:

20 mm

ERD:

596 mm

Valve Hole Diameter:

SV/Presta (6.5 mm)

Rim Material:

Carbon

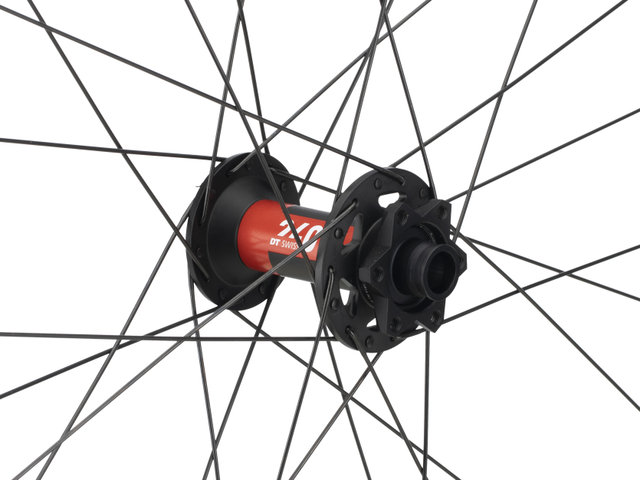

Technical Information - Front Hub:

Type:

DT Swiss 240 Classic

Over Locknut Dimension:

15 x 110 mm thru-axle

Bearings:

steel bearings

Body Material:

Aluminium

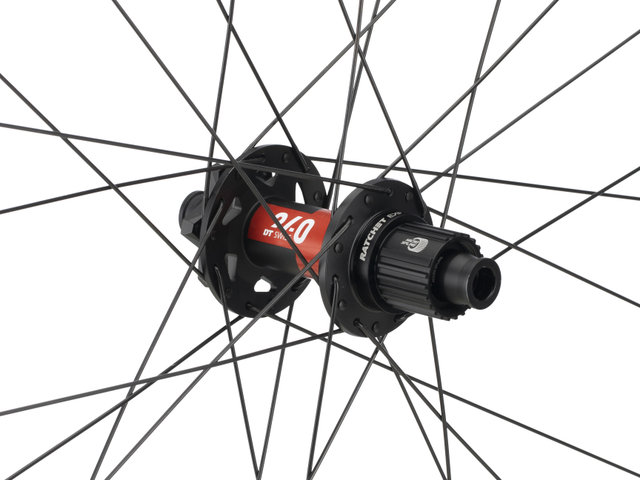

Technical Information - Rear Hub:

Type:

DT Swiss 240 Classic

Over Locknut Dimension:

12 x 148 mm thru-axle

Bearings:

steel bearings

Body Material:

Aluminium

Freehub Body Material:

Aluminium

Freehub Body:

Ratchet EXP 36

Technical Information - Lacing:

Front Lacing Pattern:

2-cross

Rear Lacing Pattern:

2-cross

Spoke Type:

Sapim CX-Ray / J-bend / straight

Spoke Material:

stainless steel (18/8)

Nipple Type:

Sapim / external

Nipple Material:

Aluminium

Approved For:

Weight Limit:

115 kg (system weight)

Air Pressure (max.):

2.8 bar (2.35" )

Recommended Tyre Width:

2.35" - 2.5"

Models:

29" set (front 15x110 Boost + rear 12x148 Boost) Shimano Micro Spline:

Freehub:

Shimano Micro Spline

Gearing:

12-speed

Manufacturer Number:

W2BMXS302829US1

29" set (front 15x110 Boost + rear 12x148 Boost) SRAM XD:

Freehub:

SRAM XD

Gearing:

11-/12-speed

Manufacturer Number:

W2BXXS302829US1

Contents:

• 1 x BEAST Components XS30 Disc 6-bolt Boost Carbon 29" wheelset (front and rear wheel
• 1 x roll of rim tape
