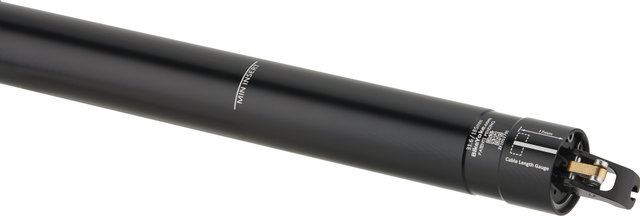

BikeYoke Revive 3.0 185 mm Adjustable Seatpost

Specifications:

Application:

All Mountain, Cross Country, Gravel

Stroke:

185 mm

Diameter:

30.9 mm, 31.6 mm

Length:

480 mm

Setback:

0 mm

Technical Information:

Actuation:

mechanical handlebar remote

Cable Routing:

internal

Cable Attachment:

cable clamp

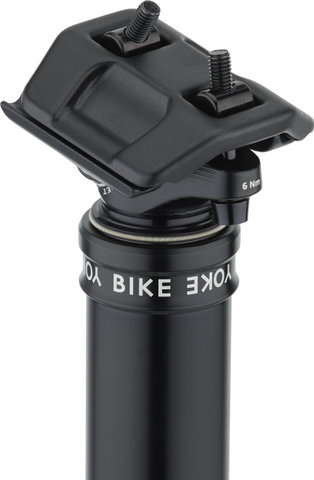

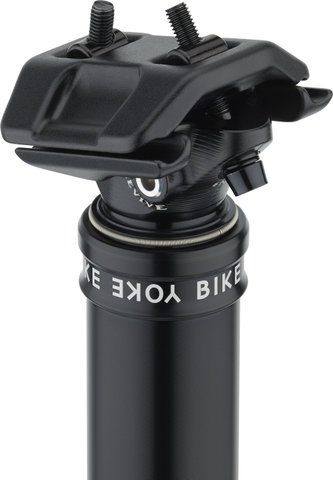

Clamp:

2-bolt clamp

Compatible Saddle Rails:

7 x 7 mm (standard), 7 x 9 mm (oval), 7 x 10 mm (oval)

Material:

aluminium

Compatibility:

• mechanical handlebar remote with cable clamp at the lever and min. 10 mm cable pull

Approved For:

Weight Limit:

115 kg

Insertion Depth (max.):

258 mm

Insertion Depth (min.):

100 mm

Features:

• mechanical adjustable seatpost with 185 mm infinitely variable stroke
• reset function for bleeding and eliminating vertical play without disassembly
• with 4 spacers to reduce the stroke in 5 mm steps
• one-piece upper telescopic tube made of 3-D forged aluminium
• 15 mm shorter overall length compared to the predecessor
• 360° rotatable internal actuation
• friction-optimized pull

Models:

Diameter:

30.9 mm

Length:

480 mm

Length of internal Actuation:

21 mm

Setback:

0 mm

Manufacturer Number:

REVT185309

Diameter:

31.6 mm

Length:

480 mm

Length of internal Actuation:

21 mm

Setback:

0 mm

Manufacturer Number:

REVT185316

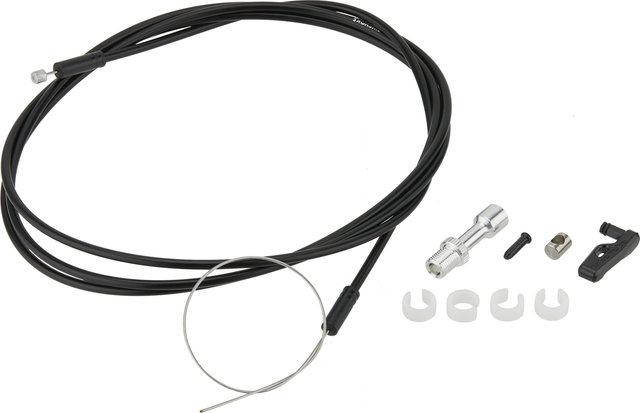

Contents:

• 1 x BikeYoke Revive 3.0 185 mm adjustable seatpost
• 1 x Outer casing 1600 mm
• 1 x Inner cable 1800 mm
• 1 x Cable barrel
• 2 x End cap for outer casing
• 1 x Ferrule for inner cable
• 1 x Air inflation adapter
• 1 x Quick-reset lever
• 4 x 5 mm spacers for stroke reduction

Order Together:

• Remotes from BikeYoke
