BikeYoke Revive 3.0 213 mm Variabel Seatpost

Specifications:

Application:

All Mountain, Enduro

Stroke:

213 mm

Diameter:

30.9 mm, 31.6 mm

Length:

545 mm

Setback:

0 mm

Technical Information:

Actuation:

mechanical handlebar remote

Cable Routing:

internal

Cable Attachment:

cable clamp

Clamp:

2-bolt clamp

Compatible Saddle Rails:

7 x 7 mm (standard), 7 x 9 mm (oval), 7 x 10 mm (oval)

Material:

aluminum

Compatibility:

• mechanical handlebar remote with cable clamp on the lever and min. 10 mm cable pull

Approved For:

Weight Limit:

115 kg

Insertion Depth (max.):

295 mm

Insertion Depth (min.):

130 mm

Features:

• mechanically actuated variabel seatpost with 213 mm continuously adjustable stroke
• reset function for bleeding and eliminating vertical play without disassembly
• with 4 spacers to reduce the stroke in 5 mm steps
• one-piece upper telescopic tube made of 3D-forged aluminum
• 15 mm shorter total length compared to the predecessor
• 360° rotatable internal actuation
• friction-optimized cable

Models:

Diameter:

30.9 mm

Length:

545 mm

Length of internal Actuation:

21 mm

Setback:

0 mm

Manufacturer Number:

REVT213309

Diameter:

31.6 mm

Length:

545 mm

Length of internal Actuation:

21 mm

Setback:

0 mm

Manufacturer Number:

REVT213316

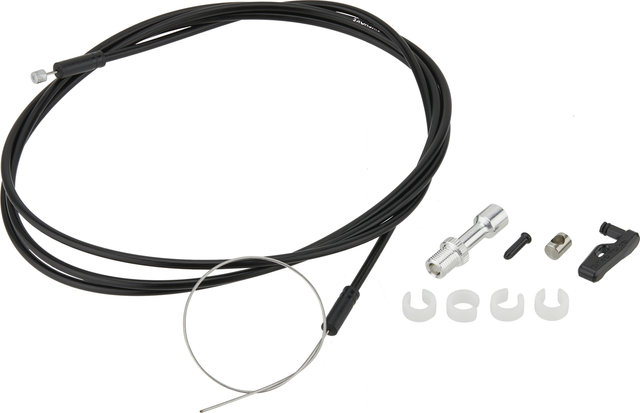

Contents:

• 1 x Variabel Seatpost BikeYoke Revive 3.0 213 mm
• 1 x Outer casing 1600 mm
• 1 x Inner cable 1800 mm
• 1 x Cable barrel
• 2 x Outer casing end caps
• 1 x Inner cable crimp sleeve
• 1 x Air inflation adapter
• 1 x Quick-Reset lever
• 4 x Spacer 5 mm for stroke reduction

Order Together:

• Remotes from BikeYoke
