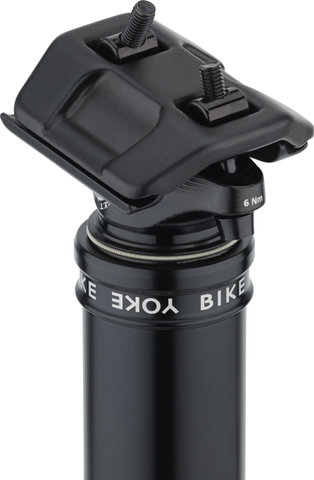

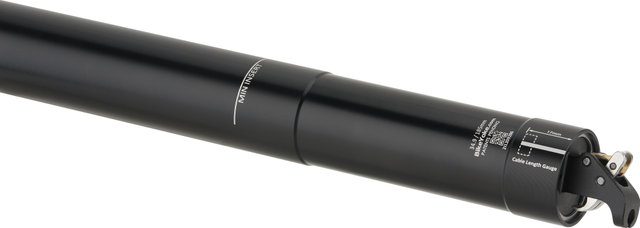

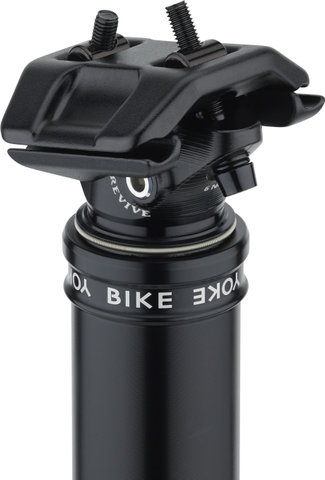

BikeYoke Revive 3.0 Max 34.9 185 mm Dropper Seatpost

Specifications:

Application:

All Mountain, Cross Country, Gravel

Stroke:

185 mm

Diameter:

34.9 mm

Length:

480 mm

Setback:

0 mm

Technical Information:

Actuation:

mechanical handlebar remote

Cable Routing:

internal

Cable Attachment:

cable clamp

Clamp:

2-bolt clamp

Compatible Saddle Rails:

7 x 7 mm (standard), 7 x 9 mm (oval), 7 x 10 mm (oval)

Material:

aluminium

Compatibility:

• mechanical handlebar remote with cable clamp at the lever and min. 10 mm cable pull

Approved For:

Weight Limit:

115 kg

Insertion Depth (max.):

258 mm

Insertion Depth (min.):

100 mm

Features:

• mechanically actuated dropper seatpost with 34.9 mm diameter and 185 mm continuously adjustable stroke
• Max version with 28 mm stanchion for more stability in large-volume frames
• reset function for bleeding and removing vertical play without disassembly
• with 4 spacers for reducing the stroke in 5 mm steps
• one-piece upper telescope tube made of 3D-forged aluminium
• 15 mm shorter total length compared to the predecessor
• 360° rotatable internal actuation
• friction-optimized pull

Models:

Diameter:

34.9 mm

Length:

480 mm

Length of internal actuation:

21 mm

Setback:

0 mm

Manufacturer Number:

REVT185349

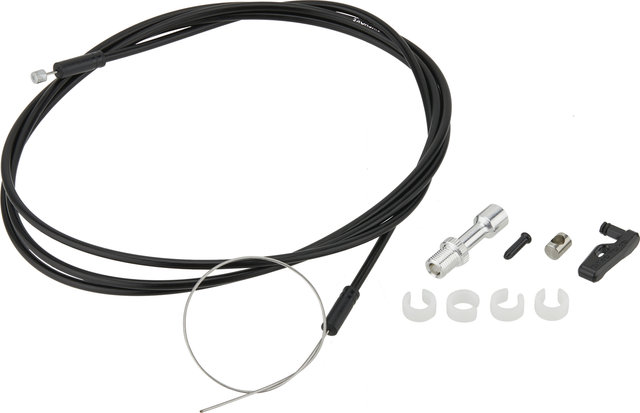

Contents:

• 1 x BikeYoke Revive 3.0 Max 34.9 185 mm dropper seatpost
• 1 x Outer casing 1600 mm
• 1 x Inner cable 1800 mm
• 1 x Cable barrel
• 2 x End cap for outer casing
• 1 x Crimp sleeve for inner cable
• 1 x Adapter for air filling
• 1 x Quick-Reset lever
• 4 x Spacer 5 mm for stroke reduction

Order Together:

• Remotes from BikeYoke
