BikeYoke Revive MAX 2.0 34.9 213 mm Dropper Post w/o Remote

The BikeYoke Revive MAX 2.0 dropper post with 213 mm travel for all-mountain bikers comes without a remote, is specially designed for seat tubes with 34.9 mm diameter and offers fluid, reliable function. The tubes are reinforced for increased stability, while the wall thickness has been optimised to ensure a comparatively low weight.

Specifications:

Application:

All Mountain

Travel:

213 mm

Diameter:

34.9 mm

Length:

550 mm

Setback:

0 mm

Technical Information:

Actuation:

mechanical handlebar remote

Cable Routing:

internal

Clamp:

2-bolt clamp

Compatible Saddle Rails:

7 x 7 mm (standard), 7 x 9 mm (oval)

Material:

aluminium

Approved For:

Weight Limit:

115 kg rider weight incl. equipment

Insertion Depth (max.):

295 mm (without base)

Insertion Depth (min.):

130 mm (without base)

Features:

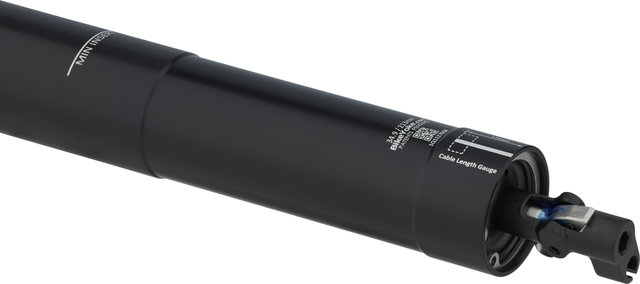

• 32 mm long, rotatable bottom actuator
• one-piece upper telescopic tube 3D forged for high stiffness
• corrosion resistant due to hard anodised sliding pin tip in the upper telescopic tube
• smooth actuation thanks to CNC-machined lever

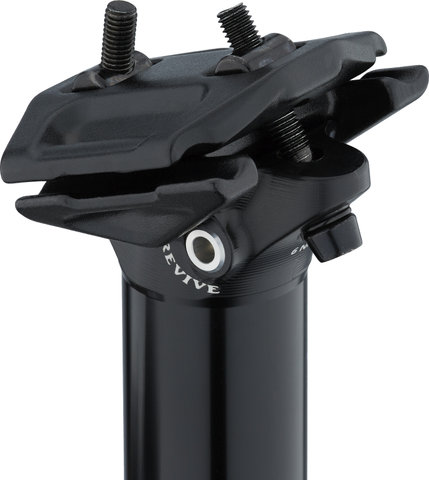

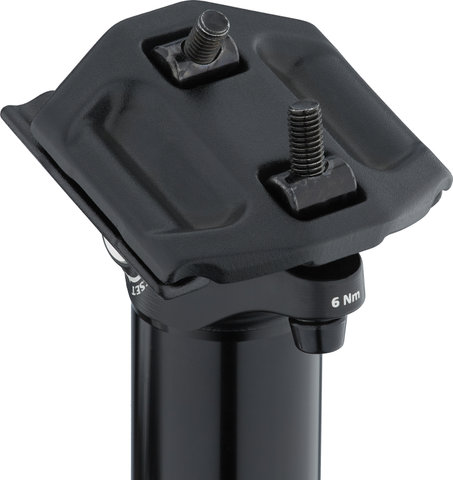

• easy saddle mounting due to improved clamp collar and two-piece saddle bolts with integrated conical washer
• simple two-chamber hydraulic system without floating piston
• quick venting thanks to Revive valve and quick-reset lever
• reliable function even at sub-zero temperatures
• also suitable for carbon saddle rails

Models:

34.9 mm / 485 mm / SB 0 mm:

Diameter:

34.9 mm

Length:

550 mm

Setback:

0 mm

Manufacturer Number:

REV213349

Contents:

• 1 x BikeYoke Revive MAX 2.0 34.9 seatpost
• 1 x BikeYoke 1500 mm cable housing
• 1 x BikeYoke cable, 1700 mm
• 2 x BikeYoke end caps for cable housing
• 1 x BikeYoke cable clamp
• 1 x BikeYoke air valve adapter
• 1 x BikeYoke Quick Reset lever
