Birzman Studio Tool Box

Birzman Studio Tool Box - Professional tool case with 37 functions

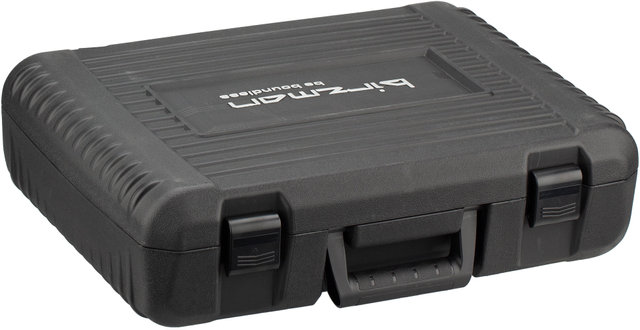

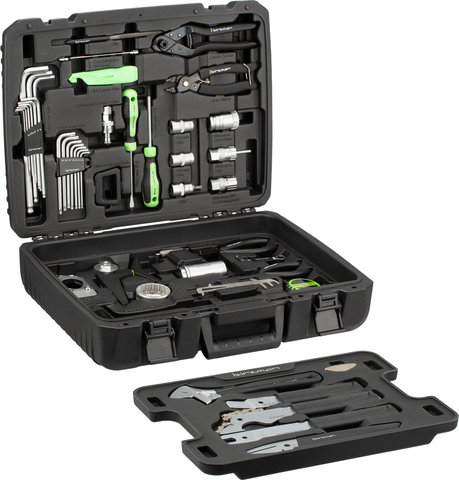

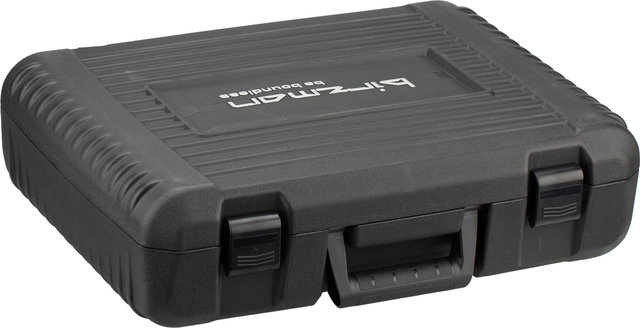

The Studio Tool Box is an extensively equipped tool box with over 35 high-performance tools from Birzman for your bike workshop. You'll find standard tools like hex and Torx wrenches, screwdrivers and pliers as well as special tools for crank, chain, cassette, pedals, brake, fork and wheel. Other practical helpers such as a Bowden cable cutter, rubber mallet, ratchet with sockets, a file and a tape measure complete the set. You can store everything safely and perfectly sorted in the heavy-duty plastic box. With the Studio Tool Box, you are well equipped for both simple maintenance work and more complex repairs.

Specifications:

Material:

Plastic (polyethylene), steel

Dimensions (LxWxH):

47 x 37 x 13 cm

Functions:

37

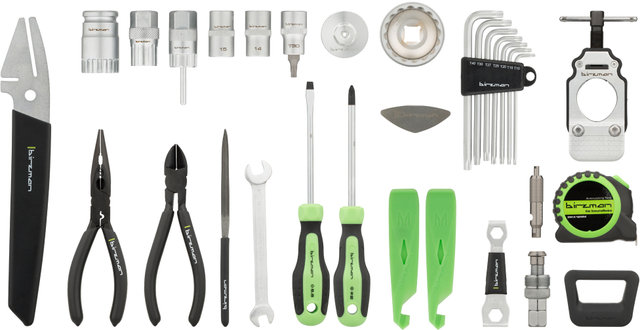

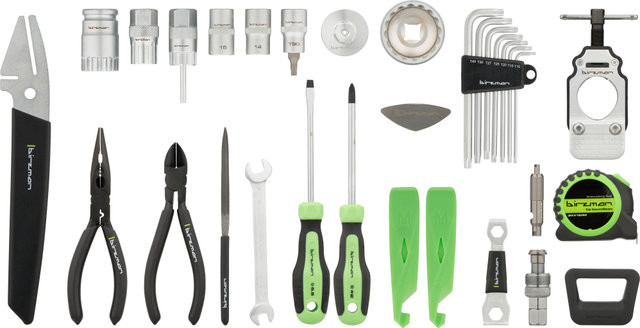

Functions:

• Torx wrench set: T10, T15, T20, T25, T27, T30, T40
• hex tool set: 1.5 mm, 2 mm, 2.5 mm, 3 mm, 4 mm, 5 mm, 6 mm, 8 mm, 10 mm
• flat head screwdriver: 5.5 mm
• Phillips screwdriver: #2
• chain wear indicator: 0.5%, 0.75%, 1%, for 1-speed to 12-speed chains
• Damselfly Universal chain tool: 5- to 12-speed, 1/8" and 3/32" singlespeed
• pliers for installing and removing master links
• bottom bracket tool for Shimano cartridge, 20 notches, 31.6 mm diameter
• bottom bracket tool for Shimano Hollowtech II, 16 grooves, 44 mm diameter, also suitable for Center Lock lockrings and Shimano adapter tools TL-FC24 and TL-FC25
• cassette removal tool for Shimano HG and SRAM, 12 grooves, 23.4 mm diameter, 5 mm guide pin diameter
• cassette removal tool for Shimano MF and Campagnolo, 12 grooves, 22.7 mm diameter
• chain whip: 7- to 12-speed, with lockring wrench for fixed gear
• crank removal tool for ISIS, Octalink and Square
• crank arm cap tool for SRAM 8-pin Hollowtech II and 16 mm hex socket
• chainring wrench: 9 mm + 10 mm hex
• pedal wrench: 15 mm
• brake piston reset tool
• brake rotor truing tool
• Disc Brake Gap Indicator brake caliper installation tool
• saw guide for steel and carbon fork stems: 1" , 1 1/8" , 1 1/4"
• star nut driving tool for 1" and 1 1/8" Ahead headset systems
• holding tool for bladed spokes with 1.0 to 2.0 mm width
• tyre lever set
• spoke wrench: 12G, 13G, 14G, 15G, Shimano 4.3 mm and 4.4 mm
• valve tool for Auto and Sclaverand valve cores and Sclaverand valve extensions
• bowden cable cutter with integrated awl for cut-off housing ends
• 1/2" ratchet
• 1/2" socket wrench T30
• 1/2" socket wrench 14 mm hexagon socket
• 1/2" socket wrench 15 mm hexagon socket
• file
• double open-end wrench: 8 mm + 10 mm
• fork wrench: 0 to 33 mm
• side cutting pliers: 152 mm (6" )
• needle nose pliers: 152 mm (6" )
• dead blow hammer: 305 mm (12" )
• measuring tape: 3 m (10 ft)

Features:

• extensively equipped tool box for the professional and hobby cyclist workshop
• 37 functions
• heavy-duty polyethylene case for safe transport
• precisely fitting recesses for each tool for more order

Manufacturer Number:

BM19-STUDIO-BOX

Contents:

• 1 x Birzman Studio Tool Box with contents
