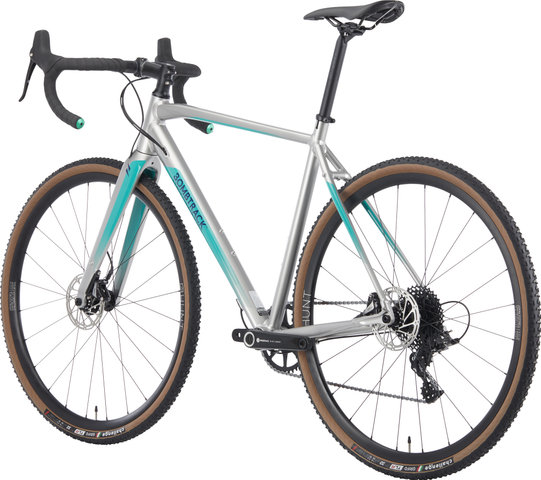

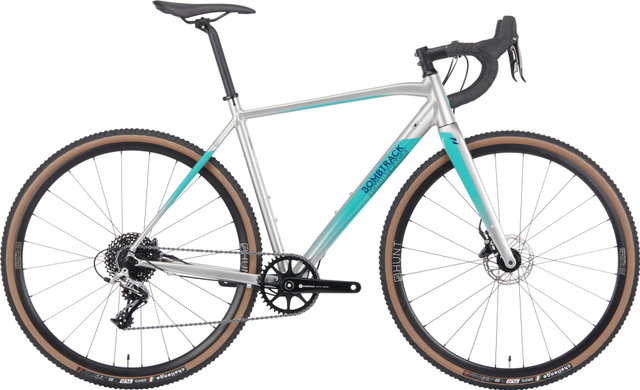

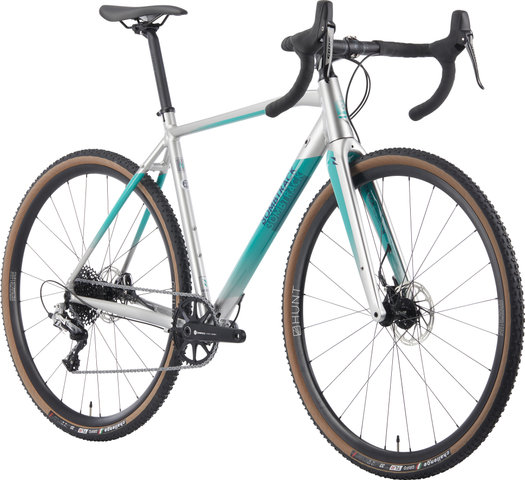

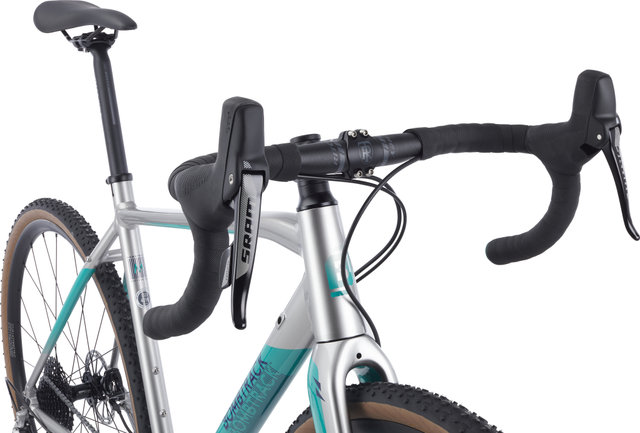

Bombtrack Tension 2 Cyclocross Bike

The Bombtrack Tension 2 Cyclocross Bike fulfils racing ambitions

The Tension 2 from Bombtrack impresses on narrow cyclocross courses with its secure handling. The lightweight aluminium frame with carbon fork and disc brakes is very durable and can be steered with agility through the course, even by beginners. With 11 gears and tubeless-ready tyres, your crosser is prepared for every situation. High-performance components from Ritchey and Hunt wheels round off this competitive build. On impassable sections, you can easily carry the approx. 8.9 kg bike on your shoulders thanks to the generous frame triangle. To prevent you and your bike from getting too dirty during training, you can attach mudgaurds or fenders to both the frame and the fork. It's not the time for cleaning and maintenance that sets the tone for the Tension 2, but your level of fun!

Specifications:

Application:

Cyclocross

Wheel Size:

28"

Sizes:

S, M, L, XL

Frame Material:

aluminium (6061-T6)

Fork Material:

Carbon

Components:

Frame:

Aluminium (6061-T6), double butted

Fork:

Carbon

Stem:

Ritchey Comp 4-Axis / Aluminium -6°

Handlebars:

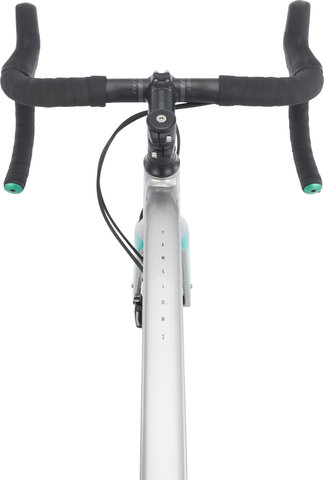

Ritchey Road Comp Streem III / 31.8 mm / 5° backsweep / 12° flare / 128 mm drop / 73 mm reach

Headset:

IS42/28.6|IS52/40 / 1.5" - 1 1/8" / Integrated Standard / sealed

Seatpost:

Ritchey Comp 2-Bolt / Aluminium / 27.2 mm x 300 mm

Saddle:

Bombtrack Comp

Crank:

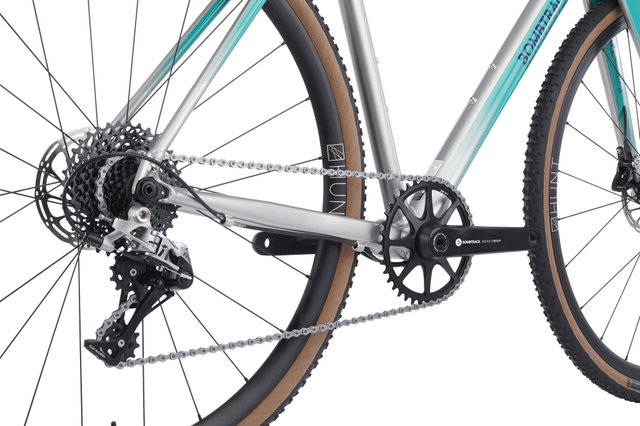

Bombtrack Lyer / Aluminium / Direct Mount / 40 Teeth

Pedals:

none

Brakes:

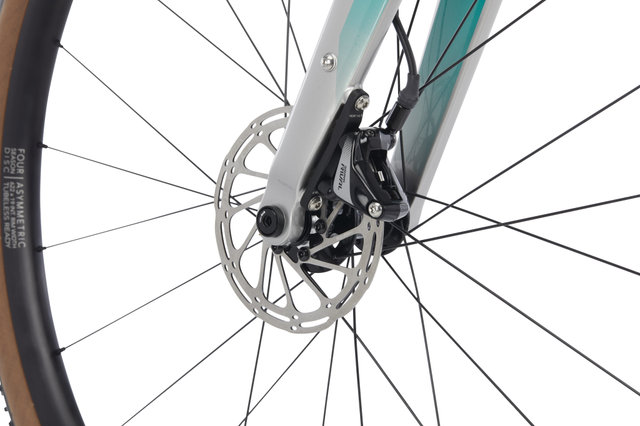

SRAM Rival / Flat Mount / hydraulic / 140 mm

Shift/Brake lever:

SRAM Rival / double tap / 1 x 11-speed

Rear Derailleur:

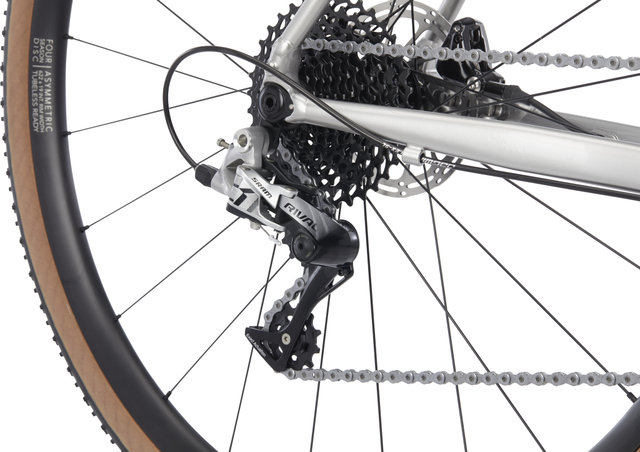

SRAM Rival, long cage

Cassette:

SRAM PF-22, 11-speed, 11-36 teeth

Chain:

KMC X11 EPT / 0.5" x 11/128" , 114 links

Wheels:

Hunt 2 Season / asymmetric / TLC / 6-bolt Disc / thru-axle

Tyres:

Vee XCX 120 tpi / Tubeless Ready / 32-584 (XS, S), Challenge Grifo / Tubeless Ready / 33-622 (M, L, XL)

Approved For:

Weight Limit:

115 kg (system weight)

Geometry:

S:

• Recommended Height: 160 - 171 cm
• Stack: 530 mm
• Reach: 366 mm
• Seat Tube Length: 490 mm
• Effective Top Tube Length: 523 mm
• Head Tube Length: 115 mm
• Chainstay Length: 410 mm
• Wheelbase: 979 mm
• BB Drop: 55 mm
• Standover Height: 757 mm
• Seat Tube Angle: 73.5°
• Head Tube Angle: 71.5°
• Stem Length: 80 mm
• Handlebar Width: 400 mm
• Crank Arm Length: 165 mm

M:

• Recommended Height: 170 - 181 cm
• Stack: 563 mm
• Reach: 380 mm
• Seat Tube Length: 530 mm
• Effective Top Tube Length: 552 mm
• Head Tube Length: 139 mm
• Chainstay Length: 425 mm
• Wheelbase: 1014 mm
• BB Drop: 65 mm
• Standover Height: 799 mm
• Seat Tube Angle: 73°
• Head Tube Angle: 71.5°
• Stem Length: 90 mm
• Handlebar Width: 420 mm
• Crank Arm Length: 170 mm

L:

• Recommended Height: 179 - 190 cm
• Stack: 587 mm
• Reach: 391 mm
• Seat Tube Length: 560 mm
• Effective Top Tube Length: 570 mm
• Head Tube Length: 162 mm
• Chainstay Length: 425 mm
• Wheelbase: 1028 mm
• BB Drop: 65 mm
• Standover Height: 825 mm
• Seat Tube Angle: 73°
• Head Tube Angle: 72°
• Stem Length: 100 mm
• Handlebar Width: 440 mm
• Crank Arm Length: 175 mm

XL:

• Recommended Height: 180 - 199 cm
• Stack: 603 mm
• Reach: 402 mm
• Seat Tube Length: 590 mm
• Effective Top Tube Length: 586 mm
• Head Tube Length: 179 mm
• Chainstay Length: 425 mm
• Wheelbase: 1044 mm
• BB Drop: 65 mm
• Standover Height: 848 mm
• Seat Tube Angle: 73°
• Head Tube Angle: 72°
• Stem Length: 100 mm
• Handlebar Width: 440 mm
• Crank Arm Length: 175 mm

Manufacturer Numbers:

S:

1125100221

M:

1125100321

L:

1125100421

XL:

1125100521

Shipping Notice:

The shipment is sent pre-assembled by a forwarding agent.
The delivery time is extended by 2-5 days, depending on the overall volume of orders.
For individual consultation, please contact our customer service team.

Contents:

• 1 x Bombtrack Tension 2 Cyclocross Bike
