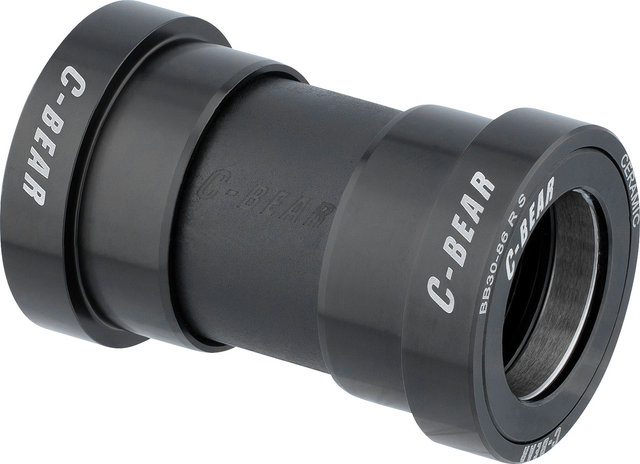

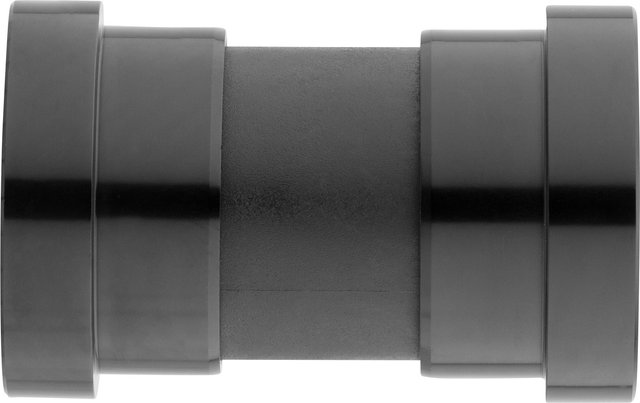

C-BEAR BB30 Rotor 30 mm Race Bottom Bracket, 42 x 68 mm

C-BEAR BB30 Rotor 30 mm Race bottom bracket - highly efficient thanks to ceramics

The C-BEAR BB30 Rotor 30 mm Race bottom bracket is compatible with many Rotor cranks, but also fits QUARQ or Easton. Thanks to its ceramic bearings, it impresses with extremely low friction and high efficiency. The bearing cups of this BB30 bottom bracket are precision machined from aluminium.

Specifications:

Application:

Road

Type:

BB30

Shell Diameter:

42 mm

Shell Width:

68 mm

Axle Diameter:

30 mm

Technical Information:

Bearings:

Ceramic

Bottom Bracket Cup Material:

aluminium

Compatibility:

• Rotor 3D+, 3DF, REX 1, REX 2, KAPIC, INPower, ALDHU, VEGAST
• QUARQ DZero, DFour, Red
• Easton EC90
• Cane Creek eeWings
• Race Face Next

Features:

• Race version, designed for driving on dry, clean roads
• very efficient, low rolling resistance
• CNC machined bearing cups

Technology:

Specific Applications
C-BEAR (Ceramic BEARings) Inner bearings are available with 2 different types of ceramic bearings. The Race bottom bracket bearings are designed for low rolling resistance and intended for use on dry roads. They placed in the top 3 for bottom bracket efficiency in a study by the independent Friction Facts Lab (with first place going to an unsealed bottom bracket for indoor use).

High Quality Bearing Cups
C-BEAR bearing cups are made of CNC precision-machined aluminium. C-BEAR adopted an anti-plastic stance as early as 2011/2012, when plastic additives were just becoming the norm in bottom bracket manufacturing. Metal housings mean higher accuracy, lower tolerances and avoiding flex and deformation.

Manufacturer Number:

bb-bb30-86-r

Contents:

• 1 x C-BEAR BB30 left bearing cup incl. ceramic bearings
• 1 x C-BEAR BB30 right bearing cup incl. ceramic bearings
