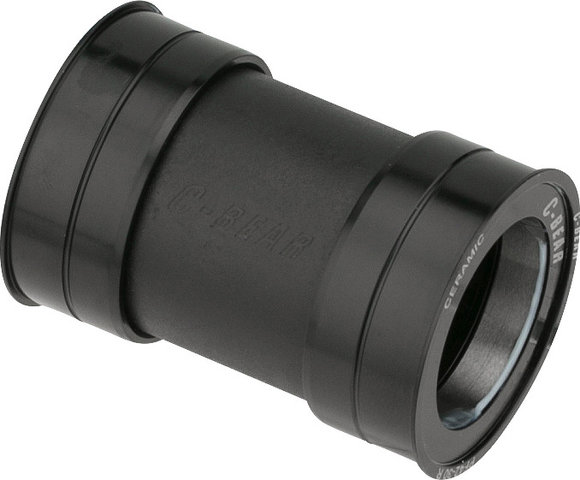

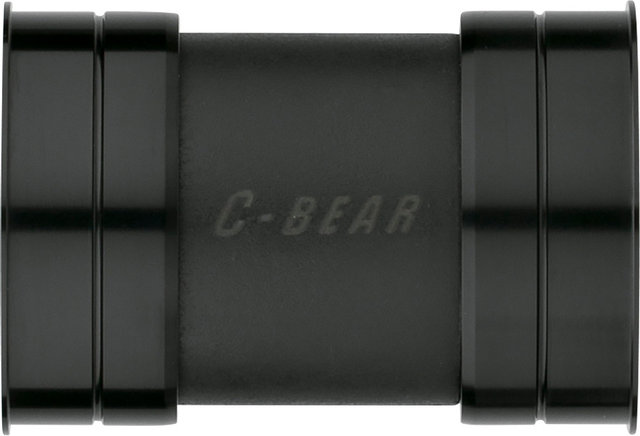

C-BEAR BB30 SRAM Race Bottom Bracket 42 x 68 mm

C-BEAR BB30 SRAM Race bottom bracket - high performance thanks to ceramic bearings

The C-BEAR BB30 SRAM Race bottom bracket works highly efficiently and with low rolling resistance thanks to ceramic bearings. Like all Race versions, it is intended for use on dry roads, also in races. Use this bottom bracket if you want to install a BB30 crank in a BB30 Road frame.

Specifications:

Application:

Road

Type:

BB30

Shell Diameter:

42 mm

Shell Width:

68 mm

Axle Diameter:

30 mm

Technical Information:

Bearings:

Ceramic

Bottom Bracket Cup Material:

aluminium

Compatibility:

• FSA BB30
• SRAM BB30
• Specialized Fact

Features:

• Race version, designed for driving on dry, clean roads
• very efficient, low rolling resistance
• CNC machined bearing cups

Technology:

Specific Applications
C-BEAR (Ceramic BEARings) Inner bearings are available with 2 different types of ceramic bearings. The Race bottom bracket bearings are designed for low rolling resistance and intended for use on dry roads. They placed in the top 3 for bottom bracket efficiency in a study by the independent Friction Facts Lab (with first place going to an unsealed bottom bracket for indoor use).

High Quality Bearing Cups
C-BEAR bearing cups are made of CNC precision-machined aluminium. C-BEAR adopted an anti-plastic stance as early as 2011/2012, when plastic additives were just becoming the norm in bottom bracket manufacturing. Metal housings mean higher accuracy, lower tolerances and avoiding flex and deformation.

Manufacturer Number:

bb-pf42-30-r

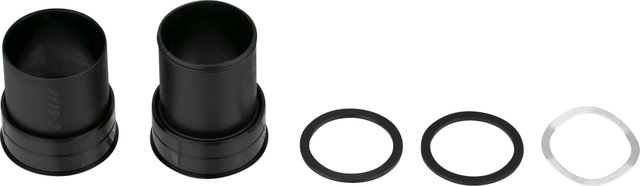

Contents:

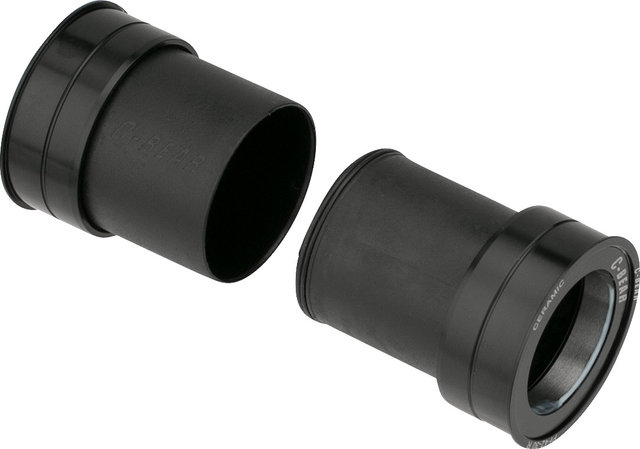

• 1 x C-BEAR BB30 left bearing cup incl. ceramic bearings
• 1 x C-BEAR BB30 right bearing cup incl. ceramic bearings
• 2 x spacer
• 1 x spring wave washer
