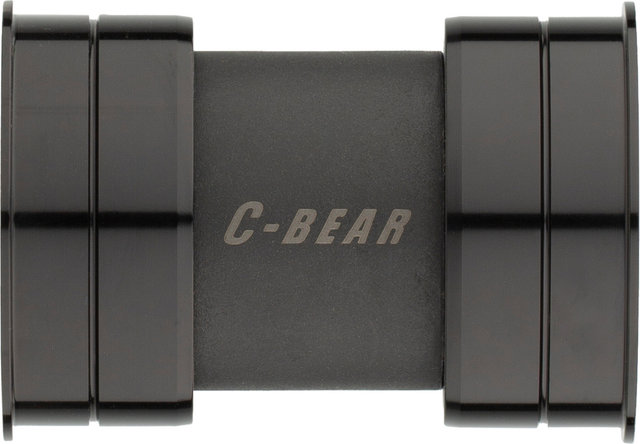

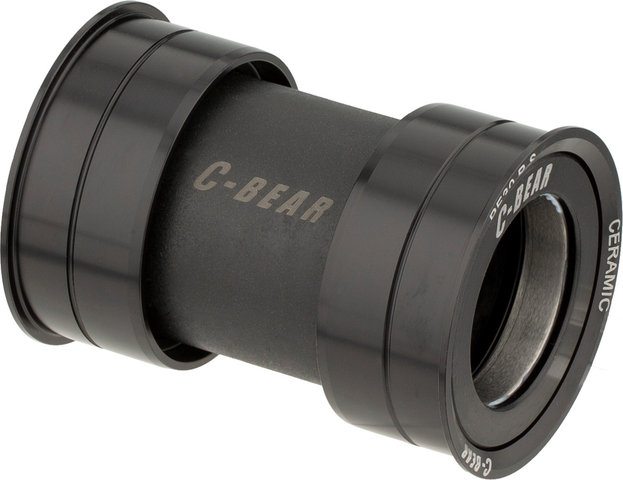

C-BEAR BB386EVO Rotor 30 mm Race Bottom Bracket, 46 x 86.5 mm

C-BEAR BB386EVO Rotor 30 mm Race bottom bracket - More performance thanks to ceramics

The C-BEAR BB386EVO Rotor 30 mm Race bottom bracket impresses with low-friction, highly efficient ceramic bearings and CNC-manufactured bearing cups. It has been optimised for on-road use. Use this bottom bracket with a 30 mm crank from Rotor or another manufacturer in combination with a BB386EVO frame.

Specifications:

Application:

Road

Type:

BB386EVO

Shell Diameter:

46 mm

Shell Width:

86.5 mm

Axle Diameter:

30 mm

Technical Information:

Bearings:

Ceramic

Bottom Bracket Cup Material:

aluminium

Compatibility:

• Rotor 3D+, 3DF, REX 1, REX 2, KAPIC, INPower, ALDHU, VEGAST
• QUARQ DZero, DFour, Red
• Easton EC90
• Cane Creek eeWings
• Race Face Next

Features:

• Race version, designed for driving on dry, clean roads
• very efficient, low rolling resistance
• CNC machined bearing cups

Technology:

Specific Applications
C-BEAR (Ceramic BEARings) Inner bearings are available with 2 different types of ceramic bearings. The Race bottom bracket bearings are designed for low rolling resistance and intended for use on dry roads. They placed in the top 3 for bottom bracket efficiency in a study by the independent Friction Facts Lab (with first place going to an unsealed bottom bracket for indoor use).

High Quality Bearing Cups
C-BEAR bearing cups are made of CNC precision-machined aluminium. C-BEAR adopted an anti-plastic stance as early as 2011/2012, when plastic additives were just becoming the norm in bottom bracket manufacturing. Metal housings mean higher accuracy, lower tolerances and avoiding flex and deformation.

Manufacturer Number:

bb-386-86-r

Contents:

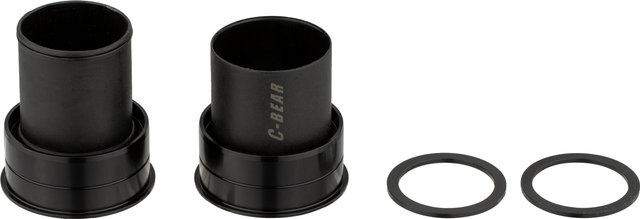

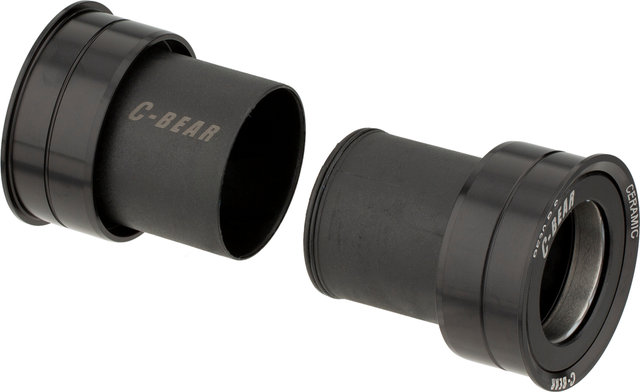

• 1 x C-BEAR BB386 left bearing cup incl. ceramic bearings
• 1 x C-BEAR BB386 right bearing cup incl. ceramic bearings
