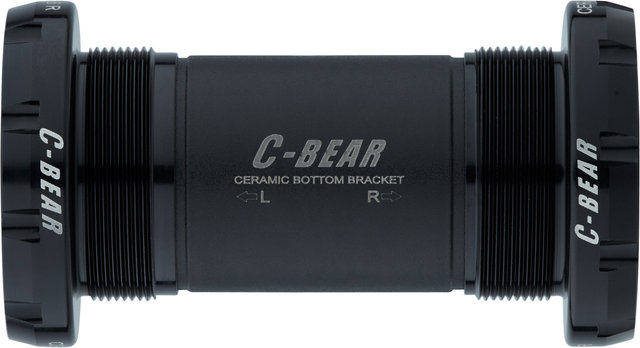

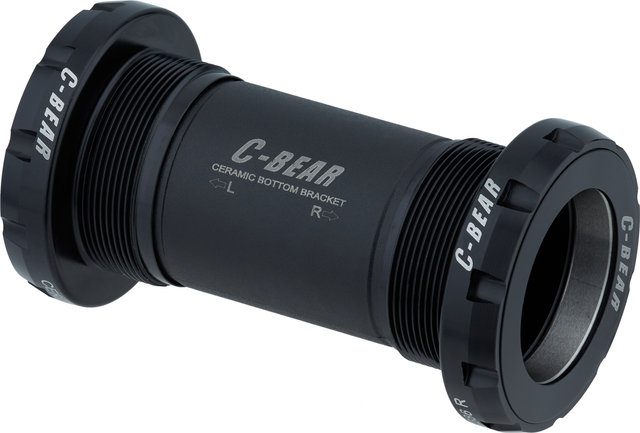

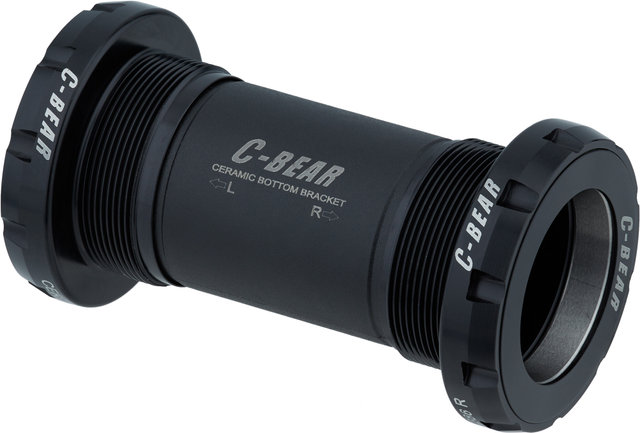

C-BEAR BSA BB386EVO Race Bottom Bracket

C-BEAR BSA BB386EVO Race Bottom Bracket - BSA 30 for road bike use

This C-BEAR Race bottom bracket allows the installation of a BB386EVO crankset or other 30 mm cranks into a BSA bottom bracket shell. It has extremely smooth-running, highly-efficient ceramic bearings designed for road bike use on dry roads. The bearing cups are made of aluminium, as per usual for C-BEAR.

Specifications:

Application:

Road

Type:

BSA

Shell Width:

68 mm

Axle Diameter:

30 mm

Technical Information:

Bearings:

Ceramic

Bottom Bracket Cup Material:

Aluminium

Compatibility:

• FSA BB386EVO
• Rotor 3D+, 3DF, REX 1, REX 2, KAPIC, INPower, ALDHU, VEGAST
• QUARQ DZero, DFour, Red
• Easton EC90
• Cane Creek eeWings
• Race Face Next

Features:

• Race version, designed for driving on dry, clean roads
• very efficient, low rolling resistance
• CNC machined bearing cups

Technology:

Specific Applications
C-BEAR (Ceramic BEARings) Inner bearings are available with 2 different types of ceramic bearings. The Race bottom bracket bearings are designed for low rolling resistance and intended for use on dry roads. They placed in the top 3 for bottom bracket efficiency in a study by the independent Friction Facts Lab (with first place going to an unsealed bottom bracket for indoor use).

High Quality Bearing Cups
C-BEAR bearing cups are made of CNC precision-machined aluminium. C-BEAR adopted an anti-plastic stance as early as 2011/2012, when plastic additives were just becoming the norm in bottom bracket manufacturing. Metal housing means higher precision, lower tolerances and avoiding flex and deformation.

Manufacturer Number:

bsa-386-r

Contents:

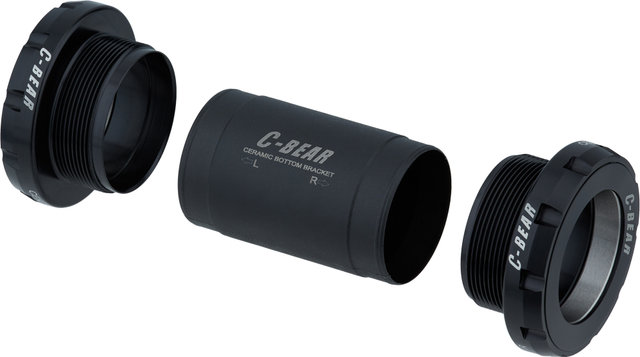

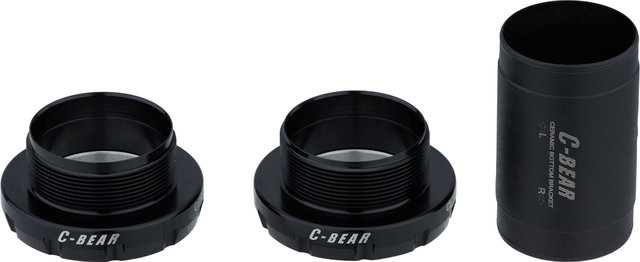

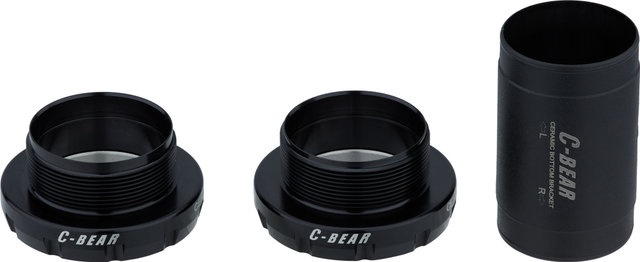

C-BEAR BSA BB386EVO Race Bottom Bracket

• 1 x bearing cup with ceramic bearings, left
• 1 x bearing cup with ceramic bearings, right
• 1 x FSA centre tube

Order Together:

• C-BEAR 2-in-1 bottom bracket tool for assembly
