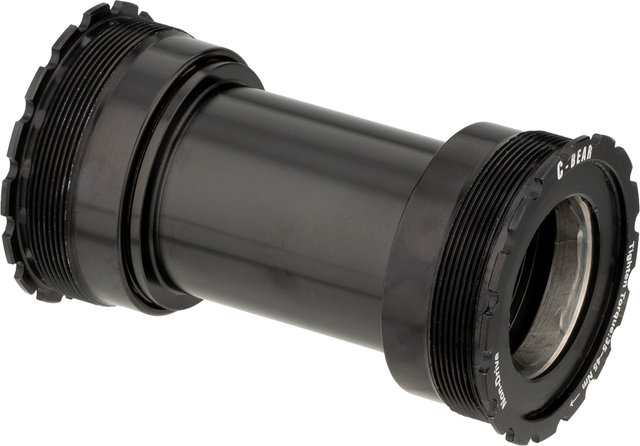

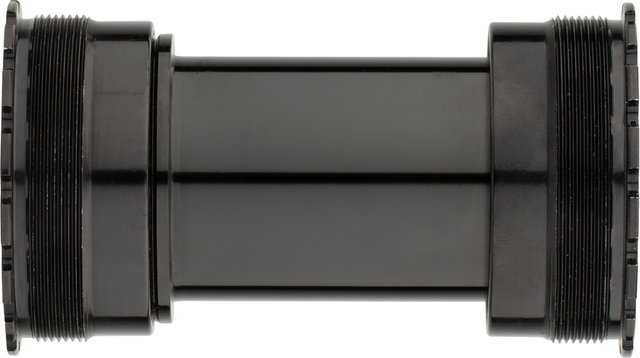

C-BEAR T47 Rotor 30 mm 86 Race Bottom Bracket

C-BEAR T47 Rotor 30 mm 86 Race bottom bracket - for 86.5 mm shell widths

The C-BEAR T47 Rotor 30 mm 86 Race bottom bracket fits T47 frames with 86 mm bottom bracket sleeves. It is compatible with cranks that have a 30 mm axle diameter. Thanks to its smooth-running ceramic bearings, it provides a lot of efficiency when used on (dry) roads.

Specifications:

Application:

Road

Type:

T47

Shell Width:

86.5 mm

Axle Diameter:

30 mm

Technical Information:

Bearings:

Ceramic

Bottom Bracket Cup Material:

aluminium

Compatibility:

• Rotor 3D+, 3DF, REX 1, REX 2, KAPIC, INPower, ALDHU, VEGAST
• QUARQ DZero, DFour, Red
• Easton EC90
• Cane Creek eeWings
• Race Face Next
• FSA EVO 386
• FSA EVO 392 (MTB)
• SRM Origin
• THM Clavicula
• Campagnolo Over Torque

Features:

• Race version, designed for riding on dry, clean roads
• very efficient, low rolling resistance
• CNC machined bearing cups

Note:

The Abbey Bike Tools Bottom Bracket Socket Single Sided tool is recommended for installation.

Technology:

Specific Applications
C-BEAR (Ceramic BEARings) Inner bearings are available with 2 different types of ceramic bearings. The Race bottom bracket bearings are designed for low rolling resistance and intended for use on dry roads. They placed in the top 3 for bottom bracket efficiency in a study by the independent Friction Facts Lab (with first place going to an unsealed bottom bracket for indoor use).

High Quality Bearing Cups
C-BEAR bearing cups are made of CNC precision-machined aluminium. C-BEAR adopted an anti-plastic stance as early as 2011/2012, when plastic additives were just becoming the norm in bottom bracket manufacturing. Metal housing means higher precision, lower tolerances and avoiding flex and deformation.

Manufacturer Number:

bb-t47-30-86-r

Contents:

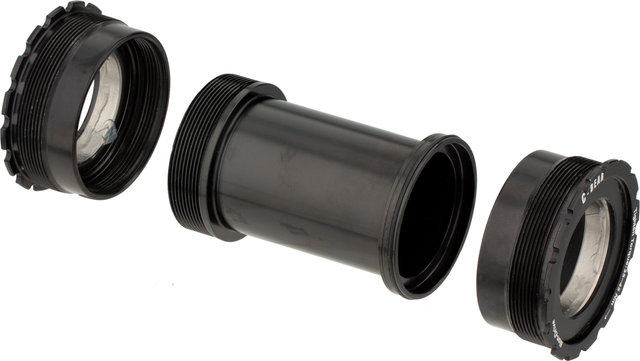

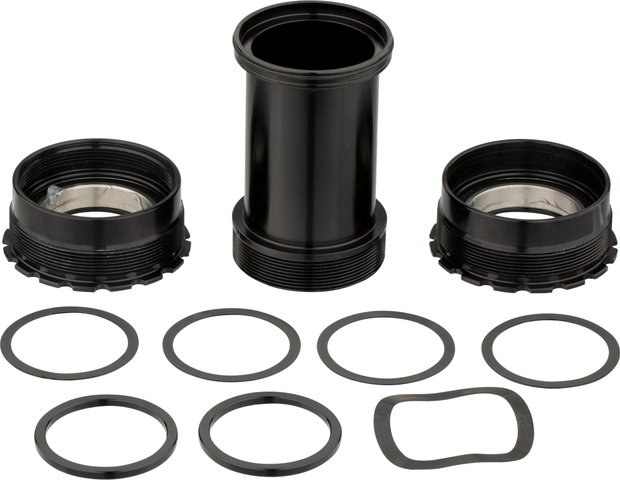

• 1 x C-BEAR T47 30 mm left bearing cup incl. ceramic bearings
• 1 x C-BEAR T47 30 mm right bearing cup incl. ceramic bearings

Order Together:

• Assembly tool (Abbey Bike Tools)
