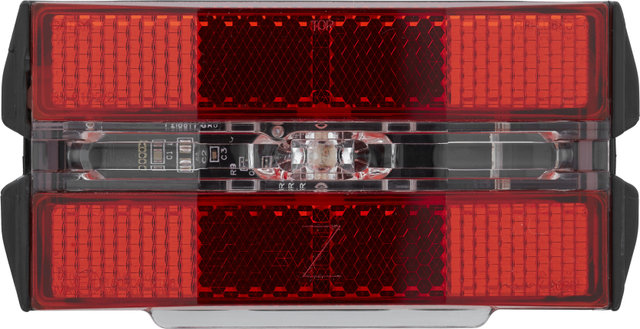

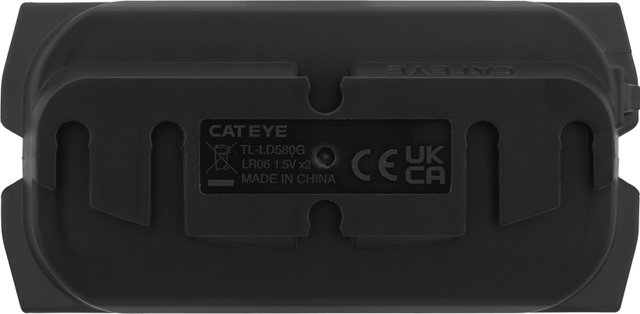

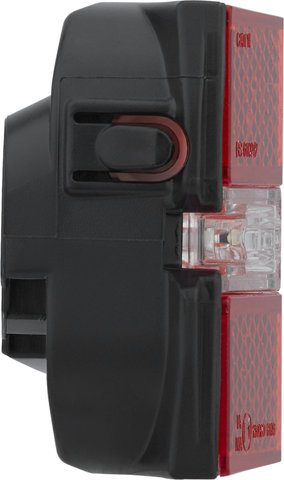

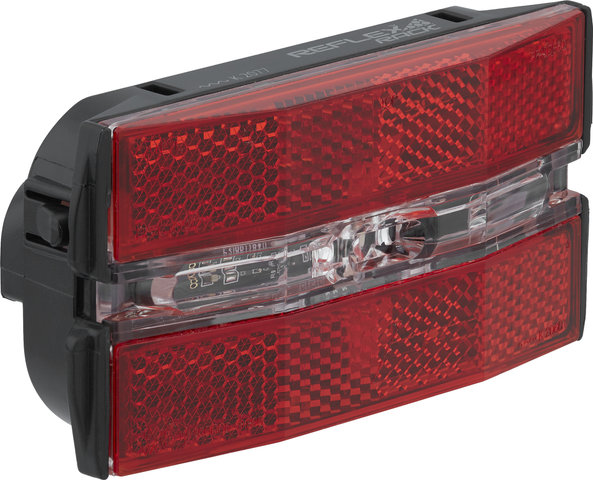

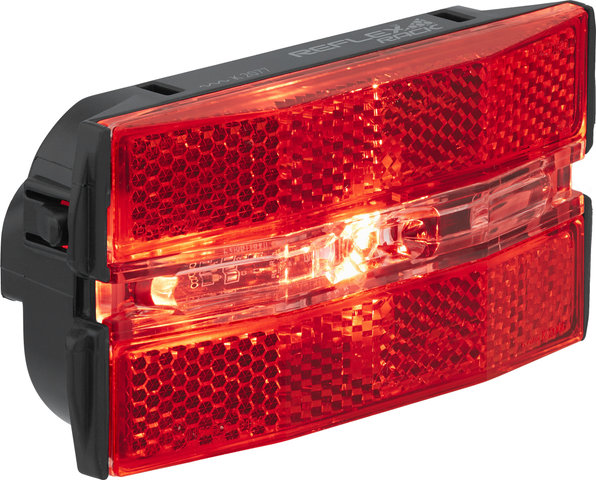

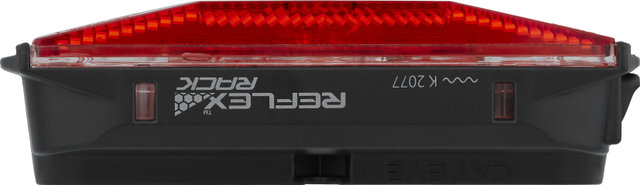

CATEYE Reflex Rack LED Rear Light - StVZO Approved

Information regarding the return of batteries and electrical equipment:

Information on the return and disposal of used batteries and electrical equipment can be found here.

Specifications:

Type:

rear light (red)

Mount:

Pannier rack (50 mm hole spacing, 80 mm hole spacing, 19 mm centre mount)

Light Source:

High Power SMD LED (1)

Burn Time:

220 hours

Power Source:

battery

Technical Information:

Power Indicator:

Yes (low battery)

Battery Type:

Alkaline manganese (AA), 2 count

Protection Rating:

Splash water (IPX 4)

Dimensions (H x W x D):

53 mm x 103 mm x 29 mm

Material:

composite

Switch:

On / Off

Approved For:

Street Use in Germany:

yes, for bicycles (according to §67 StVZO)

Check Number:

K~~2077

Features:

• battery-powered rear light with integrated Z-reflector for attaching to pannier racks
• up to 220 hours runtime
• splash-proof housing
• large, highly visible Z-reflector
• bolt mounts for different hole spacing
• easy battery replacement without tools

Manufacturer Number:

TL-LD580G

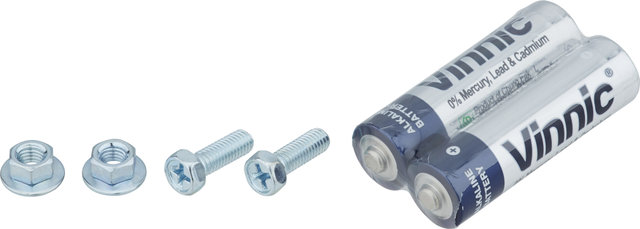

Contents:

• 1 x CATEYE Reflex Rack LED rear light
• 2 x bolts
• 2 x nuts
• 2 x AA batteries

• black-red: 106 g
