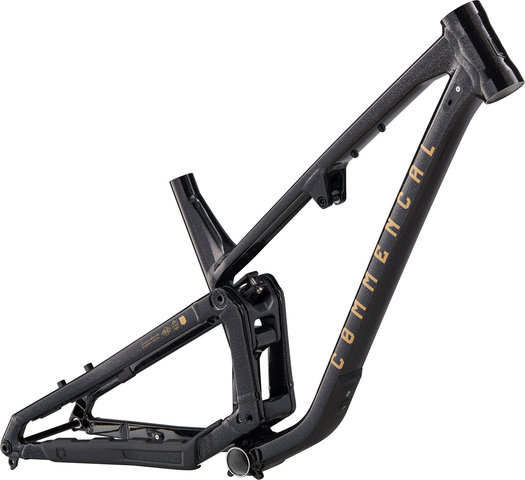

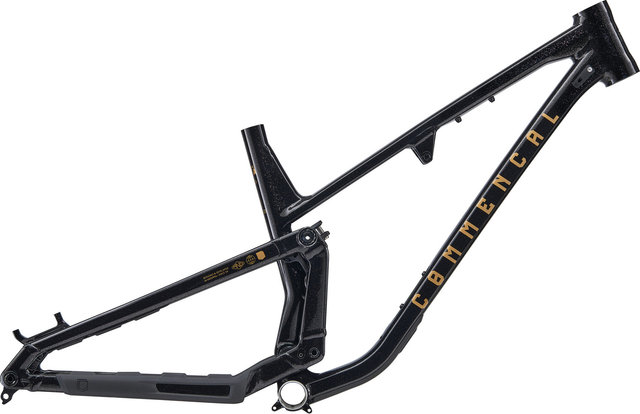

COMMENCAL Frame

Unleash your mountain biking potential with this cutting-edge Commencal Meta V5 29" aluminum frame, designed to cater to both men and women who crave adventure on the trails. Engineered for MTB and Enduro applications, this frame is compatible with a 1x chainring setup, ensuring a streamlined and efficient transmission. The frame's geometry accommodates a 29" wheel size, offering superior rollover capability and traction on rough terrains. With a rear triangle made from durable aluminum and a shock travel of 55.00 mm, it's built to absorb the bumps along the way, providing a smooth and controlled ride. The frame is optimized for a 1 1/8" - 1,5" tapered steerer tube, allowing for precise steering and stability at high speeds. It features a no front derailleur mount design, emphasizing its commitment to a simplified, high-performance 1x drivetrain system. The maximum disc brake size at the rear is 223 mm, ensuring powerful and reliable stopping power in all conditions. Additionally, the frame supports a disc PM8 (Direct Mount 203 mm) brake mount, further enhancing its braking capabilities. The housing width is set at 92 mm, fitting a BB92 bottom bracket standard for efficient power transfer and minimal energy loss. The rear shock mount is standard, with dimensions of 20 x 10 mm, compatible with a wide range of shocks. With a maximum fork length of 571 mm and a wheel standard of 12 x 148 mm (Boost), this frame is designed to accommodate modern components and deliver top-tier performance on the most challenging trails.

• High-performance MTB and Enduro frame designed for 29" wheels, featuring a 1 1/8" - 1.5" tapered steerer tube and aluminum construction for a blend of durability and lightweight efficiency.
• Compatible with both men's and women's specific setups, ensuring a versatile fit for a wide range of riders.
• Engineered with a 210mm shock length and 55mm shock travel, paired with a standard rear shock mount for optimal suspension performance.
• Supports a maximum disc brake size of 223mm at the rear, providing exceptional stopping power for all your riding needs.
• Incorporates a disc PM8 (Direct Mount 203mm) brake mount and is designed without a front derailleur mount, catering to modern 1x chainring setups for simplified shifting and reduced weight.
• Features a Boost 12 x 148 mm rear axle standard for increased wheel stiffness and better handling, along with a BB92 bottom bracket for a sleek, integrated look.

BB Drop:

25.7 mm

Head Tube Length:

120 mm

Seat Tube Angle:

78.2 ,77.7

Recommended Rider Height:

158 - 170 cm

Seat Tube Length:

380 mm

Chainstay Length:

435 mm,436 mm

Wheelbase:

1214 mm,1215 mm

Head Tube Angle:

64.5 ,64.1

Reach:

440 mm,435 mm

Stack:

628 mm,626 mm

Effective Top Tube Length:

571 mm,572 mm

Head Tube Angle:

64.5 ,64.1

Recommended Rider Height:

168 - -1180 cm

Seat Tube Length:

420 mm

Head Tube Length:

125 mm

Chainstay Length:

435 mm,436 mm

BB Drop:

20 mm,25.7 mm

Seat Tube Angle:

78.2 ,77.8

Stack:

633 mm,630 mm

Wheelbase:

1236 mm,1237 mm

Reach:

460 mm,455 mm

Effective Top Tube Length:

592 mm,593 mm

Chainstay Length:

440 mm,441 mm

Recommended Rider Height:

178 - 190 cm

Seat Tube Length:

440 mm

Head Tube Length:

130 mm

Stack:

637 mm,635 mm

Seat Tube Angle:

78.2 ,77.8

BB Drop:

20 mm,25.7 mm

Head Tube Angle:

64.5 ,64.1

Wheelbase:

1270 mm,1271 mm

Reach:

480 mm,475 mm

Effective Top Tube Length:

613 mm,614 mm

Head Tube Length:

135 mm

Stack:

642 mm,640 mm

Recommended Rider Height:

188 - 210 cm

Wheelbase:

1293 mm,1293 mm

Seat Tube Length:

460 mm

Head Tube Angle:

64.5 ,64.1

Chainstay Length:

440 mm,441 mm

Seat Tube Angle:

78.2 ,77.8

BB Drop:

20 mm,25.7 mm

Reach:

500 mm,495 mm

Effective Top Tube Length:

634 mm,635 mm

• glittery black/S/44 mm: 23CMETATR4S
• glittery black/M/44 mm: 23CMETATR4M
• glittery black/L/44 mm: 23CMETATR4L
• glittery black/XL/44 mm: 23CMETATR4XL

- 1 x Commencal Meta V5 29" frame
- 1 x thru-axle
