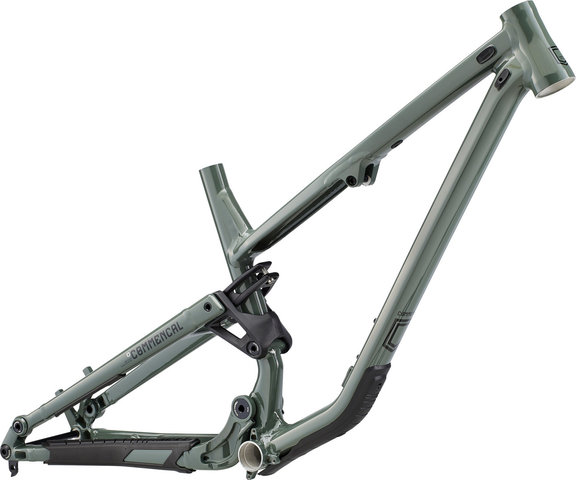

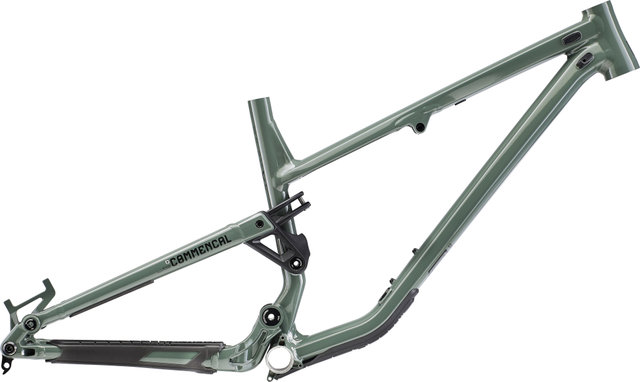

COMMENCAL Meta SX 29" / 27.5" Frame

The COMMENCAL Meta SX frame for a 29" front wheel and a 27.5" rear wheel is suitable for enduro trails and allows you to quickly and easily adjust the geometry in two settings with a flip chip.

Specifications:

Application:

Enduro

Wheel Size:

Scaled Sizing

Travel:

160 mm

Size:

S, M, L, XL

Front Triangle Material:

aluminium (6066)

Rear Triangle Material:

aluminium (6066)

Linkage Design:

supported single hinge

Technical Information:

Wheel Standard:

12 x 148 mm (Boost)

Axle Type:

12 mm thru-axle

Seatpost (Ø):

34.9 mm

Seatpost Clamp(Ø):

38.5 mm

Head Tube:

1 1/8" - 1.5" tapered

Headset:

ZS44 - ZS56 (top to bottom)

Recommended Fork Axle to Crown:

581 mm

Recommended Fork Travel:

170 mm

Bottom Bracket Standard:

Press Fit BB92

Shell Width:

92 mm

Chainstay Guide:

ISCG 05

Brake Mount:

disc PM8 (direct mount 200 mm)

Front Derailleur Mount:

not possible

Rear Shock Eye-to-Eye Measurement:

230 mm

Rear Shock Stroke:

62.5 mm

Rear Shock Bushing Width:

20 mm x 10 mm / 20 mm x 10 mm

Bottle Cage Mounts:

1

Approved For:

Rotor Size (max.):

220 mm

Tyre Size (max.):

68 mm (width)

Chainrings:

1x

Fork Axle to Crown Size (max.):

591 mm

Features:

• with flip chip on the damper mount to adjust the geometry
• for 29" front wheel, for smooth rolling and fun climbing
• for 27.5" rear wheel, for responsive handling
• central riding position
• easy maintenance of the internally routed cables through easy access
• optimised weld seams
• sealed frame openings
• double row Enduro Bearings for high stiffness and reliability

Geometry:

(based on a fork axle to crown length of 586 mm)
S:

Recommended Height:

158 - 170 cm

Stack:

633 mm (low), 630 mm (high)

Reach:

436 mm (low), 440 mm (high)

Seat Tube Length:

380 mm

Effective Top Tube Length:

570 mm (low), 569 mm (high)

Head Tube Length:

115 mm

Chainstay Length:

443 mm (low), 442 mm (high)

Wheelbase:

1232 mm (low), 1231 mm (high)

BB Drop:

-1.5 mm (low), +4 mm (high)

Seat Tube Angle:

78.1° (low), 78.5° (high)

Head Tube Angle:

63.6° (low), 64° (high)

M:

Recommended Height:

168 - 180 cm

Stack:

637 mm (low), 634 mm (high)

Reach:

456 mm (low), 460 mm (high)

Seat Tube Length:

420 mm

Effective Top Tube Length:

591 mm (low), 590 mm (high)

Head Tube Length:

120 mm

Chainstay Length:

443 mm (low), 442 mm (high)

Wheelbase:

1254 mm (low), 1253 mm (high)

BB Drop:

-1.5 mm (low), +4 mm (high)

Seat Tube Angle:

78.1° (low), 78.5° (high)

Head Tube Angle:

63.6° (low), 64° (high)

L:

Recommended Height:

178 - 190 cm

Stack:

642 mm (low), 639 mm (high)

Reach:

481 mm (low), 485 mm (high)

Seat Tube Length:

440 mm

Effective Top Tube Length:

617 mm (low), 616 mm (high)

Head Tube Length:

125 mm

Chainstay Length:

443 mm (low), 442 mm (high)

Wheelbase:

1286 mm (low), 1285 mm (high)

BB Drop:

-1.5 mm (low), +4 mm (high)

Seat Tube Angle:

78.1° (low), 78.5° (high)

Head Tube Angle:

63.6° (low), 64° (high)

XL:

Recommended Height:

188 - 210 cm

Stack:

647 mm (low), 643 mm (high)

Reach:

506 mm (low), 510 mm (high)

Seat Tube Length:

460 mm

Effective Top Tube Length:

644 mm (low), 643 mm (high)

Head Tube Length:

130 mm

Chainstay Length:

443 mm (low), 442 mm (high)

Wheelbase:

1313 mm (low), 1312 mm (high)

BB Drop:

-1.5 mm (low), +4 mm (high)

Seat Tube Angle:

78.1° (low), 78.5° (high)

Head Tube Angle:

63.6° (low), 64° (high)

Manufacturer Number:

22CMETAAM

Contents:

• 1 x COMMENCAL Meta SX 29" / 27.5" Frame
