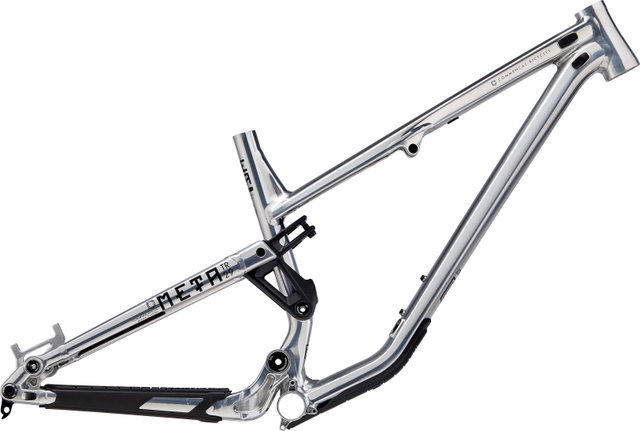

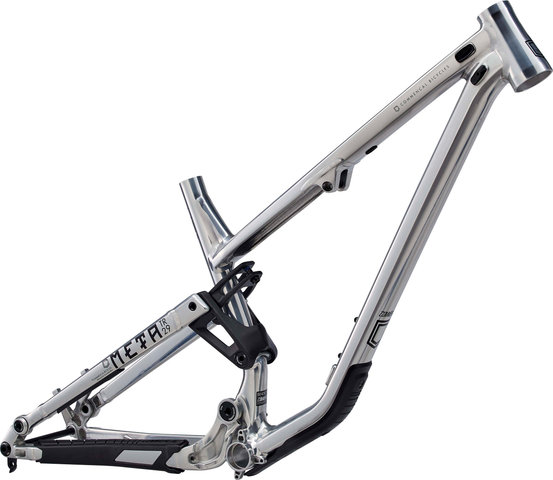

COMMENCAL Meta TR 29" frame

The Meta TR 29" Frame from COMMENCAL conquers the trails with you

The COMMENCAL Meta TR frame for 29" forms the perfect basis for a playful, dynamic trail bike that will bring you pleasure both downhill and uphill. Once you reach the peak, you can dive straight on into mastering difficult descents. Playful kinematics make the Meta TR dynamic, while double-row bearings on the frame prevent loss of rigidity at the joints. The result is a bike that delivers high performance both uphill and downhill, and won't let you down on difficult passages.

Specifications:

Application:

All Mountain, Enduro

Wheel Size:

29"

Travel:

140 mm

Size:

S, M, L, XL

Front Triangle Material:

aluminium (6066)

Rear Triangle Material:

aluminium (6066)

Linkage Design:

supported single hinge

Technical Information:

Wheel Standard:

12 x 148 mm (Boost)

Axle Type:

12 mm thru-axle

Seatpost (Ø):

34.9 mm

Seatpost Clamp(Ø):

38.5 mm

Head Tube:

1 1/8" - 1.5" tapered

Headset:

ZS44 - ZS56 (top to bottom)

Recommended Fork Axle to Crown:

551 mm

Recommended Fork Travel:

150 - 160 mm

Bottom Bracket Standard:

Press Fit BB92

Shell Width:

92 mm

Chainstay Guide:

ISCG 05

Brake Mount:

disc PM8 (direct mount 200 mm)

Front Derailleur Mount:

not possible

Rear Shock Eye-to-Eye Measurement:

210 mm

Rear Shock Stroke:

55 mm

Rear Shock Bushing Width:

20 mm x 10 mm / 20 mm x 10 mm

Bottle Cage Mounts:

1

Approved For:

Rotor Size (max.):

220 mm

Tyre Size (max.):

65 mm (width)

Chainrings:

1x

Fork Axle to Crown Size (max.):

571 mm

Features:

• optimised linkage design for less fatigue
• compact chainstays for heel clearance
• seat tube compatible with dropper seatposts with long travel
• optimised cable routing
• simple bottle cage assembly
• designed for short stems and short fork offset
• high manoeuvrability thanks to flatter head tube angle
• stability through longer reach
• steeper seat tube angle for a good uphill riding position
• enduro bearings for high rigidity and performance

Colour Index:

high polished:

silver grey

Geometry:

(based on a fork axle to crown length of 561 mm)
S:

• recommended body height: 151 - 170 cm
• stack: 626 mm
• reach: 440 mm
• Seat Tube Length: 380 mm
• effective top tube length: 566 mm
• Head Tube Length: 110 mm
• Chainstay Length: 435 mm
• Wheelbase: 1203 mm
• BB Drop: 33 mm
• Seat Tube Angle: 78.6°
• Head Tube Angle: 64.5°

M:

• recommended body height: 168 - 180 cm
• stack: 630 mm
• reach: 465 mm
• Seat Tube Length: 420 mm
• effective top tube length: 592 mm
• Head Tube Length: 115 mm
• Chainstay Length: 435 mm
• Wheelbase: 1230 mm
• BB Drop: 33 mm
• Seat Tube Angle: 78.6°
• Head Tube Angle: 64.5°

L:

• recommended body height: 178 - 190 cm
• stack: 634 mm
• reach: 490 mm
• Seat Tube Length: 440 mm
• effective top tube length: 618 mm
• Head Tube Length: 120 mm
• Chainstay Length: 435 mm
• Wheelbase: 1257 mm
• BB Drop: 33 mm
• Seat Tube Angle: 78.6°
• Head Tube Angle: 64.5°

XL:

• recommended body height: 188 - 210 cm
• stack: 638 mm
• reach: 515 mm
• Seat Tube Length: 460 mm
• effective top tube length: 644 mm
• Head Tube Length: 125 mm
• Chainstay Length: 435 mm
• Wheelbase: 1284 mm
• BB Drop: 33 mm
• Seat Tube Angle: 78.6°
• Head Tube Angle: 64.5°

Manufacturer Numbers:

high polished / S:

21CMETATR29HPS

high polished / M:

21CMETATR29HPM

high polished / L:

21CMETATR29HPL

high polished / XL:

21CMETATR29HPXL

heritage green / S:

21CMETATR29GNS

heritage green / M:

21CMETATR29GNM

heritage green / L:

21CMETATR29GNL

heritage green / XL:

21CMETATR29GNXL

gun metal / S:

21CMETATR29GMS

gun metal / M:

21CMETATR29GMM

gun metal / L:

21CMETATR29GML

gun metal / XL:

21CMETATR29GMXL

Contents:

• 1 x COMMENCAL Meta TR Race 29" frame
