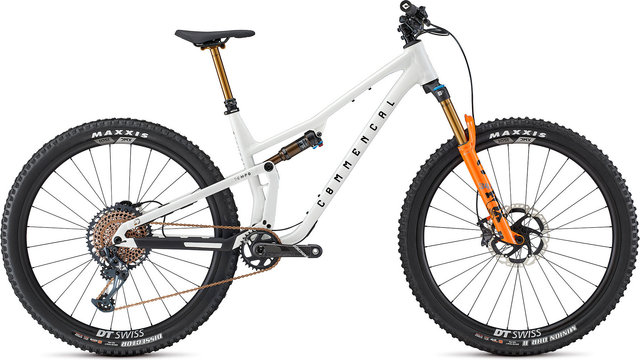

COMMENCAL T.E.M.P.O. Ltd 29" Mountain Bike

The COMMENCAL T.E.M.P.O. 29" mountain bike in the LTD edition really lives up to its name

Specifications:

Application:

All Mountain

Wheel Size:

29"

Front Travel:

140 mm

Rear Travel:

125 mm

Sizes:

S, M, L, XL

Front Triangle Material:

aluminium (6066)

Rear Triangle Material:

aluminium (6066)

Components:

Frame:

COMMENCAL T.E.M.P.O., triple butted, 12 x 148 mm (Boost)

Fork:

Fox Racing Shox 34 Factory, Float, GRIP2 damping, HSR, LSR, HSC, LSC, 1 token, 51 mm offset, 15 x 110 mm (Boost)

Stem:

Renthal Apex, 40 mm, 31.8 mm

Handlebars:

Renthal Fatbar Lite (S, M), Renthal Fatbar (L, XL), 31,8 mm, 30 mm rise, aluminium (6061)

Grips:

ODI Elite Motion

Rear Shock:

Fox Racing Shox Float DPS Factory, 210 x 50 mm, Rebound, 3 position, Evol LV

Remote System:

none

Headset:

Acros ZS56 - ZS56, sealed bearings, integrated cable routing

Seatpost:

Fox Racing Shox Transfer Factory, 31.6 mm, travel: 150 mm (S), 175 mm (M), 200 mm (L, XL)

Saddle:

Fizik Terra Alpaca X5, 145 mm, S-Alloy rails

Crank:

SRAM Descendant Carbon, 170.0 mm, 32 teeth Narrow-Wide chainring

Pedals:

none

Brakes:

Shimano XT, 4 pistons, I-Spec EV, resin brake pads, with Shimano brake rotors RT-M905, 6-bolt, 203 mm / 180 mm

Shift Lever:

SRAM X01 Eagle, 12-speed

Rear Derailleur:

SRAM X01 Eagle, 12-speed

Cassette:

SRAM XG-1299, 10-52 teeth, copper

Chain:

SRAM XX1 Eagle, 12-speed, copper

Rims:

DT Swiss XMC 1501, 28 holes, 30 mm jaw width

Spokes:

DT Swiss 240, Straightpull, 2.0 - 1.6 - 2.0 mm, double butted, stainless steel, black

Front Hub:

DT Swiss 240, 28-bolt, sealed bearings

Rear Hub:

DT Swiss, 28 holes, sealed bearings, Ratchet EXP System 36 T

Front Tyre:

Maxxis DHR II, 29 x 2.4" , WT, 3C MaxxGrip, EXO, Tubeless Ready

Rear Tyre:

Maxxis Dissector, 29 x 2.4" , WT, Dual Compound, EXO, Tubeless Ready

Approved For:

Rotor Size (max.):

200 mm (rear)

Tyre Size (max.):

29 x 2.4" (rear wheel)

Chainrings:

1x

Fork Axle to Crown Size (max.):

561 mm

Features:

• All-Mountain-Bike with Fox Factory suspension, Shimano XT brakes and SRAM XX1 Eagle drivetrain for trails of all kinds
• Virtual Contact System: virtual pivot point for excellent dynamics and lots of comfort
• geometry made for efficient climbs and uncompromising descents
• Fox Factory suspension fork with extensive adjustment options
• Fox DPS shock tune to suit the bike
• weight-optimised DT Swiss wheels with Ratchet-EXP system
• Shimano XT brakes with Freeza brake rotors for long descents
• SRAM X01-Eagle drivetrain with high bandwidth in copper colouring
• 2 bottle cage mounts: on the down tube for drinks bottle, at the bottom of the top tube for accessory bag

Geometry:

Recommended Height:

158 - 170 cm

Stack:

624 mm

Reach:

430 mm

Seat Tube Length:

380 mm

Effective Top Tube Length:

579 mm

Head Tube Length:

115 mm

Chainstay Length:

435 mm

Wheelbase:

1190 mm

BB Drop:

35 mm

Seat Tube Angle:

76.6°

Head Tube Angle:

65.5°

Handlebar Width:

760 mm

Recommended Height:

168 - 180 cm

Stack:

628.5 mm

Reach:

450 mm

Seat Tube Length:

420 mm

Effective Top Tube Length:

600 mm

Head Tube Length:

120 mm

Chainstay Length:

435 mm

Wheelbase:

1211.5 mm

BB Drop:

35 mm

Seat Tube Angle:

76.6°

Head Tube Angle:

65.5°

Handlebar Width:

760 mm

Recommended Height:

178 - 190 cm

Stack:

633 mm

Reach:

470 mm

Seat Tube Length:

440 mm

Effective Top Tube Length:

621.5 mm

Head Tube Length:

125 mm

Chainstay Length:

440 mm

Wheelbase:

1238.5 mm

BB Drop:

35 mm

Seat Tube Angle:

76.6°

Head Tube Angle:

65.5°

Handlebar Width:

800 mm

Recommended Height:

188 - 210 cm

Stack:

637.5 mm

Reach:

490 mm

Seat Tube Length:

460 mm

Effective Top Tube Length:

642.9 mm

Head Tube Length:

130 mm

Chainstay Length:

440 mm

Wheelbase:

1261 mm

BB Drop:

35 mm

Seat Tube Angle:

76.6°

Head Tube Angle:

65.5°

Handlebar Width:

800 mm

Manufacturer Number:

Shipping Notice:

Contents:

• 1 x COMMENCAL T.E.M.P.O. Ltd 29" mountain bike
