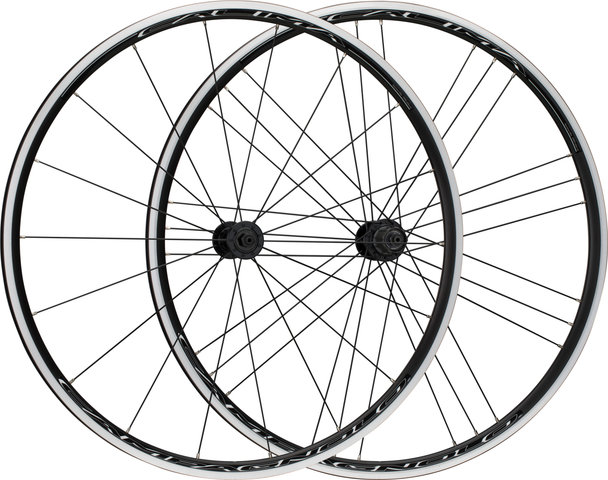

Campagnolo Calima G3 Wheelset
Item number: 62616
The Calima G3 is a wheel that is popular with cyclists and professionals. Light enough to tackle rough climbs, yet tough and flexible to withstand the toughest roads.
* When weighing more than 82 kg (180 lb) shorter inspection intervals are recommended.
Campagnolo developed a lacing pattern that, compared to a conventional wheel, allows improved energy transfer, reduces the stress on the spokes on the right side and increases lateral stiffness. In G3™ geometry, the right side of the rear wheel has twice the number of spokes compared to the left side.
The advantages of the G3™ system are amazing: improved transmission of the drive force, increased lateral stiffness, reduction of spoke tension on the rear wheel. Thanks to the G3 system™, which compensates for the forces acting on the 2 sides of the wheel, vibrations are eliminated even for people with heavier weights.
Specifications:
- Application:
- Road
- Wheel Size:
- 28"
- Tyre Type:
- clincher tyre
- Number of Spokes:
- 18 (front), 27 (rear)
- Brake Type:
- rim brake
- Tubeless System:
- none
Freehub Compatibility:
- Shimano Freehub:
- 8/9/10/11-speed Shimano/SRAM (Road)
- Campy Freehub:
- 9-/10-/11-/12-speed Campagnolo
- Note:
- Installing 8-/9-/10-speed cassettes on Shimano freehub bodies requires a 1.85 mm spacer.

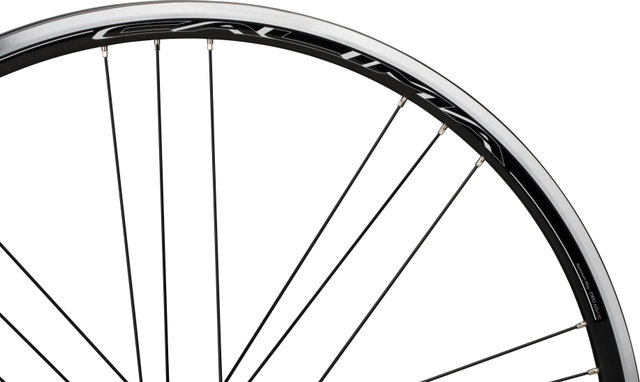

Technical Information - Rim:
- Dimensions (ETRTO):
- 17-622
- Inner Width:
- 17 mm
- Outer Width:
- 22 mm
- Depth:
- 24 mm
- Valve Hole Diameter:
- SV (6.5 mm)
- Rim Material:
- Aluminium

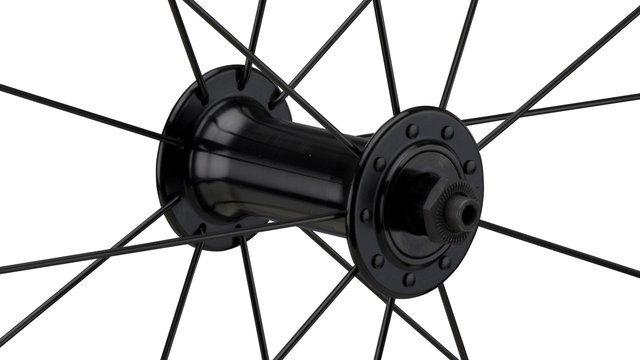

Technical Information - Front Hub:
- Over Locknut Dimension:
- 9 x 100 mm quick release
- Bearings:
- ball (steel), double sealed
- Body Material:
- Aluminium

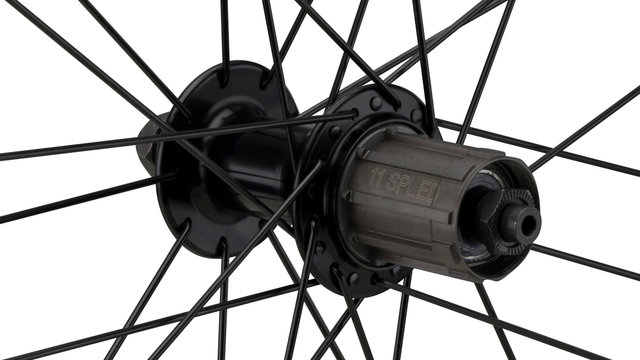

Technical Information - Rear Hub:
- Over Locknut Dimension:
- 10 x 130 mm quick release
- Bearings:
- ball (steel), double sealed
- Body Material:
- Aluminium
Technical Information - Lacing:

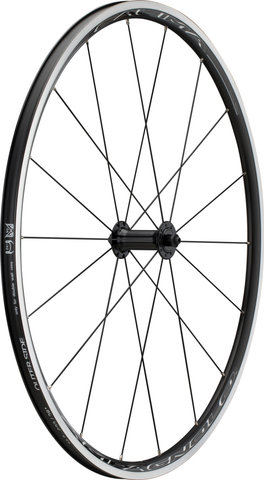

- Front Lacing Pattern:
- radial

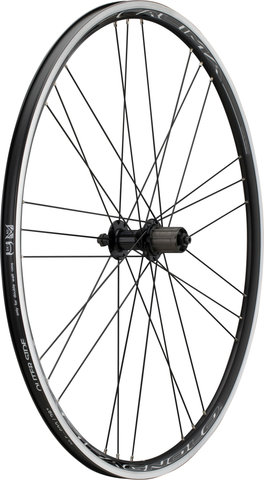

- Rear Lacing Pattern:
- G3™
- Spoke Type:
- Aero
- Spoke Material:
- stainless steel
- Nipple Material:
- Aluminium
Approved For:
- Weight Limit:
- 109 kg total weight*
* When weighing more than 82 kg (180 lb) shorter inspection intervals are recommended.
Colour Index:
- Rims:
- black with decals
- Spokes:
- black
- Hubs:
- black
- Nipples:
- silver
Technology:
G3™Campagnolo developed a lacing pattern that, compared to a conventional wheel, allows improved energy transfer, reduces the stress on the spokes on the right side and increases lateral stiffness. In G3™ geometry, the right side of the rear wheel has twice the number of spokes compared to the left side.
The advantages of the G3™ system are amazing: improved transmission of the drive force, increased lateral stiffness, reduction of spoke tension on the rear wheel. Thanks to the G3 system™, which compensates for the forces acting on the 2 sides of the wheel, vibrations are eliminated even for people with heavier weights.
Manufacturer Numbers:
- 28" set (front 9x100 + rear 10x130) Campy:
- WH18-CACFR
- 28" set (front 9x100 + rear 10x130) Shimano:
- WH18-CACFRX
Contents:
- 1 x Campagnolo Calima G3™ wheelset (front & rear)
- 2 x Campagnolo quick releases
Weight:
- black/28" set (front 9x100 + rear 10x130) Shimano: 1826 g (Satz)
