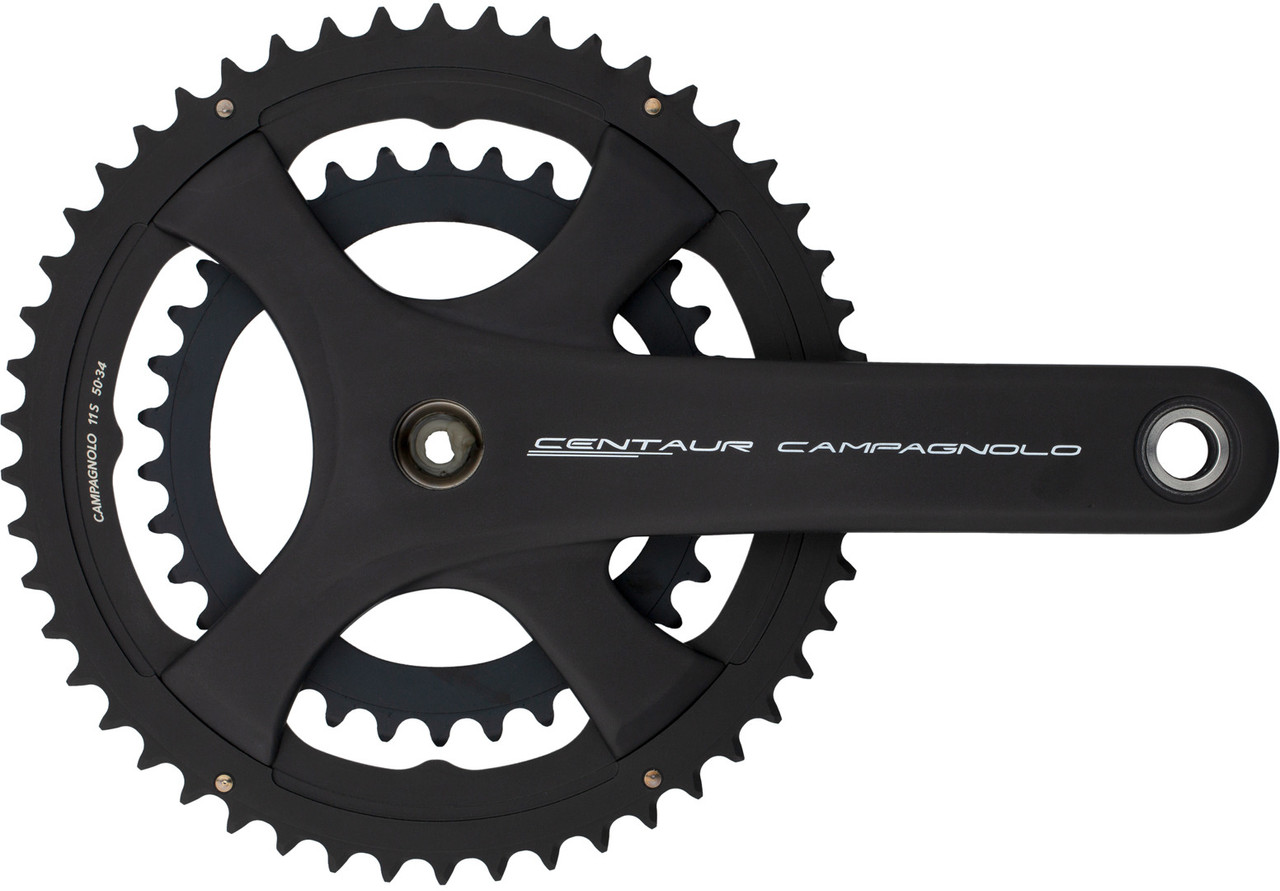

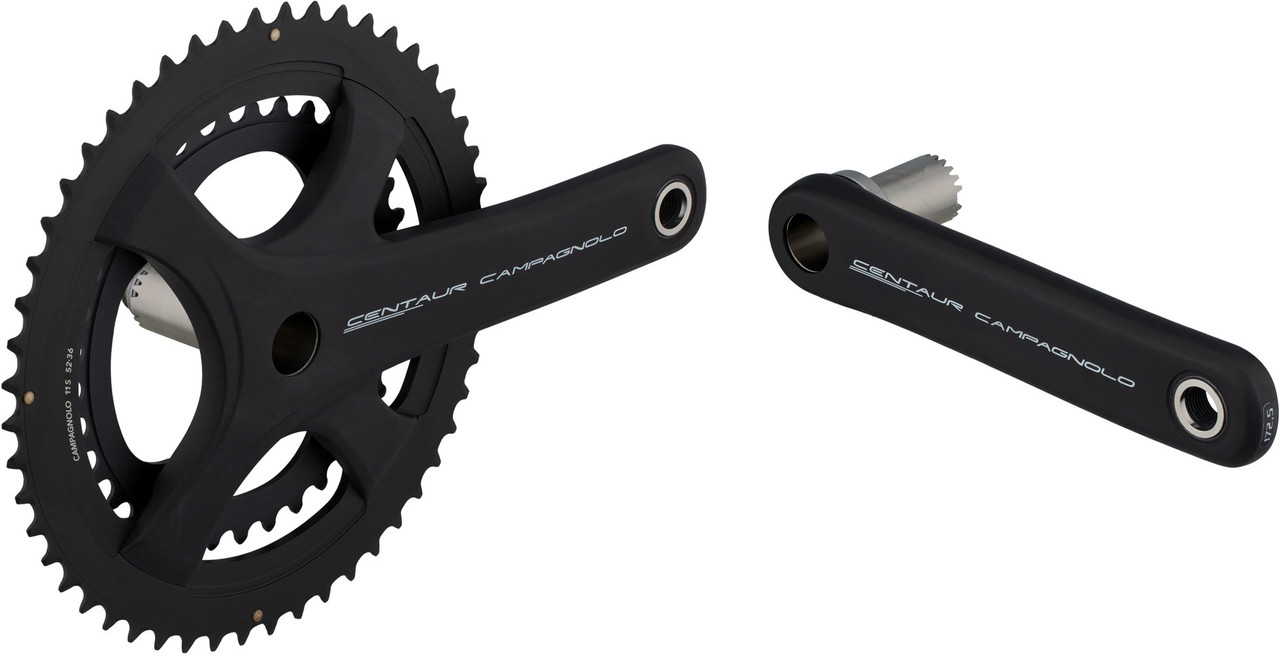

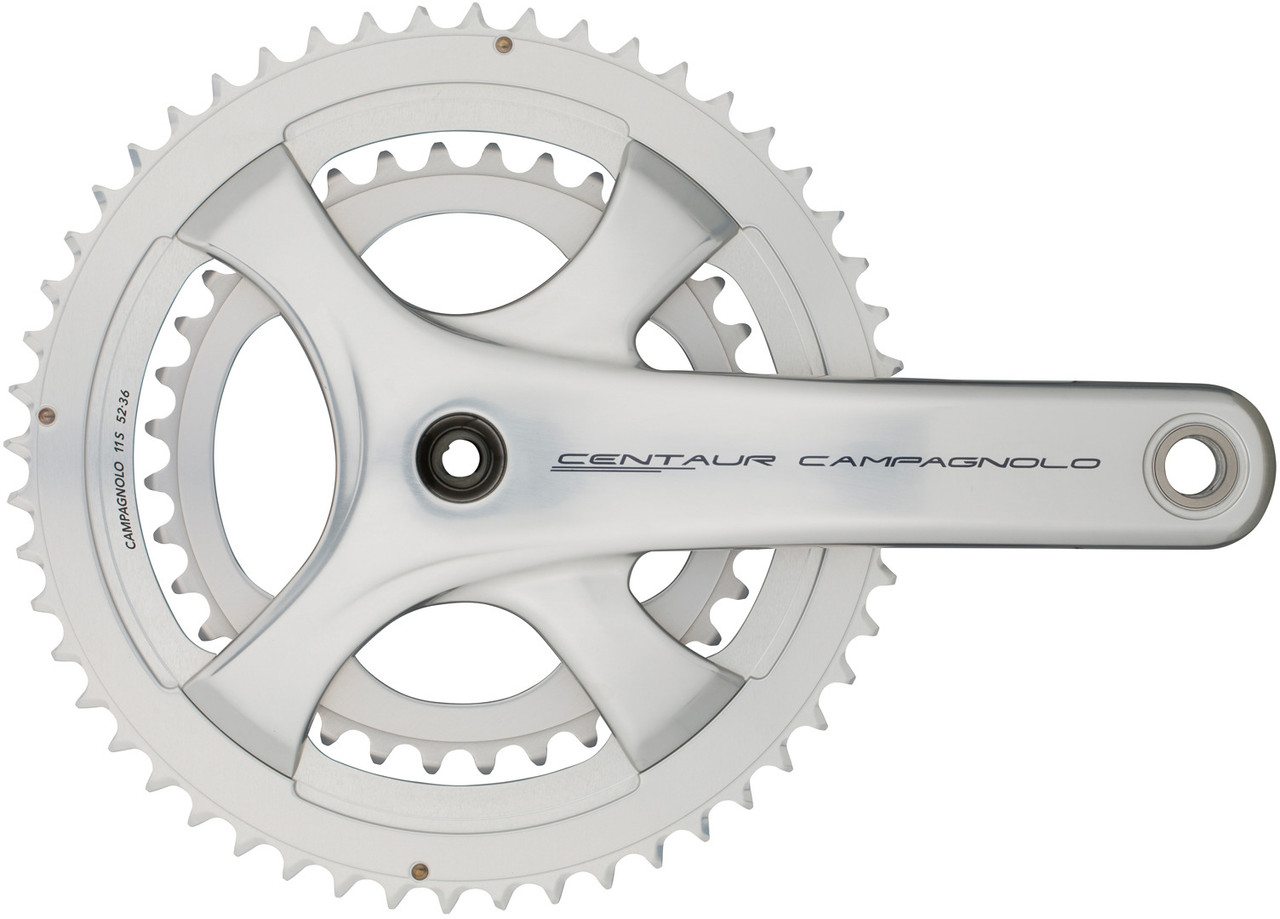

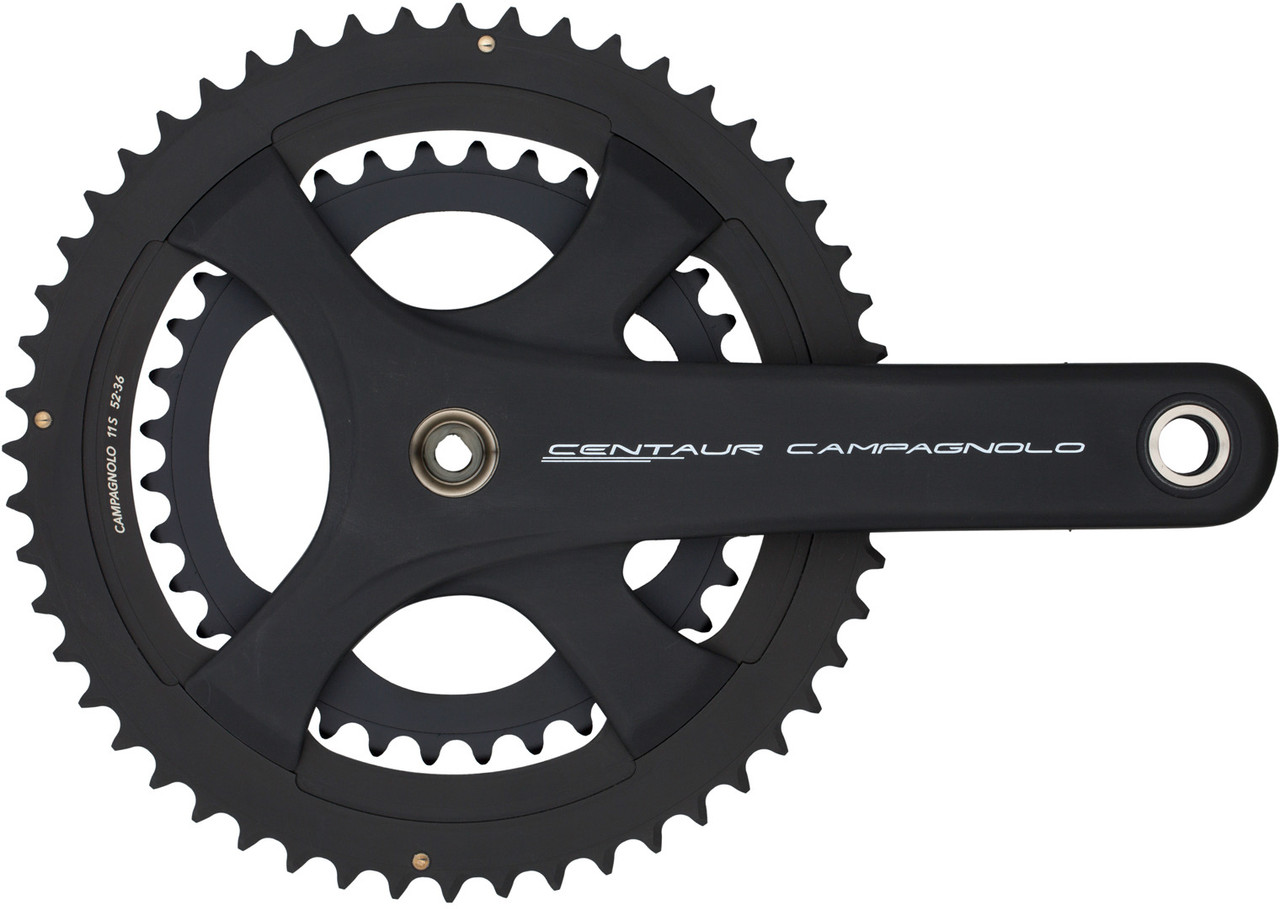

Campagnolo Centaur 11 Ultra Torque 11-speed Crankset

Specifications:

Application:

Road

Compatibility:

11-speed Campagnolo

Chainring Mount:

112 mm bolt circle diameter, 4-arm, 145 mm bolt circle diameter, 4-arm

Technical Information:

Series:

Centaur 11

Crank Arm Material:

Aluminium

Chainring Material:

light alloy

Axle Material:

steel

Gradation:

34-50, 36-52

Crank Arm Length:

170.0 mm, 172.5 mm, 175.0 mm

Chainline:

44.5 mm

Q-Factor:

145.5 mm

Recommended Bottom Bracket:

Ultra Torque™ threaded bearing cups or Ultra Torque™ Pressfit bearing cups

Features:

• two colour options

Technology:

Ultra Torque™

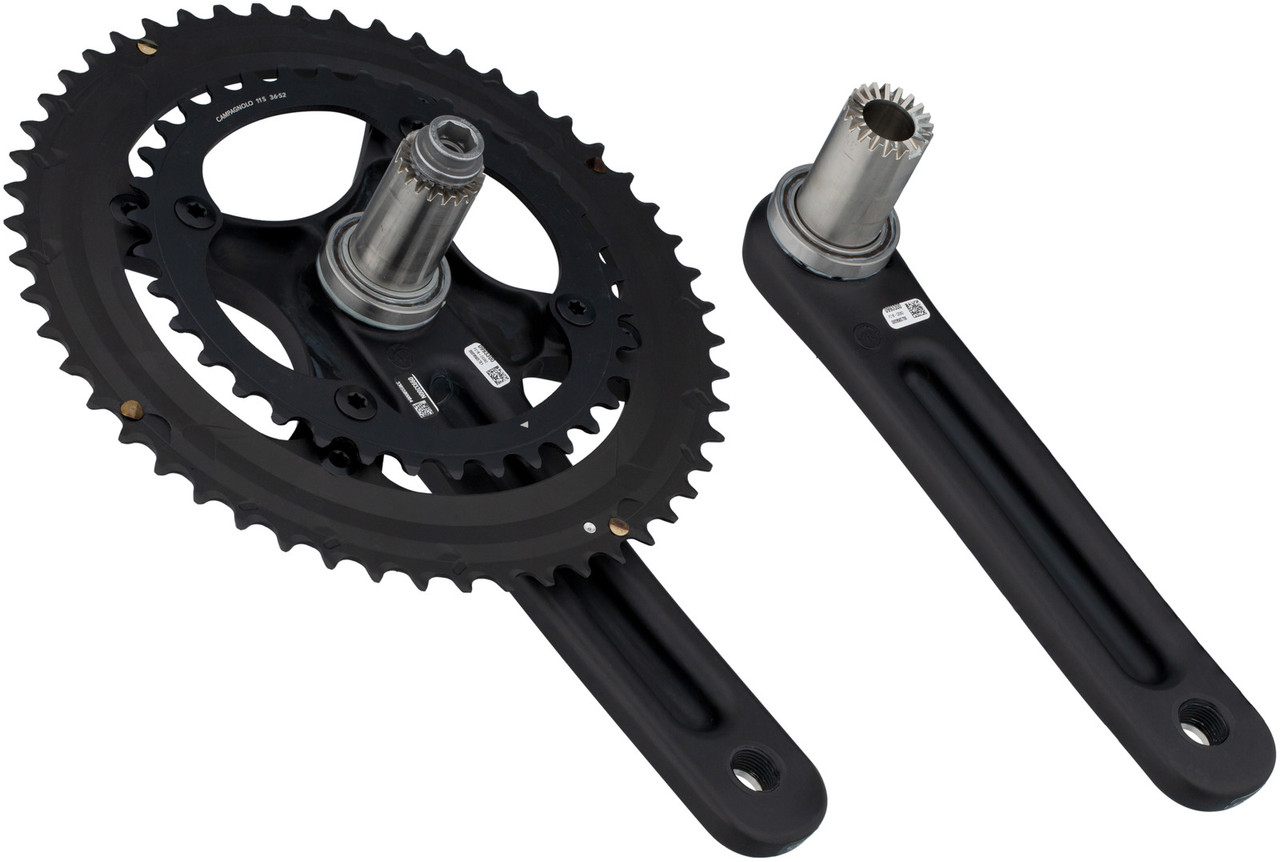

Low weight, rigidity and easy maintenance: that's Ultra-Torque™. Years after its introduction, Ultra-Torque™ is still recognised in terms of strength, weight saving and power transmission as the best-performing bicycle bottom bracket spindle. Campagnolo has made sure that the two halves of the bottom bracket are inseparably connected to the respective crank arms. This new development has made it possible to considerably reduce the lateral protrusion from the frame, thus preventing the undesirable contact of the ankles with the crank arms during pedalling. Its assembly is extremely simple, a single oversize screw is used to firmly connect the two halves of the axle. Concerning effectiveness of transmission of momentum, this system can stand comparison with a one-piece axle.
In addition, despite the narrow side profile, it has been possible to position the bearings outside the bottom bracket shell, making the axle, which has been given a larger diameter, more rigid thanks to the increased support width. The extraordinary performance characteristics of Ultra-Torque™ have been achieved by using a system that originated in engine construction in the field of hitches and rotary axles: the Hirth™ gearing. This is a coupling connection with self-centering and self-aligning spur gearing, which is arranged in the centre of the inner bearing axle where the ends of the axle halves firmly connected to the crank arms touch each other.

Manufacturer Numbers:

black 170.0 mm 34-50:

FC18-CE040

silver 170.0 mm 34-50:

FC18-CE040S

black 172.5 mm 34-50:

FC18-CE240

silver 172.5 mm 34-50:

FC18-CE240S

black 175.0 mm 34-50:

FC18-CE540

silver 175.0 mm 34-50:

FC18-CE540S

black 170.0 mm 36-52:

FC18-CE062

silver 170.0 mm 36-52:

FC18-CE062S

black 172.5 mm 36-52:

FC18-CE262

silver 172.5 mm 36-52:

FC18-CE262S

black 175.0 mm 36-52:

FC18-CE562

silver 175.0 mm 36-52:

FC18-CE562S

Contents:

• 1 x Campagnolo Centaur 11 crankset
• incl. bearings, right & left (pressed)
• not incl. bearing cups
