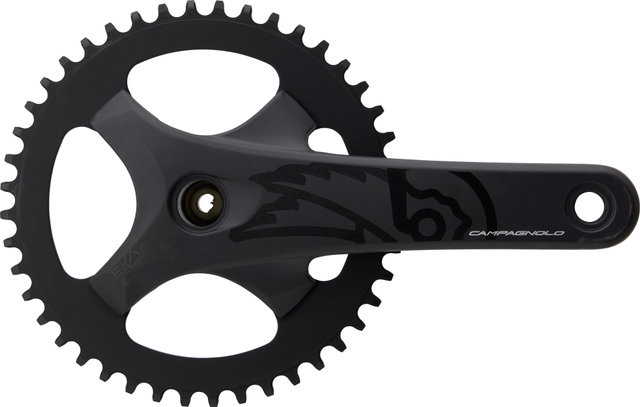

Campagnolo Ekar GT ProTech 13-speed Crankset

Specifications:

Application:

Gravel, Road

Compatibility:

Campagnolo 1x13-speed

Chainring Mount:

123 mm bolt circle diameter, 4-arm

Technical Information:

Series:

Ekar GT

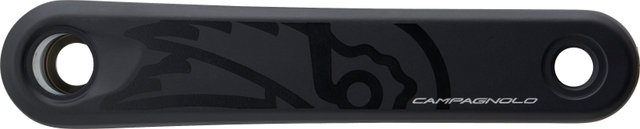

Crank Arm Material:

aluminium

Chainring Material:

aluminium

Axle Material:

steel

Gradation:

36 tooth, 38 tooth, 40 tooth, 42 tooth, 44 tooth

Crank Arm Length:

170.0 mm, 172.5 mm, 175.0 mm

Chainline:

43.5 mm

Q-Factor:

145.5 mm

Axle Diameter:

25 mm

Recommended Bottom Bracket:

Pro-Tech threaded bearing cups or Pro-Tech Pressfit bearing cups

Recommended Chain:

Campagnolo Ekar GT

Features:

• lightweight, robust crank for Campagnolo 13-speed drivetrains
• with only one chainring: highly reliable and user-friendly
• easy chainring replacement without removing the crank (4-bolt assembly)
• perfect set-up even with wider chainstays
• Ultra-Torque axle
• specially sealed ball bearings
• 36 t and 38 t recommended for Adventure, 40 t for Gravel with elevation gains, 42 t for flat Gravel routes, 44 t for Endurance Road and Endurance Gravel

Technology:

Ultra Torque™

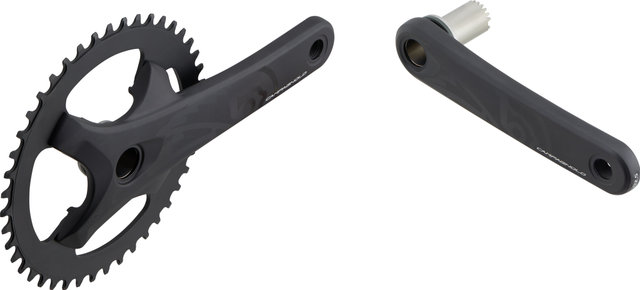

Low weight, rigidity and easy maintenance: Ultra Torque. Campagnolo has made sure that the two halves of the bottom bracket are inseparably connected to the respective crank arms. This new development has made it possible to considerably reduce the lateral protrusion from the frame, thus preventing the undesirable contact of the ankles with the crank arms during pedalling. Its assembly is extremely simple, a single oversize screw is used to firmly connect the two halves of the axle. Concerning effectiveness of transmission of momentum, this system can stand comparison with a one-piece axle.

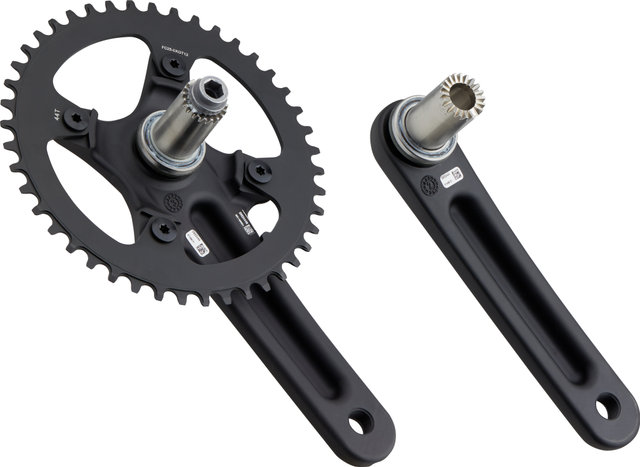

In addition, despite the narrow side profile, it has been possible to position the bearings outside the bottom bracket shell, making the axle, which has been given a larger diameter, more rigid thanks to the increased support width. The extraordinary performance characteristics of the Ultra Torque have been achieved by a system that originated in engine construction in the area of couplings and rotary axes: the HirthT gearing. This is a coupling connection with self-centering and self-aligning spur gearing, which is arranged in the centre of the inner bearing axle where the ends of the axle halves firmly connected to the crank arms touch each other.

Manufacturer Numbers:

170.0 mm 36 tooth:

FC25-EKGT1306

170.0 mm 38 tooth:

FC25-EKGT1308

170.0 mm 40 tooth:

FC25-EKGT1300

170.0 mm 42 tooth:

FC25-EKGT1302

170.0 mm 44 tooth:

FC25-EKGT1304

172.5 mm 36 tooth:

FC25-EKGT1326

172.5 mm 38 tooth:

FC25-EKGT1328

172.5 mm 40 tooth:

FC25-EKGT1320

172.5 mm 42 tooth:

FC25-EKGT1322

172.5 mm 44 tooth:

FC25-EKGT1324

175.0 mm 36 tooth:

FC25-EKGT1356

175.0 mm 38 tooth:

FC25-EKGT1358

175.0 mm 40 tooth:

FC25-EKGT1350

175.0 mm 42 tooth:

FC25-EKGT1352

175.0 mm 44 tooth:

FC25-EKGT1354

Contents:

• 1 x Campagnolo Ekar GT crankset
• 1 x right bearing (installed)
• 1 x left bearing (installed)
