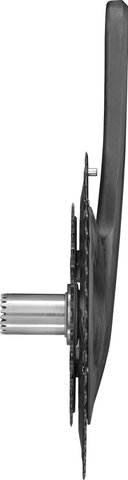

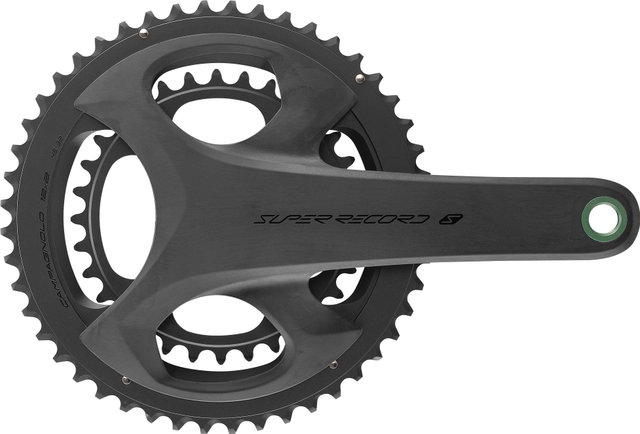

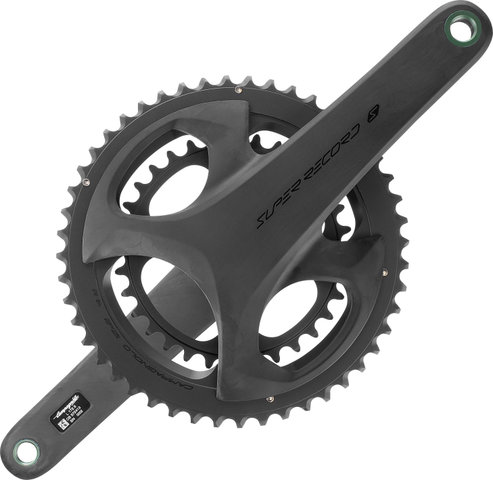

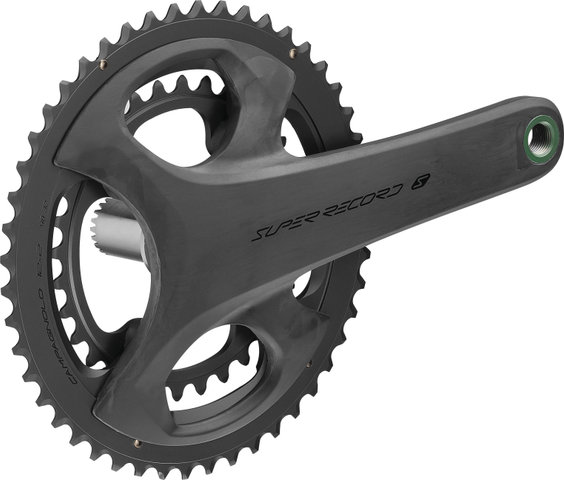

Campagnolo Super Record S Wireless ProTech 12x Crankset

Specifications:

Application:

Road

Compatibility:

Campagnolo 2x12x

Chainring Mount:

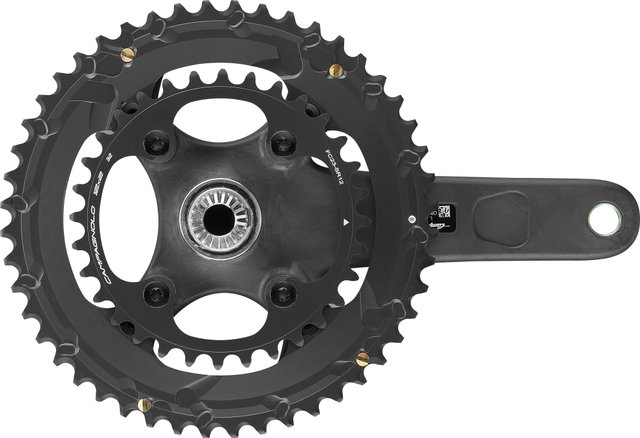

121/88 mm bolt circle diameter, 4-arm asymmetric

Technical Information:

Series:

Super Record S Wireless

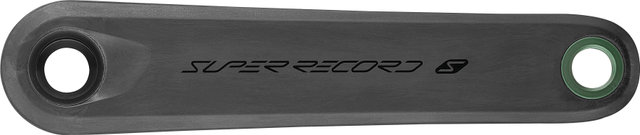

Crank Arm Material:

carbon

Chainring Material:

aluminium

Axle Material:

steel

Gradation:

29-45 T, 32-48 T, 34-50 T, 36-52 T

Crank Arm Length:

165.0 mm, 170.0 mm, 172.5 mm, 175.0 mm

Q-Factor:

147.5 mm

Axle Diameter:

25 mm

Recommended Bottom Bracket:

Pro-Tech Threaded Bottom Bracket Cups or Pro-Tech Pressfit Bottom Bracket Cups, Pro-Tech T47 Bottom Bracket Cups

Recommended Chain:

Super Record

Features:

• Special edition 2x12x road bike crankset specifically for the Super Record S Wireless groupset, featuring a matte black appearance
• Full carbon crank arms
• Optimum stiffness and power transmission
• Optimised gradations

Technology:

Ultra Torque

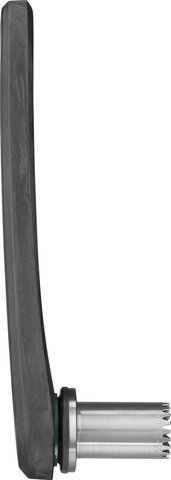

Lightweight, stiffness, and easy maintenance: Ultra Torque. Campagnolo has ensured that the two halves of the bottom bracket are inseparably connected to the respective crank arms. This innovation has enabled a significant reduction in the lateral protrusion from the frame, thereby preventing the undesirable contact of the ankles with the crank arms during pedaling. Its assembly is extremely simple, a single oversize screw is used to firmly connect the two halves of the axle. In terms of the effectiveness of momentum transmission, this system is comparable to a one-piece axle.
Moreover, despite the narrow side profile, it has been possible to position the bearings outside the bottom bracket shell, making the axle, which has been given a larger diameter, more rigid thanks to the increased support width. The exceptional performance characteristics of Ultra Torque were achieved through a system derived from motor engineering in the area of clutches and rotational axes: the Hirth joint. This is a coupling connection with self-centering and self-aligning spur gearing, which is located in the center of the inner bearing axle where the ends of the axle halves firmly connected to the crank arms touch each other.

Manufacturer Numbers:

165.0 mm 29-45:

FC-SRS2695

165.0 mm 32-48:

FC-SRS2628

165.0 mm 34-50:

FC-SRS2640

165.0 mm 36-52:

FC-SRS2662

170.0 mm 29-45:

FC-SRS2095

170.0 mm 32-48:

FC-SRS2028

170.0 mm 34-50:

FC-SRS2040

170.0 mm 36-52:

FC-SRS2062

172.5 mm 29-45:

FC-SRS2295

172.5 mm 32-48:

FC-SRS2228

172.5 mm 34-50:

FC-SRS2240

172.5 mm 36-52:

FC-SRS2262

175.0 mm 29-45:

FC-SRS2595

175.0 mm 32-48:

FC-SRS2528

175.0 mm 34-50:

FC-SRS2540

175.0 mm 36-52:

FC-SRS2562

Contents:

• 1 x Campagnolo Super Record S Wireless ProTech 12x crankset

Campagnolo S.r.l
Via della Chimica 4
36100 Vicenza
Italy
