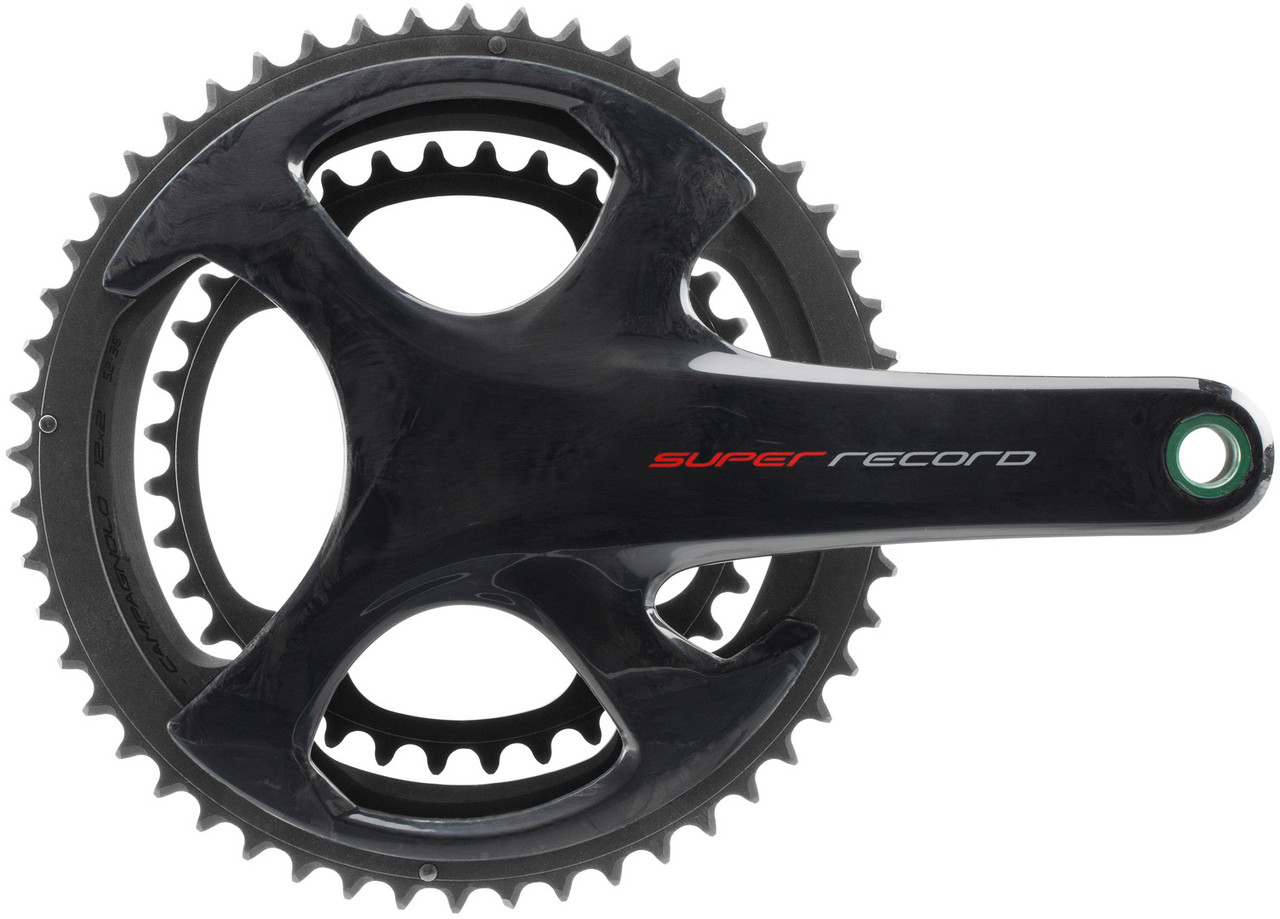

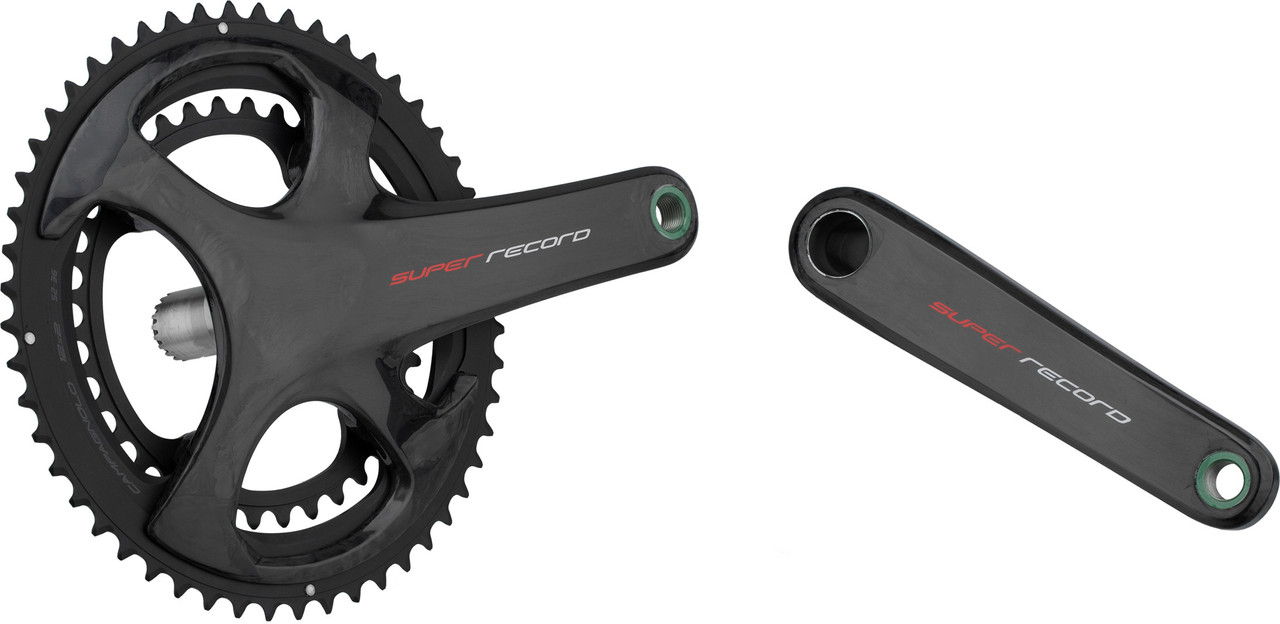

Campagnolo Super Record Ultra Torque 12-speed Crankset

Specifications:

Application:

Road

Compatibility:

12-speed Campagnolo

Chainring Mount:

112 mm bolt circle diameter, 4-arm, 145 mm bolt circle diameter, 4-arm

Technical Information:

Series:

Super Record

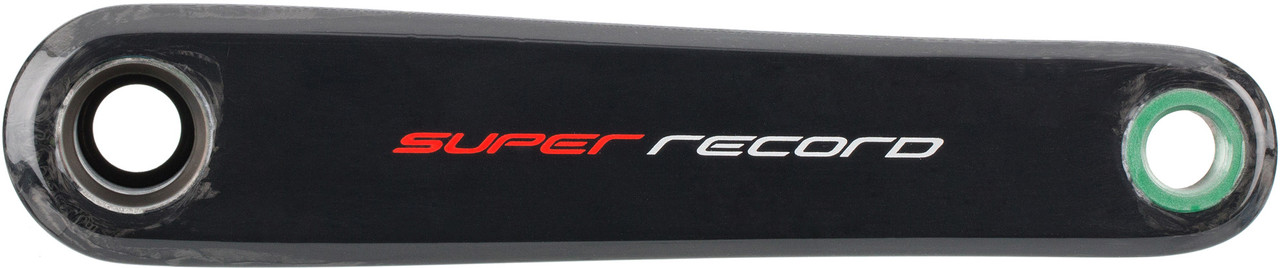

Crank Arm Material:

Carbon

Gradation:

34-50, 36-52, 39-53

Crank Arm Length:

170.0 mm, 172.5 mm, 175.0 mm

Recommended Bottom Bracket:

Ultra Torque™ threaded bearing cups or Ultra Torque™ Pressfit bearing cups

Technology:

Ultra Torque™
Low weight, rigidity and easy maintenance: that's Ultra-Torque™. Years after its introduction, Ultra-Torque™ is still recognised in terms of strength, weight saving and power transmission as the best-performing bicycle bottom bracket spindle. Campagnolo has made sure that the two halves of the bottom bracket are inseparably connected to the respective crank arms. This new development has made it possible to considerably reduce the lateral protrusion from the frame, thus preventing the undesirable contact of the ankles with the crank arms during pedalling. Its assembly is extremely simple, a single oversize screw is used to firmly connect the two halves of the axle. Concerning effectiveness of transmission of momentum, this system can stand comparison with a one-piece axle.

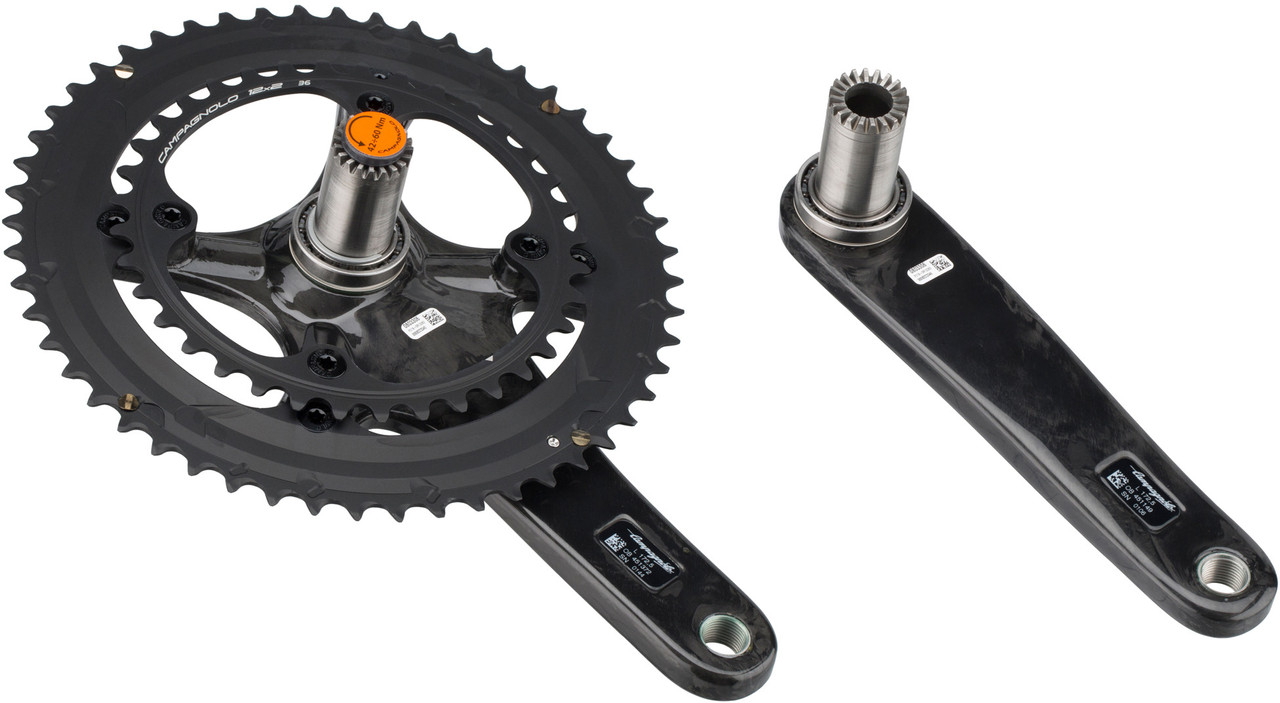

In addition, despite the narrow side profile, it has been possible to position the bearings outside the bottom bracket shell, making the axle, which has been given a larger diameter, more rigid thanks to the increased support width. The extraordinary performance characteristics of Ultra-Torque™ have been achieved by using a system that originated in engine construction in the field of hitches and rotary axles: the Hirth™ gearing. This is a coupling connection with self-centering and self-aligning spur gearing, which is arranged in the centre of the inner bearing axle where the ends of the axle halves firmly connected to the crank arms touch each other.

Manufacturer Numbers:

carbon / 170.0 mm 34-50:

FC19-SR12040

carbon / 172.5 mm 34-50:

FC19-SR12240

carbon / 175.0 mm 34-50:

FC19-SR12540

carbon / 170.0 mm 36-52:

FC19-SR12062

carbon / 172.5 mm 36-52:

FC19-SR12262

carbon / 175.0 mm 36-52:

FC19-SR12562

carbon / 170.0 mm 39-53:

FC19-SR12093

carbon / 172.5 mm 39-53:

FC19-SR12293

carbon / 175.0 mm 39-53:

FC19-SR12593

Contents:

• 1 x Campagnolo Super Record crankset
• incl. bearings, right & left (pressed)
• not incl. bearing cups
