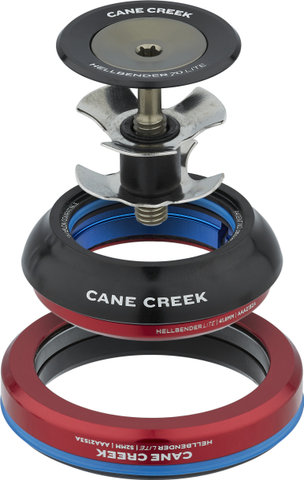

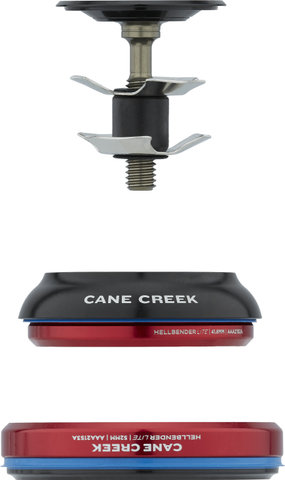

Cane Creek Hellbender 70 Lite IS42/28.6 - IS52/40 Headset

The Cane Creek Hellbender 70 Lite Headset in IS42/28.6 - IS52/40 is particularly lightweight

The Hellbender 70 Lite headset from Cane Creek in IS42/28.6 - IS52/40 is recommended for all those who value the lowest possible weight. You don't have to sacrifice performance or durability, because the sealed hybrid bearings made of aluminium and steel ensure durable smooth running under all conditions.

Use:
Designed for 1 1/8" upper head tube diameters and 1.5" lower head tube diameters combined with 1 1/8" - 1.5" tapered forks.

Specifications:

Application:

Road, Cyclocross, Gravel, Cross Country, All Mountain, Enduro

Design:

integrated (IS)

Top Bearing Outer Diameter:

42 mm

Top Inner Diameter:

28.6 mm

Bottom Bearing Outer Diameter:

52 mm

Top Inner Diameter:

40 mm

Head Tube:

1 1/8" - 1.5" tapered

Steerer Tube:

1 1/8" - 1.5" tapered

Technical Information:

Material:

aluminium (6061-T6)

Bearings:

sealed Hellbender Lite aluminium-steel cartridge bearings

Bearing Seat:

45° x 36°

Top Cap:

aluminium

Features:

• weight-optimised headset
• approx. 35% lighter than comparable models
• durable design
• suitable for carbon fork steerer tubes
• with sealed cartridge bearings made of aluminium and steel
• low-friction, double-sealed crown race

Standardized Headset Identification System (S.H.I.S.):

In order to clarify and bring uniformity to a sea of headset standards, manufacturers Acros, Cane Creek, Hope, Race Face, Reset Racing and Ritchey have agreed upon using a shared nomenclature, which will likely include more participating companies in the future. This system takes into account a combination of frame and fork dimensions. Both the top and bottom parts of the headset are marked by two alphanumeric identifiers. The first identifier indicates the type of headset (External Cup, Zero Stack, Integrated) and head tube diameter. The second identifier - separated from the first by a backslash - indicates the diameter of the steerer tube. When referring to a complete headset, the specifications of both top and bottom parts must be combined.

Nomenclature:

EC:

Bearings contained within headset cups that are located outside of the frame (External Cup)

ZS:

Bearings contained within pressed-in headset cups where the cup and bearings rest inside the frame (Zero Stack)

IS:

Bearings that fit directly into a bonded or machined interface that is integrated into the frame (Integrated)

Manufacturer Number:

BAA2172K

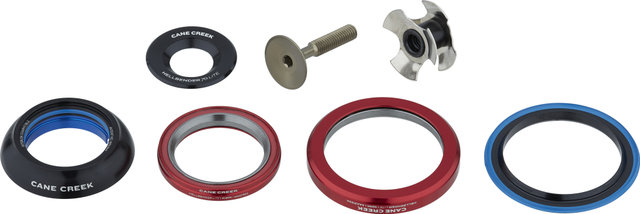

Contents:

Cane Creek Hellbender 70 Lite IS42/28.6 - IS52/40 headset, consisting of:

• 1 x aluminium-steel top bearing
• 1 x aluminium-steel bottom bearing
• 1 x top cap
• 1 x top caps
• 1 x star nut
• 1 x crown race
• 1 x bolts
