Cane Creek Hellbender 70 Slam ZS44/28.6 Upper Headset Cup

The Cane Creek Hellbender 70 Slam upper headset cup in ZS44/28.6 - Durable and flat

The Hellbender 70 Slam upper headset cup from Cane Creek in ZS44/28.6 is characterised above all by a low overall height and is therefore recommended for all those who prefer a flat cockpit. Thanks to the proven quality of the Hellbender 70 series, including a long-life, sealed stainless steel cartridge bearing, you don't have to compromise on durability.

Use:
Designed for 1 1/8" top head tubes in combination with 1 1/8" top forks.

Specifications:

Application:

Road, Cyclocross, Gravel, Cross Country, All Mountain, Enduro

Design:

Zero Stack (ZS)

Upper Outer Diameter:

44 mm

Upper Inner Diameter:

28.6 mm

Head Tube:

1 1/8" , 1 1/8" - 1 1/4" tapered, 1 1/8" - 1.5" tapered, 1 1/8" - 1 3/8" tapered

Steerer Tube:

1 1/8" , 1 1/8" - 1 1/4" tapered, 1 1/8" - 1.5" tapered, 1 1/8" - 1 3/8" tapered

Technical Information:

Material:

aluminium (6061-T6)

Bearings:

sealed Hellbender stainless steel cartridge bearing

Bearing Seat:

45° x 36°

Upper Stack Height:

2 mm

Top Cap:

aluminium

Features:

• upper headset cup with low overall height for flat cockpit
• 6 mm lower than Hellbender 70 headset
• durable design
• suitable for carbon fork steerer tubes
• with sealed premium Hellbender cartridge bearing made of stainless steel

Standardized Headset Identification System (S.H.I.S.):

In order to clarify and bring uniformity to a sea of headset standards, manufacturers Acros, Cane Creek, Hope, Race Face, Reset Racing and Ritchey have agreed upon using a shared nomenclature, which will likely include more participating companies in the future. This system takes into account a combination of frame and fork dimensions. Both the upper and lower part of the headset are marked by two alphanumeric identifiers. The first identifier indicates the type of headset (External Cup, Zero Stack, Integrated) and head tube diameter. The second identifier - separated from the first by a backslash - indicates the diameter of the steerer tube. When referring to a complete headset, the specifications of both upper and lower parts must be combined.

Nomenclature:

EC:

Bearings contained within cups that are located outside of the frame (External Cup)

ZS:

Bearings contained within pressed-in cups where the cup and bearings rest inside the frame (Zero Stack)

IS:

Bearings that fit directly into a bonded or machined interface that is integrated into the frame (Integrated)

Manufacturer Number:

BAA2163K

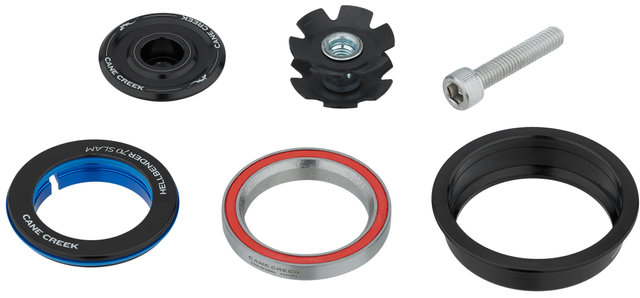

Contents:

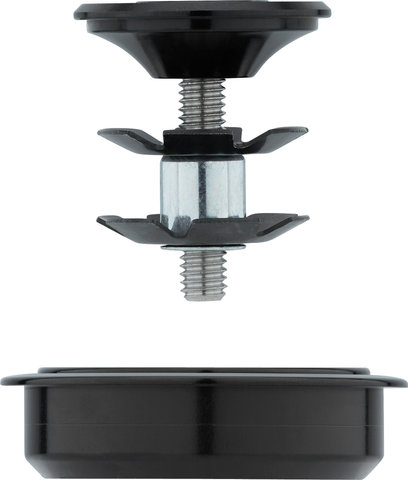

Cane Creek Hellbender 70 Slam ZS44/28.6 upper headset cup, consisting of:

• 1 x bearing cup
• 1 x stainless steel bearing
• 1 x top cap
• 1 x top caps
• 1 x star nut
• 1 x bolts
