Cane Creek Hellbender 70 Slam ZS44/28.6 - ZS56/40 Headset

The Cane Creek Hellbender 70 Slam headset in ZS44/28.6 - ZS56/40 is durable and low-profile

The Hellbender 70 Slam headset from Cane Creek in ZS44/28.6 - ZS56/40 is characterised above all by a low overall height and is therefore recommended for all those who prefer a flat cockpit. Thanks to the proven quality of the Hellbender 70 series, including long-lasting, sealed stainless steel cartridge bearings, you don't have to compromise on durability.

Use:
Designed for 1 1/8" upper head tube diameters and 1.5" lower head tube diameters combined with 1 1/8" - 1.5" tapered forks.

Specifications:

Application:

Road, Cyclocross, Gravel, Cross Country, All Mountain, Enduro

Design:

Zero Stack (ZS)

Top Outer Diameter:

44 mm

Top Inner Diameter:

28.6 mm

Bottom Outer Diameter:

56 mm

Bottom Inner Diameter:

40 mm

Head Tube:

1 1/8" - 1.5" tapered

Steerer Tube:

1 1/8" - 1.5" tapered

Technical Information:

Material:

aluminium (6061-T6)

Bearings:

sealed Hellbender stainless steel cartridge bearings

Bearing Seat:

45° x 36°

Top Stack Height:

2 mm

Top Cap:

aluminium

Features:

• headset with low overall height for flat cockpit
• top 6 mm lower than Hellbender 70 headset
• durable design
• suitable for carbon fork steerer tubes
• with sealed premium Hellbender cartridge bearings made of stainless steel
• low-friction, double-sealed crown race

Standardized Headset Identification System (S.H.I.S.):

In order to clarify and bring uniformity to a sea of headset standards, manufacturers Acros, Cane Creek, Hope, Race Face, Reset Racing and Ritchey have agreed upon using a shared nomenclature, which will likely include more participating companies in the future. This system takes into account a combination of frame and fork dimensions. Both the top and bottom parts of the headset are marked by two alphanumeric identifiers. The first identifier indicates the type of headset (External Cup, Zero Stack, Integrated) and head tube diameter. The second identifier - separated from the first by a backslash - indicates the diameter of the steerer tube. When referring to a complete headset, the specifications of both top and bottom parts must be combined.

Nomenclature:

EC:

Bearings contained within headset cups that are located outside of the frame (External Cup)

ZS:

Bearings contained within pressed-in headset cups where the cup and bearings rest inside the frame (Zero Stack)

IS:

Bearings that fit directly into a bonded or machined interface that is integrated into the frame (Integrated)

Manufacturer Number:

BAA2160K

Contents:

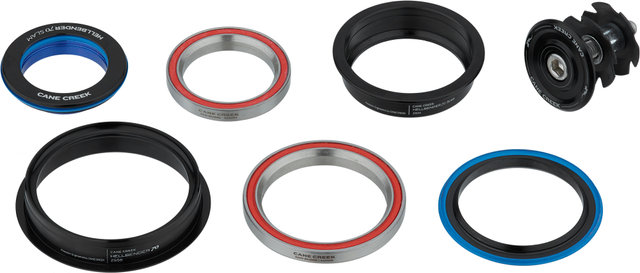

Cane Creek Hellbender 70 Slam ZS44/28.6 - ZS56/40 headset, consisting of:

• 1 x top headset cup
• 1 x bottom headset cup
• 1 x stainless steel top bearing
• 1 x stainless steel bottom bearing
• 1 x top cap
• 1 x top caps
• 1 x star nut
• 1 x crown race
• 1 x bolts
