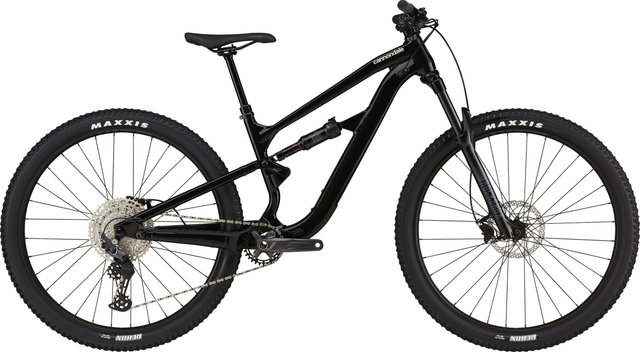

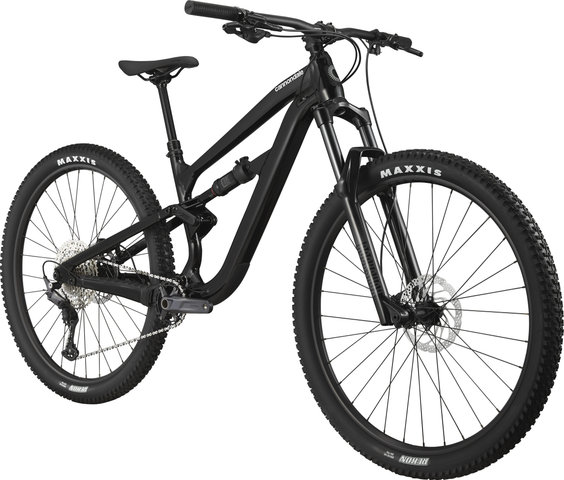

Cannondale Habit 4 29" Mountain Bike

The Cannondale Habit 4 29" mountain bike for trail fun uphill as well as downhill

The Habit 4 mountain bike from Cannondale comes with 29-inch tyres and feels right at home on all-mountain trails thanks to 140 mm travel at the front and 130 mm at the rear. The Shimano Deore 1x12-speed groupset reliably moves you forward, and the hydraulic brakes are also from Shimano. The suspension uses a RockShox Reclon RL fork and a Deluxe Select air shock. Thanks to Proportional Response Geometry, in which the frame design and also the behaviour of the chassis are adapted to each individual frame size, you are always centrally positioned and benefit from high traction and excellent handling.

Specifications:

Application:

All Mountain

Wheel Size:

29"

Front Travel:

140 mm

Rear Travel:

130 mm

Sizes:

S, M, L, XL

Front Triangle Material:

aluminium

Rear Triangle Material:

aluminium

Components:

Frame:

Cannondale Habit SmartForm C1 aluminium, Proportional Response, DirectLine internal cable routing, 12 x 148 mm (Boost)

Fork:

RockShox Recon RL, Solo Air, 15 x 110 mm (Boost), 42 mm offset

Stem:

Cannondale 3, 6061 aluminium, 31.8 mm, 0°

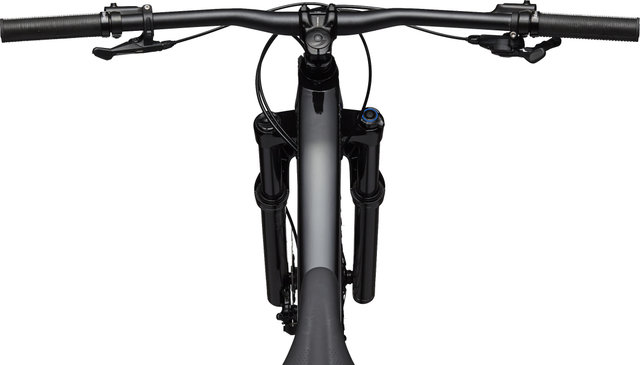

Handlebars:

Cannondale 3 Riser, 6061 aluminium, 15 mm Rise, 8° Backsweep, 4° Upsweep, 780 mm

Grips:

Cannondale Locking Grips

Rear Shock:

RockShox Deluxe Select, DebonAir, Rebound

Remote System:

none

Headset:

Integrated Sealed Bearing, Tapered

Seatpost:

TranzX Dropper, internal cable routing, 31.6 mm, stroke: 130 mm (S), 150 mm (M-XL)

Saddle:

Cannondale Ergo XC

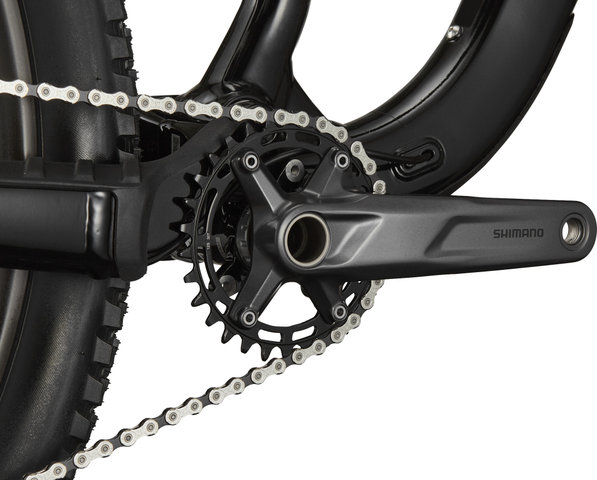

Crank:

Shimano, FC-5121, 30 teeth, 55 mm chainline

Pedals:

none

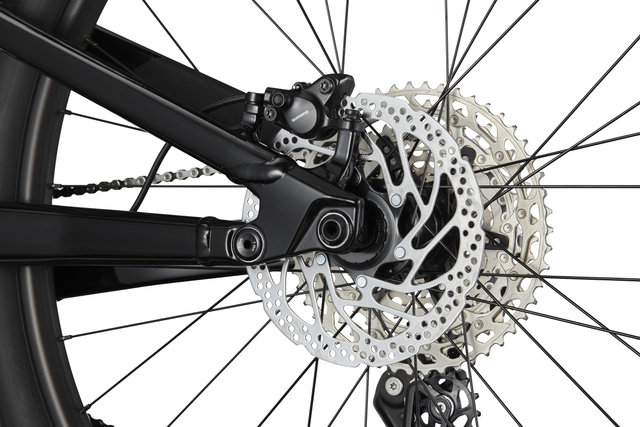

Brakes:

Shimano MT200 hydraulic, RT30 brake rotors, 180 mm (front / rear)

Shift Lever:

Shimano Deore M6100, 12-speed

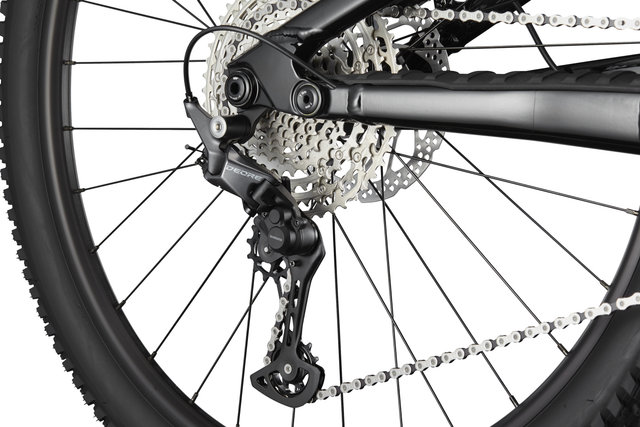

Rear Derailleur:

Shimano Deore M6100, 12-speed

Cassette:

Shimano Deore M6100, 11-51 teeth, 12-speed

Chain:

KMC X12, 12-speed

Rims:

WTB STX i25 TCS, 32 hole, tubeless ready

Spokes:

Stainless steel, 14 g

Front Hub:

Shimano MT400, 15 x 110 mm (Boost), thru-axle

Rear Hub:

Shimano MT410, 12 x 148 mm (Boost), thru-axle

Front Tyre:

Maxxis Rekon, 29 x 2.4" , EXO

Rear Tyre:

Maxxis Rekon, 29 x 2.4" , EXO

Approved For:

Weight Limit:

138 kg (rider + gear)

Rotor Size (max.):

203 mm (rear)

Tyre Size (max.):

29 x 2.6"

Chainrings:

1x

Fork Axle to Crown Size (max.):

563 mm

Features:

• 29-inch mountain bike with Shimano Deore groupset for flowing trail fun
• Proportional Response geometry concept: chainstay lengths, frame design and damping behaviour are matched to frame size
• with robust down tube protection
• 55 mm chainline
• SRAM UDH universal derailleur hanger

Geometry:

S:

Recommended Height:

157 cm - 165 cm

Stack:

623 mm

Reach:

430 mm

Seat Tube Length:

380 mm

Top Tube Length:

563 mm

Effective Top Tube Length:

534 mm

Head Tube Length:

110 mm

Chainstay Length:

435 mm

Wheelbase:

1173 mm

Bottom Bracket Height:

341 mm

BB Drop:

38 mm

Seat Tube Angle:

77.5°

Head Tube Angle:

65.5°

Standover Height:

737 mm

Stem Length:

35 mm

Handlebar Width:

780 mm

Crank Arm Length:

165 mm

M:

Recommended Height:

162 cm - 175 cm

Stack:

632 mm

Reach:

455 mm

Seat Tube Length:

400 mm

Top Tube Length:

590 mm

Effective Top Tube Length:

554 mm

Head Tube Length:

120 mm

Chainstay Length:

435 mm

Wheelbase:

1203 mm

Bottom Bracket Height:

341 mm

BB Drop:

38 mm

Seat Tube Angle:

77.5°

Head Tube Angle:

65.5°

Standover Height:

738 mm

Stem Length:

35 mm

Handlebar Width:

780 mm

Crank Arm Length:

165 mm

L:

Recommended Height:

172 cm - 182 cm

Stack:

641 mm

Reach:

480 mm

Seat Tube Length:

445 mm

Top Tube Length:

617 mm

Effective Top Tube Length:

580 mm

Head Tube Length:

130 mm

Chainstay Length:

435 mm

Wheelbase:

1239 mm

Bottom Bracket Height:

341 mm

BB Drop:

38 mm

Seat Tube Angle:

77.5°

Head Tube Angle:

65.5°

Standover Height:

751 mm

Stem Length:

35 mm

Handlebar Width:

780 mm

Crank Arm Length:

170 mm

XL:

Recommended Height:

180 cm - 195 cm

Stack:

650 mm

Reach:

515 mm

Seat Tube Length:

500 mm

Top Tube Length:

654 mm

Effective Top Tube Length:

615 mm

Head Tube Length:

140 mm

Chainstay Length:

435 mm

Wheelbase:

1278 mm

Bottom Bracket Height:

341 mm

BB Drop:

38 mm

Seat Tube Angle:

77.5°

Head Tube Angle:

65.5°

Standover Height:

761 mm

Stem Length:

35 mm

Handlebar Width:

780 mm

Crank Arm Length:

170 mm

Manufacturer Number:

C23401U

Shipping Notice:

The shipment is sent pre-assembled by a forwarding agent.
The delivery time is extended by 2-5 days, depending on the overall volume of orders.
For individual consultation, please contact our customer service team.

Contents:

• 1 x Cannondale Habit 4 29" mountain bike
