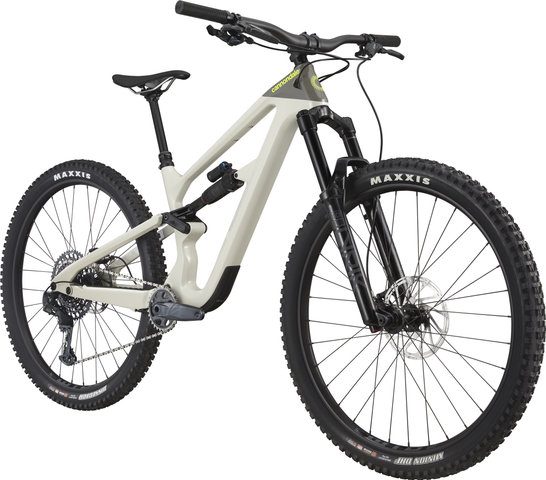

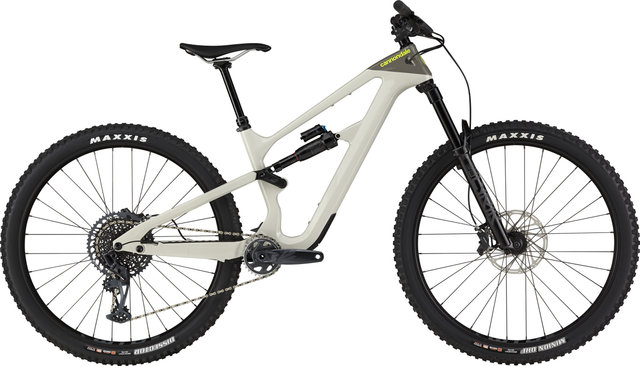

Cannondale Habit Carbon LT 1 29" Mountain Bike

The Cannondale Habit Carbon LT 1 29" mountain bike - More suspension travel for more fun

The Cannondale Habit Carbon LT 1 29-inch mountain bike offers plenty of suspension travel in the Long Travel version with 150 mm front and 140 mm rear for maximum downhill trail fun. Suspension fork and shock come from RockShox, the setup is complemented by a SRAM GX Eagle 1x12-speed drivetrain and Code R 4-piston brakes. At the bottom of the top tube there is a mount for the StrapRack holder, which helps you keep a mini-tool and other useful small items within reach. The Cannondale DownLow dropper post is quickly out of your way when needed. The geometry of the Habit LT is totally suited for climbing, but with a rather flat head tube angle and a rather steep seat tube angle it ensures safe handling, especially on steep descents. Thanks to the Proportional Response geometry concept, the frame design and also the behaviour of the chassis is adapted to each frame size.

Specifications:

Application:

All Mountain

Wheel Size:

29"

Front Travel:

150 mm

Rear Travel:

140 mm

Sizes:

S, M, L, XL

Front Triangle Material:

Carbon

Rear Triangle Material:

Carbon

Components:

Frame:

Cannondale Habit Full Carbon, Proportional Response, DirectLine internal cable routing, 12 x 148 mm (Boost)

Fork:

RockShox Lyrik Select+, DebonAir, 15 x 110 mm (Boost), 42 mm offset

Stem:

Cannondale 1, 7075 aluminium, 1 1/8" , 35 mm, 0°

Handlebars:

Cannondale HollowGram SAVE Riser, carbon, 35 mm, 30 mm rise, 8° backsweep, 5° upsweep, 780 mm width

Grips:

Cannondale TrailShroom

Rear Shock:

RockShox Super Deluxe Select+, DebonAir, 2-Position Adjust, Rebound

Remote System:

none

Headset:

Integrated Sealed Bearing, Tapered

Seatpost:

Cannondale DownLow Dropper, internal cable routing, 31.6 mm, stroke: 125 mm (S), 150 mm (M), 170 mm (L, XL)

Saddle:

fabric Scoop Shallow Elite, steel struts (CrMo)

Crank:

SRAM X1 Carbon Eagle DUB, 30-tooth, 55 mm chainline, with SRAM DUB BSA MTB73 Wide bottom bracket

Pedals:

none

Brakes:

SRAM Code R hydraulic 4-piston, Centerline brake rotors, 200 mm (front / rear)

Shift Lever:

SRAM GX Eagle, 12-speed

Rear Derailleur:

SRAM GX Eagle, 12-speed

Cassette:

SRAM GX Eagle XG-1275, 10-52 teeth, 12-speed

Chain:

SRAM GX Eagle, 12-speed

Rims:

WTB KOM Trail i30 TCS, 32 holes, tubeless ready

Spokes:

DT Swiss Champion

Front Hub:

Formula, 15 x 110 mm

Rear Hub:

DT Swiss 350, 12 x 148 mm, SRAM XD freehub

Front Tyre:

Maxxis Minion DHF, 29 x 2.5" , 3C, EXO+, tubeless ready

Rear Tyre:

Maxxis Dissector, 29 x 2.5" , 3C, EXO+, tubeless ready

Approved For:

Weight Limit:

138 kg (rider + gear)

Rotor Size (max.):

203 mm (rear)

Tyre Size (max.):

29 x 2.6"

Chainrings:

1x

Fork Axle to Crown Size (max.):

563 mm

Features:

• carbon trail bike with plenty of travel, RockShox suspension and SRAM GX-Eagle drivetrain
• with StrapRack holder for e.g. mini-tool and spare parts, which is attached to the frame
• Proportional Response geometry concept: chainstay lengths, frame design and damping behaviour are matched to frame size
• rather flat head tube angle and rather steep seat tube angle for stability and smoothness downhill
• efficient uphill climbing ability
• 55 mm chainline
• SRAM UDH universal derailleur hanger
• resistant composite plate serves as protection for the down tube

Geometry:

S:

Recommended Height:

157 cm - 165 cm

Stack:

626 mm

Reach:

425 mm

Seat Tube Length:

380 mm

Top Tube Length:

563 mm

Effective Top Tube Length:

531 mm

Head Tube Length:

110 mm

Chainstay Length:

435 mm

Wheelbase:

1177 mm

Bottom Bracket Height:

344 mm

BB Drop:

34 mm

Seat Tube Angle:

77.1°

Head Tube Angle:

64.7°

Standover Height:

736 mm

Stem Length:

40 mm

Handlebar Width:

780 mm

Crank Arm Length:

165 mm

M:

Recommended Height:

162 cm - 175 cm

Stack:

635 mm

Reach:

450 mm

Seat Tube Length:

400 mm

Top Tube Length:

590 mm

Effective Top Tube Length:

554 mm

Head Tube Length:

120 mm

Chainstay Length:

435 mm

Wheelbase:

1206 mm

Bottom Bracket Height:

344 mm

BB Drop:

34 mm

Seat Tube Angle:

77.1°

Head Tube Angle:

64.7°

Standover Height:

740 mm

Stem Length:

40 mm

Handlebar Width:

780 mm

Crank Arm Length:

165 mm

L:

Recommended Height:

172 cm - 182 cm

Stack:

644 mm

Reach:

475 mm

Seat Tube Length:

445 mm

Top Tube Length:

617 mm

Effective Top Tube Length:

579 mm

Head Tube Length:

130 mm

Chainstay Length:

440 mm

Wheelbase:

1240 mm

Bottom Bracket Height:

344 mm

BB Drop:

34 mm

Seat Tube Angle:

77.1°

Head Tube Angle:

64.7°

Standover Height:

757 mm

Stem Length:

40 mm

Handlebar Width:

780 mm

Crank Arm Length:

170 mm

XL:

Recommended Height:

180 cm - 195 cm

Stack:

653 mm

Reach:

510 mm

Seat Tube Length:

500 mm

Top Tube Length:

654 mm

Effective Top Tube Length:

617 mm

Head Tube Length:

140 mm

Chainstay Length:

445 mm

Wheelbase:

1284 mm

Bottom Bracket Height:

344 mm

BB Drop:

34 mm

Seat Tube Angle:

77.1°

Head Tube Angle:

64.7°

Standover Height:

767 mm

Stem Length:

40 mm

Handlebar Width:

780 mm

Crank Arm Length:

170 mm

Manufacturer Number:

C23152U

Shipping Notice:

The shipment is sent pre-assembled by a forwarding agent.
The delivery time is extended by 2-5 days, depending on the overall volume of orders.
For individual consultation, please contact our customer service team.

Contents:

• 1 x Cannondale Habit Carbon LT 1 29" mountain bike
• 1 x StrapRack holder
