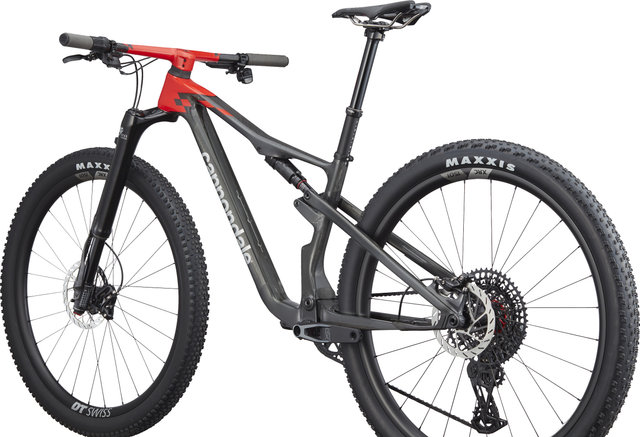

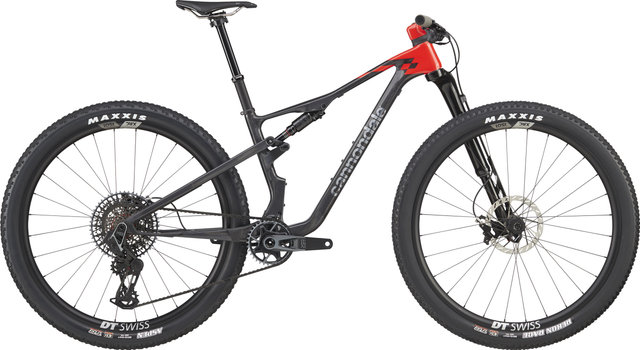

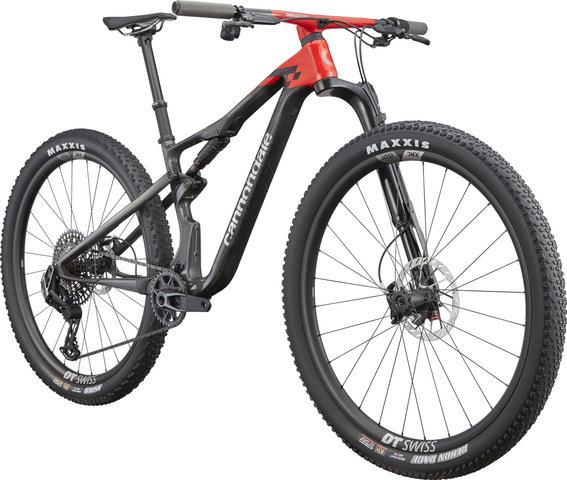

Cannondale Scalpel 1 Lefty Carbon 29" Mountain Bike

Hinweis zur Rücknahme von Batterien, Akkus und Elektroaltgeräten:

Informationen zur Rücknahme und Entsorgung gebrauchter Batterien, Akkumulatoren und Elektrogeräte findest Du hier.

Specifications:

Application:

Cross Country

Wheel Size:

29"

Front Travel:

120 mm

Rear Travel:

120 mm

Sizes:

M, L

Front Triangle Material:

carbon

Rear Triangle Material:

carbon

Components:

Frame:

Cannondale Scalpel Series 1 carbon, Proportional Response, internal cable routing, 12 x 148 mm

Fork:

Cannondale Lefty Ocho 120 carbon, Chamber damping, TwistLoc Ultimate Remote Lockout, OppO spring system, 50 mm offset

Stem:

Cannondale SystemBar XC-One Flat handlebar-stem unit, carbon, -6° angle

Handlebars:

Cannondale SystemBar XC-One Flat handlebar-stem unit, carbon, 8° backsweep, 5° upsweep, internal cable routing, 760 mm

Grips:

RockShox Smooth Silicone

Rear Shock:

RockShox SIDLuxe Select+, 2-Position Mode Adjust, Adjustable Rebound, 190 x 45 mm

Remote System:

TwistLoc Ultimate

Headset:

Acros ICR, 1 1/8" - 1.5"

Seatpost:

Fox Racing Shox Transfer SL Performance Elite, 31.6 mm, 150 mm travel

Saddle:

Prologo Dimension NDR, Tirox rails

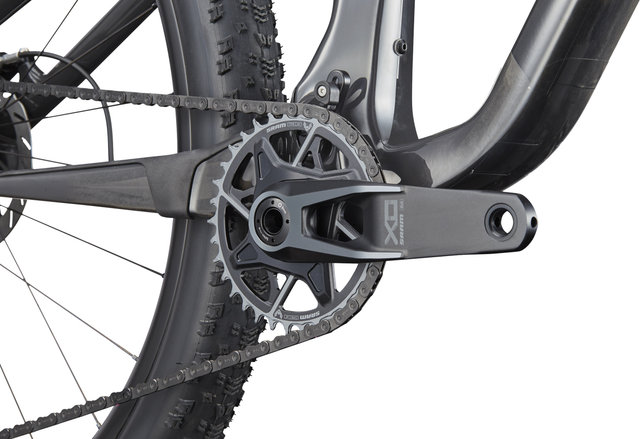

Crank:

SRAM X0 Eagle Transmission T-Type, 34 teeth, with SRAM DUB MTB Wide 73 mm BSA Bottom Bracket

Pedals:

none

Brakes:

SRAM Level Silver Stealth, hydraulic, with SRAM HS2 brake discs, 180 mm / 160 mm (front/rear)

Shift Lever:

SRAM AXS T-Type Pod Controller

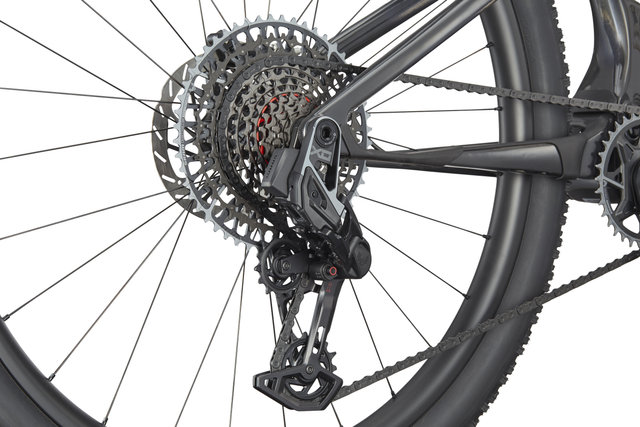

Rear Derailleur:

SRAM X0 Eagle Transmission AXS T-Type, 12-speed

Cassette:

SRAM X0 Eagle T-Type, 10-52 teeth, 12-speed

Chain:

SRAM X0 Eagle Transmission T-Type, 12-speed

Rims:

DT Swiss XRC 1501 Spline One, carbon, 30 mm internal width, no hooks, TSS tubeless ready

Spokes:

DT Swiss Competition Race, straight pull

Front Hub:

DT Swiss Lefty 60, 6-bolt

Rear Hub:

DT Swiss 240 Ratchet EXP 36, 6-bolt, SRAM XD freehub

Front Tyre:

Maxxis Recon Race WT, 29 x 2.4" , EXO Protection, tubeless ready

Rear Tyre:

Maxxis Aspen WT, 29 x 2.4" , WT, EXO Protection, tubeless ready

Approved For:

Weight Limit:

138 kg (total weight)

Rotor Size (max.):

180 mm

Tyre Size (max.):

29 x 2.4"

Chainrings:

1x 8

Features:

• Fully suspended cross-country MTB with wireless SRAM X0 Eagle Transmission AXS T-Type 1x12-speed groupset and Lefty suspension fork
• Frame, fork, cockpit, and wheels made of carbon
• Proportional-Response concept: Chainstay lengths and frame design are tailored to frame size
• Aggressive geometry with a flat steering angle, long reach, and steep seat angle for speed, stability, and control
• Lightweight, precise Lefty Ocho suspension fork and RockShox SIDLuxe Select+ shock with TwistLoc Ultimate Remote Dual-Lockout
• SRAM Level Silver Stealth disc brake with four pistons per caliper for precise braking power

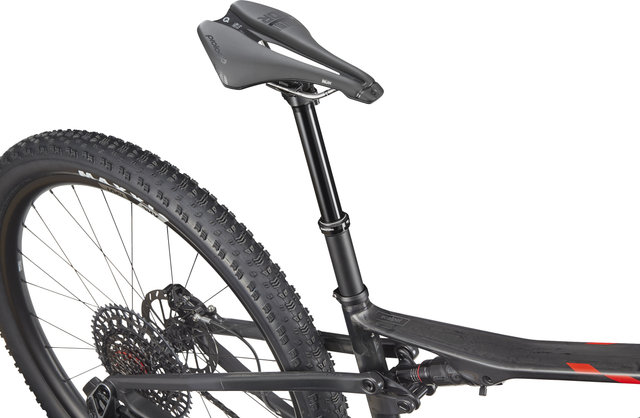

• Variable seatpost from Fox Racing Shox with 150 mm travel

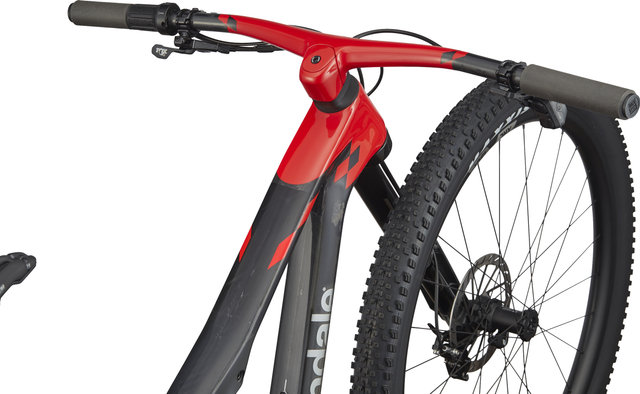

• SystemBar XC-One Flat handlebar-stem unit with internal cable routing
• Integrated ANT+/Bluetooth wheel sensor for tracking speed and distance travelled, can be paired with Cannondale app, operates with 1 x CR2032 battery
• 55 mm chainline
• SRAM UDH universal derailleur hanger

Technology:

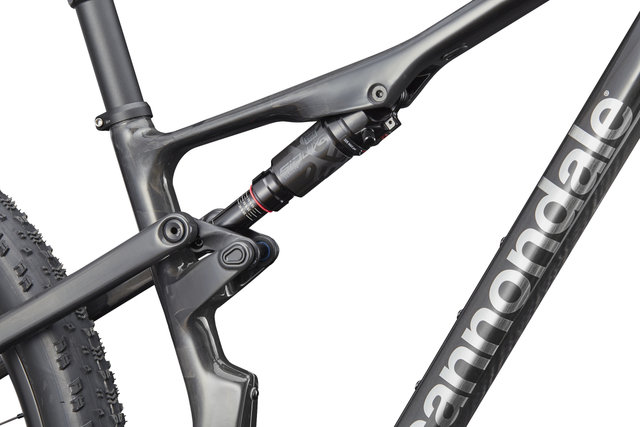

FlexPivot
The FlexPivot construction is clearly recognisable by the striking flat areas of the chainstays. These not only serve to save weight, but also provide a virtual Horst link pivot point. The advantages compared to a classic pivot with ball bearings are obvious: FlexPivot is lighter, stiffer, durable and requires no maintenance.

Geometry:

M:

Recommended Height:

162 cm - 175 cm

Stack:

595 mm

Reach:

450 mm

Seat Tube Length:

400 mm

Effective Top Tube Length:

597 mm

Head Tube Length:

90 mm

Chainstay Length:

438 mm

Wheelbase:

1175 mm

Bottom Bracket Height:

334 mm

BB Drop:

42 mm

Effective Seat Tube Angle:

75.5°

Virtual Seat Tube Angle:

71.0°

Head Tube Angle:

66.6°

Standover Height:

744 mm

L:

Recommended Height:

172 cm - 182 cm

Stack:

604 mm

Reach:

475 mm

Seat Tube Length:

445 mm

Effective Top Tube Length:

584 mm

Head Tube Length:

100 mm

Chainstay Length:

442 mm

Wheelbase:

1208 mm

Bottom Bracket Height:

334 mm

BB Drop:

42 mm

Effective Seat Tube Angle:

75.5°

Virtual Seat Tube Angle:

71.7°

Head Tube Angle:

66.6°

Standover Height:

752 mm

Manufacturer Number:

C24203U

Shipping Notice:

The shipment is sent pre-assembled by a forwarding agent.
The delivery time is extended by 2-5 days, depending on the overall volume of orders.
For individual consultation, please contact our customer service team.

Contents:

• 1 x Mountain Bike Cannondale Scalpel 1 Lefty carbon 29"
