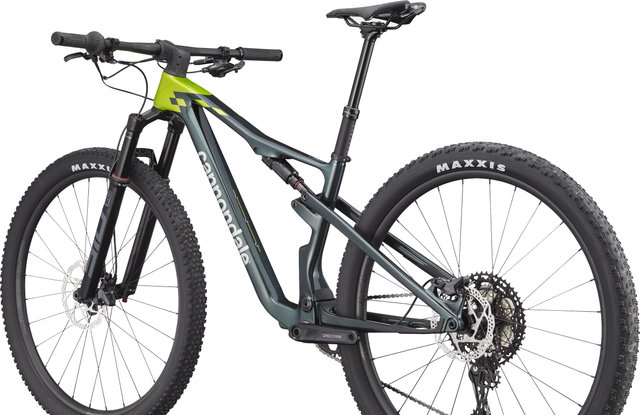

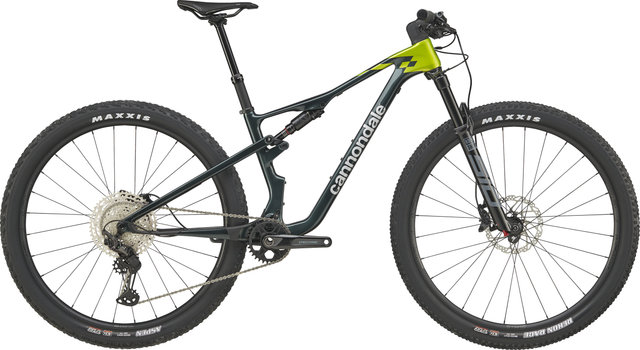

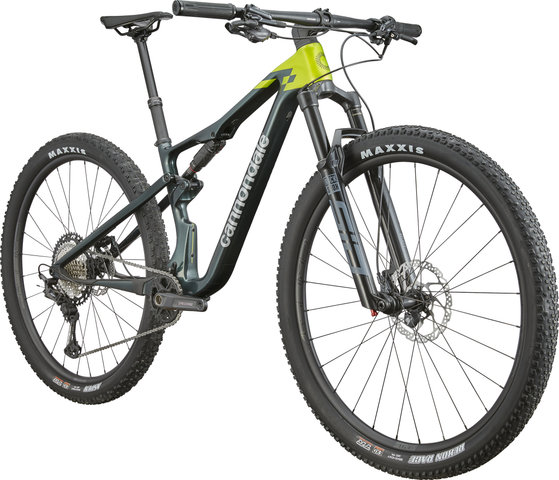

Cannondale Scalpel 3 carbon 29" Mountain Bike

Specifications:

Application:

Cross Country

Wheel Size:

29"

Front Travel:

120 mm

Rear Travel:

120 mm

Sizes:

S, M, L, XL

Front Triangle Material:

carbon

Rear Triangle Material:

carbon

Components:

Frame:

Cannondale Scalpel

Fork:

RockShox SID Select DebonAir

Stem:

Cannondale C1 Conceal, -6°

Handlebars:

Cannondale 2 Flat, 760 mm

Grips:

RockShox Smooth Silicone

Rear Shock:

RockShox SIDLuxe Select+, 190 x 45 mm

Remote System:

TwistLoc

Headset:

Acros ICR, IS52/28,6-IS52/40

Seatpost:

Cannondale DownLow, Hub: 125 mm (S), 150 mm (M-XL)

Saddle:

Prologo Dimension NDR, Steel Rails

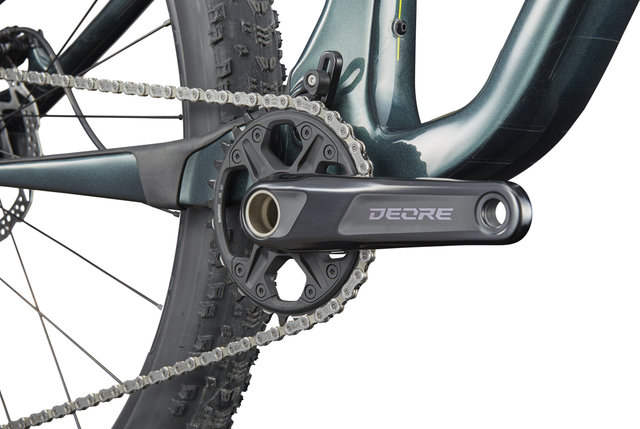

Crank:

Shimano DeoreM6120, 32 teeth, with Shimano 73 mm BSA Bottom Bracket

Pedals:

none

Brakes:

Shimano Deore M6100, hydraulic, with Shimano RT54 Discs, 180 mm / 160 mm (front/rear)

Shift Lever:

Shimano Deore M6100

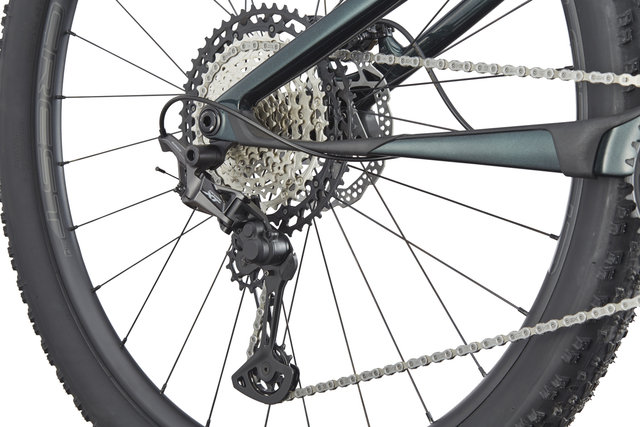

Rear Derailleur:

Shimano XT

Cassette:

Shimano Deore M6100, 10-51 teeth, 12-speed

Chain:

Shimano SLX M7100

Rims:

Stan's NoTubes Crest MK4, Tubeless Ready

Spokes:

DT Swiss Competition Race

Front Hub:

Formula CL-811, 15 x 110 mm

Rear Hub:

Shimano MT510B, 12 x 148 mm

Front Tyre:

Maxxis Recon Race WT, 29 x 2.4" , EXO Protection, Tubeless Ready

Rear Tyre:

Maxxis Aspen WT, 29 x 2.4" , WT, EXO Protection, Tubeless Ready

Approved For:

Weight Limit:

138 kg (Total Weight)

Rotor Size (max.):

180 mm

Tyre Size (max.):

29 x 2.4"

Chainrings:

1x

Features:

• Fully suspended, lightweight cross-country MTB made of carbon with a 1x12-speed Shimano and RockShox suspension
• Frame made of Series 1 carbon with internal cable routing

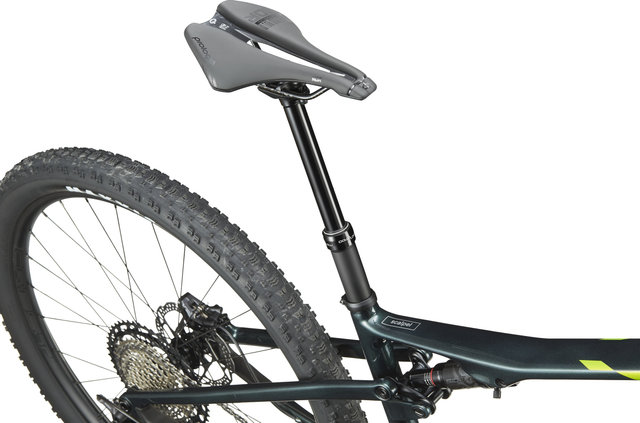

• Cannondale variable seatpost
• Proportional Response Concept: Chainstay lengths and frame design are tailored to frame size
• Aggressive geometry with a flat steering angle, long reach, and steep seat angle for speed, stability, and control

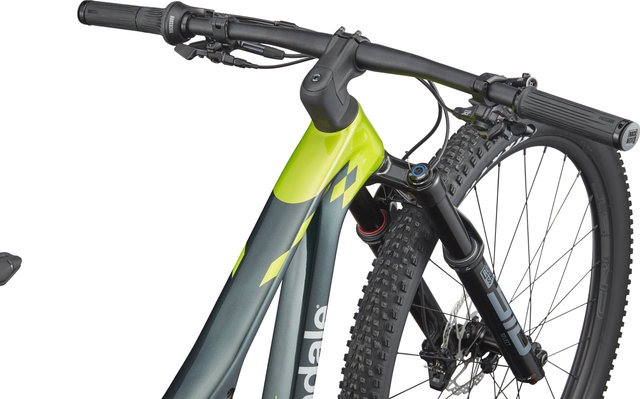

• RockShox SID Select fork and RockShox SIDLuxe Select+ shock with TwistLoc Remote Dual-Lockout
• Hydraulic Shimano Deore disc brake
• Integrated ANT+/Bluetooth wheel sensor for tracking speed and distance travelled, can be paired with Cannondale app, operates with 1 x CR2032 battery
• 55 mm chainline
• SRAM UDH universal derailleur hanger

Technology:

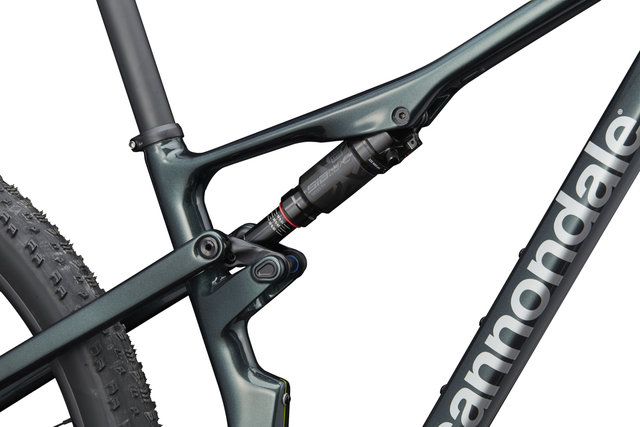

FlexPivot
The FlexPivot construction is clearly recognisable by the striking flat areas of the chainstays. These not only serve to save weight, but also provide a virtual Horst link pivot point. The advantages compared to a classic pivot point with ball bearings are clear: FlexPivot is lighter, stiffer, more durable, and requires no maintenance.

Geometry:

S:

Recommended Height:

154 - 165 cm

Stack:

597 mm

Reach:

425 mm

Seat Tube Length:

380 mm

Effective Top Tube Length:

597 mm

Head Tube Length:

90 mm

Chainstay Length:

434 mm

Wheelbase:

1140 mm

Bottom Bracket Height:

334 mm

BB Drop:

42 mm

Effective Seat Tube Angle:

75.5°

Virtual Seat Tube Angle:

69.2°

Head Tube Angle:

66.6°

Standover Height:

736 mm

M:

Recommended Height:

162 cm - 175 cm

Stack:

597 mm

Reach:

450 mm

Seat Tube Length:

400 mm

Effective Top Tube Length:

597 mm

Head Tube Length:

90 mm

Chainstay Length:

434 mm

Wheelbase:

1169 mm

Bottom Bracket Height:

334 mm

BB Drop:

42 mm

Effective Seat Tube Angle:

75.5°

Virtual Seat Tube Angle:

71.0°

Head Tube Angle:

66.6°

Standover Height:

744 mm

L:

Recommended Height:

172 cm - 182 cm

Stack:

607 mm

Reach:

475 mm

Seat Tube Length:

445 mm

Effective Top Tube Length:

625 mm

Head Tube Length:

100 mm

Chainstay Length:

442 mm

Wheelbase:

1202 mm

Bottom Bracket Height:

334 mm

BB Drop:

42 mm

Effective Seat Tube Angle:

75.5°

Virtual Seat Tube Angle:

71.7°

Head Tube Angle:

66.6°

Standover Height:

752 mm

XL:

Recommended Height:

180 cm - 195 cm

Stack:

616 mm

Reach:

510 mm

Seat Tube Length:

500 mm

Effective Top Tube Length:

669 mm

Head Tube Length:

110 mm

Chainstay Length:

446 mm

Wheelbase:

1245 mm

Bottom Bracket Height:

334 mm

BB Drop:

42 mm

Effective Seat Tube Angle:

75.5°

Virtual Seat Tube Angle:

71.7°

Head Tube Angle:

66.6°

Standover Height:

763 mm

Manufacturer Number:

C24403U

Shipping Notice:

The shipment is sent pre-assembled by a forwarding agent.
The delivery time is extended by 2-5 days, depending on the overall volume of orders.
For individual consultation, please contact our customer service team.

Contents:

• 1 x Mountain Bike Cannondale Scalpel 3 carbon 29"
