CeramicSpeed BSA Shimano Road Bottom Bracket

Components that make the difference: bottom brackets with ceramic bearings by CeramicSpeed

CeramicSpeed bottom brackets guarantee you the lowest possible friction, optimised power transfer and maximum durability and also help you save watts and reach the finish line faster.

For hazard warnings, safety and application information for the included grease, please see CeramicSpeed UFO All Round Grease.

Specifications:

Application:

Road, Triathlon & Time Trial

Type:

BSA

Shell Width:

68 mm

Axle Diameter:

24 mm

Technical Information:

Bearings:

61805 ceramic

Compatibility:

• Shimano Hollowtech II cranks
• FSA cranks with a 24 mm axle
• Rotor cranks with a 24 mm axle

Features:

• high-performance bearings with special ceramic balls made of grade 3 silicon nitride (best achievable degree for ceramic bearings)
• ball bearing retainer made of reinforced polyamide, race made of hardened steel with polished channel
• CeramicSpeed bearing balls: 15% harder, 100% smoother and 99% more resilient than commercially available ceramic balls
• reduced friction: smoother running, more performance
• handmade in Denmark

Technology:

Ceramic Bearings by CeramicSpeed
CeramicSpeed ceramic balls are rounder, harder, smoother, lighter and more resilient than steel balls and ceramic balls from other manufacturers. CeramicSpeed ceramic bearings therefore last 3 to 5 times longer than other commercially available bearings. All CeramicSpeed bearings are manufactured by hand in Denmark under clean room conditions and are subject to a strict four-stage control procedure. Among other things, the size of the ceramic balls is checked down to the thousandth of a millimetre. Tests are then carried out in the laboratory or preferably by professionals in training and competition. CeramicSpeed bottom brackets guarantee you the lowest possible friction, optimised power transfer and maximum durability and also help you save watts and reach the finish line faster. It's not about seconds, it's about minutes!

Manufacturer Numbers:

black:

101307

red:

101309

Contents:

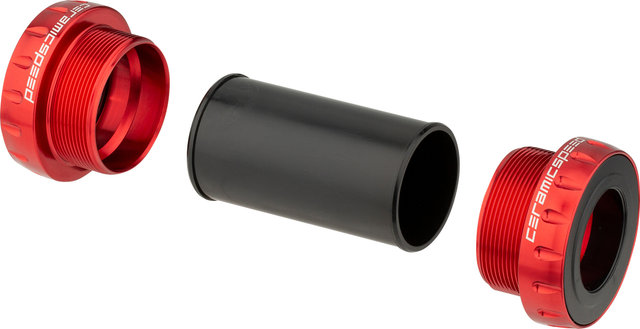

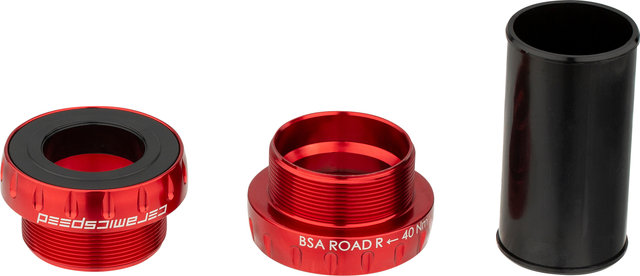

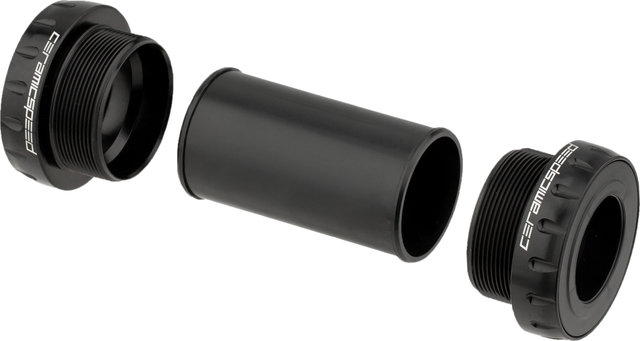

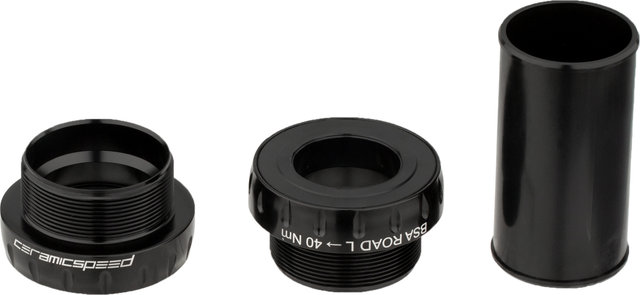

• 1 x CeramicSpeed BSA right bearing cup with ceramic bearings
• 1 x CeramicSpeed BSA left bearing cup with ceramic bearings
• 1 x bottom bracket centre sleeve
• 1 x CeramicSpeed grease
• 2 x dust caps with integrated spacers
• 1 x sticker sheet

Order Together:

• Dual Socket bottom bracket tool
