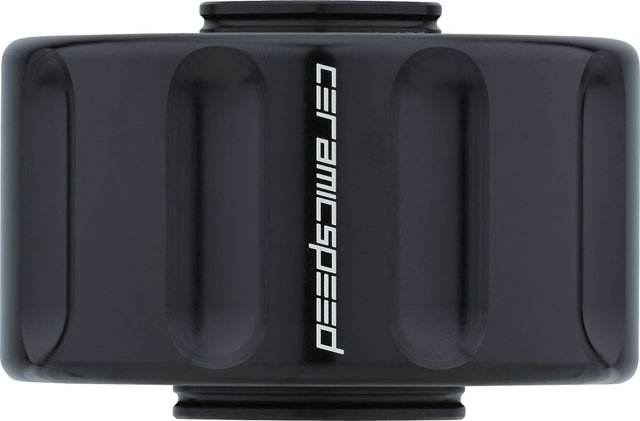

CeramicSpeed Dual Socket T47 / Colnago T45 Bottom Bracket Tool

This two-sided bottom bracket tool from CeramicSpeed is used for installing and removing T47/86 or T47/77 bottom brackets as well as T45 Colnago Threadfit bottom brackets.

Specifications:

Function:

installation & removal of bottom brackets

Tool Type:

special tool

Type:

multi-tooth

Drive:

Square 3/8"

Compatibility:

• Side A: T47/86, T47/77 for Shimano, SRAM GXP, Campagnolo UT, 30 mm, SRAM DUB
• Side B: T45 (Colnago Threadfit 82.5) for Shimano, SRAM GXP, Campagnolo UT, 30 mm, SRAM DUB

Technical Information:

Material:

aluminium

Features:

• two sides with 16 cams each

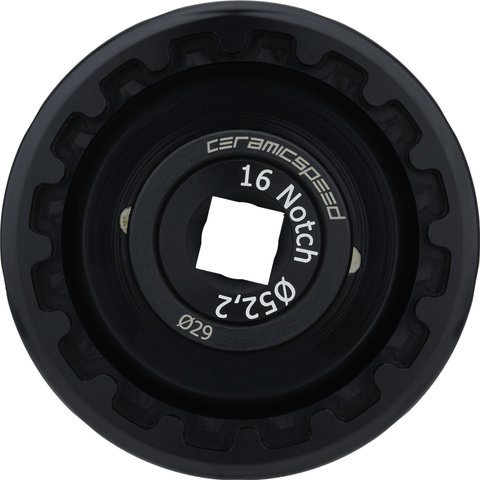

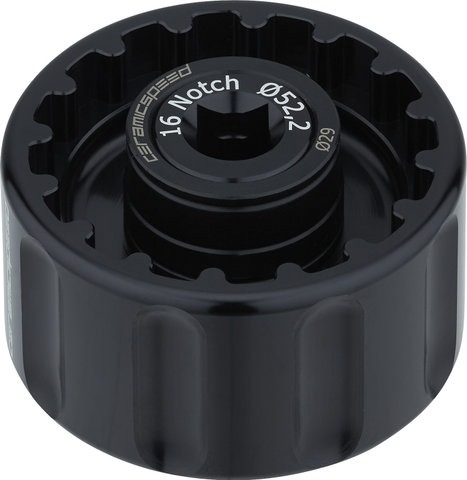

• Side A with 52.2 mm diameter and 48.12 mm cam diameter for T47/86, T47/77

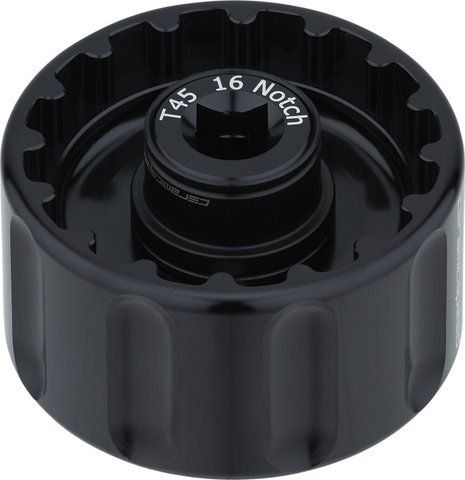

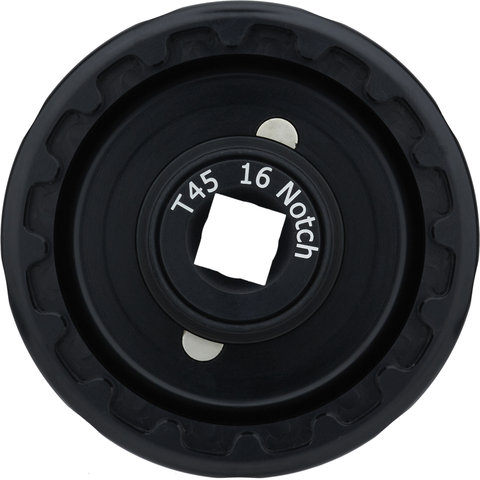

• Side B with 53 mm diameter and 50.3 mm cam diameter for T45
• magnetic, removable and reversible guide inserts for 24, 28, 29 and 30 mm axle diameter, 22.2 mm without insert
• stable handling for easy installation and removal
• precision-machined
• developed and designed in Denmark

Manufacturer Number:

108709

Contents:

• 1 x CeramicSpeed Dual Socket T47 / Colnago T45 bottom bracket tool
• 1 x guide insert 29 mm/30 mm (pre-assembled)
• 1 x guide insert 24 mm/28 mm (pre-assembled)
