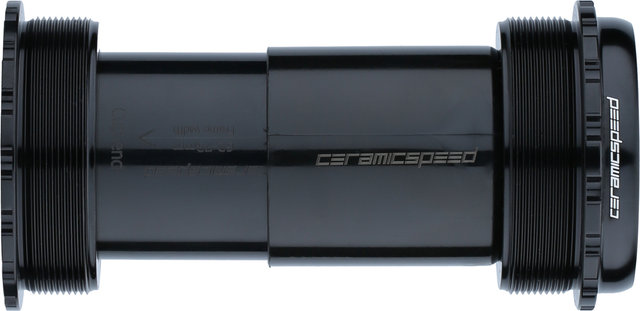

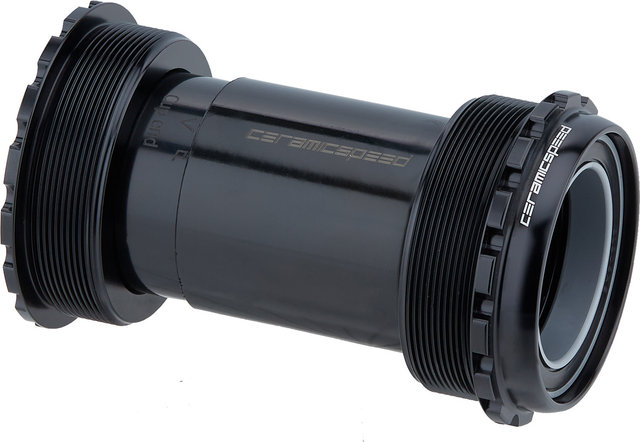

CeramicSpeed T47a 30 mm Coated Bottom Bracket

CeramicSpeed T47a 30 mm coated bottom bracket with smooth-running and particularly durable ceramic bearings

The asymmetrically designed CeramicSpeed T47a 30 mm coated bottom bracket is used to install a crank with 30 mm axle in a T47a frame with 77 mm bottom bracket width. It features ceramic bearings that are harder than average, supple and resilient, with metal-coated races for added durability. In the T47a standard, which is used by Factor and other manufacturers, the left bearing cup is inside the shell, while the right bearing cup is mounted outside.

For hazard warnings, safety and application information for the included grease, please see CeramicSpeed All Round Grease.

Specifications:

Application:

Road, Triathlon & Time Trial

Type:

T47a

Shell Width:

77 mm

Axle Diameter:

30 mm

Technical Information:

Bearings:

Ceramic

Compatibility:

• all cranks with 30 mm axle

Features:

• high-performance bearings with special ceramic balls made of grade 3 silicon nitride (best achievable degree for ceramic bearings)
• CeramicSpeed bearing balls: 15% harder, 100% smoother and 99% more resilient than commercially available ceramic bearing balls
• ball bearing retainer made of reinforced polyamide, race made of hardened steel with polished channel
• additional metal-coated race for more performance and durability
• reduced friction: smoother running
• handmade in Denmark

Technology:

Ceramic Bearings by CeramicSpeed
CeramicSpeed ceramic balls are rounder, harder, smoother, lighter and more resilient than steel balls and ceramic balls from other manufacturers. CeramicSpeed ceramic bearings therefore last 3 to 5 times longer than other bearings on the market. All CeramicSpeed bearings are handmade in Denmark under clean room conditions and subjected to a strict four-stage inspection process. Among other things, the size of the ceramic balls is checked down to the thousandth of a millimetre. Tests are then carried out in the laboratory or preferably by professionals in training and competition. CeramicSpeed products guarantee you the lowest possible friction, optimised power transfer and maximum durability and also help you save watts and reach the finish line faster. It's not about seconds, it's about minutes!

Coated
Coated products from CeramicSpeed offer the ultimate gains in terms of performance and durability. This is due to a unique coating that increases the hardness of the races so that, in combination with the smoothness of CeramicSpeed ball bearings, virtually no wear on the bearings can be detected. The coating is a metal layer that is 75% harder than hardened steel. It is applied very thinly (0.003 mm) and evenly over the entire surface of the race and is used both internally and externally for optimum results.

Manufacturer Number:

109652

Contents:

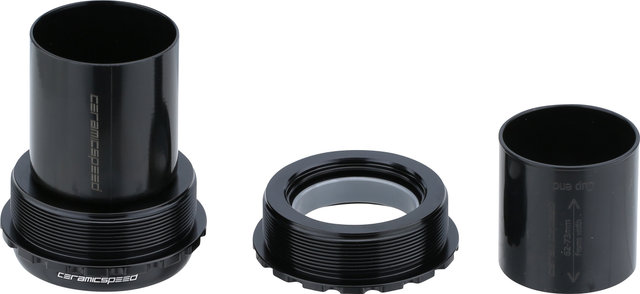

CeramicSpeed T47a 30 mm coated bottom bracket, consisting of:

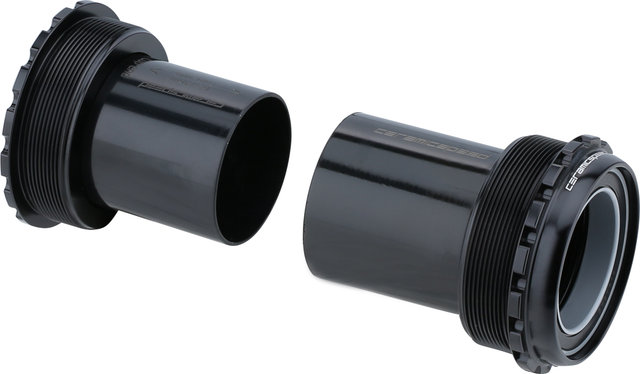

• 1 x right bearing cup with coated ceramic bearings and dust cap
• 1 x left bearing cup with coated ceramic bearings and dust cap
• 1 x bottom bracket centre sleeve, two-piece

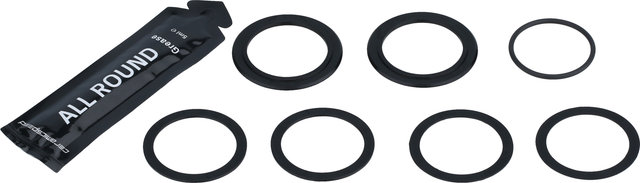

• 1 x spacer kit
• 1 x CeramicSpeed All Round grease
• 1 x sticker sheet

Order Together:

• Dual Socket T47 bottom bracket tool
