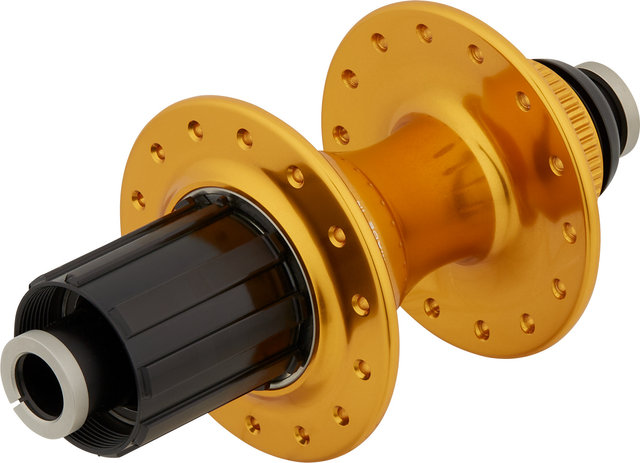

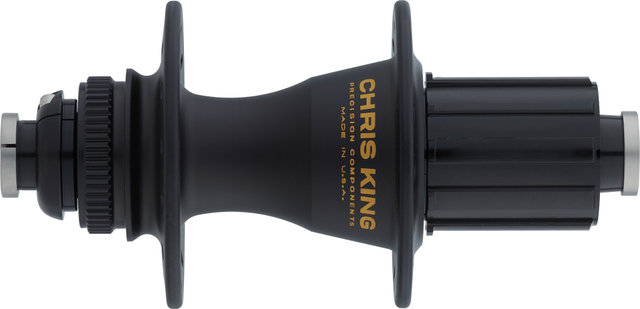

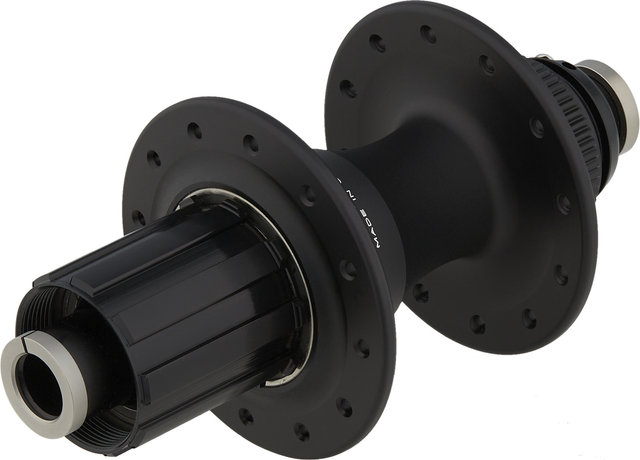

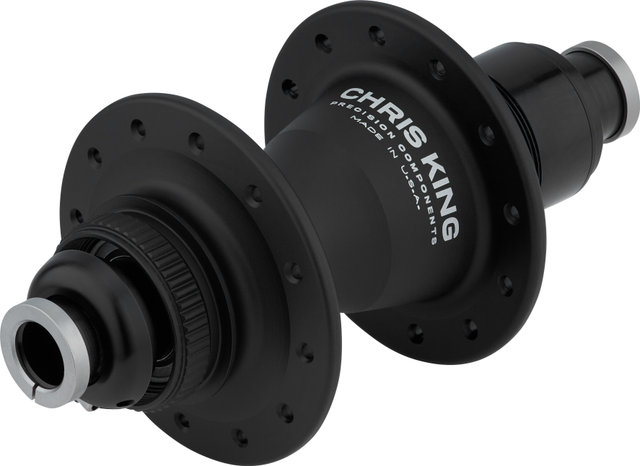

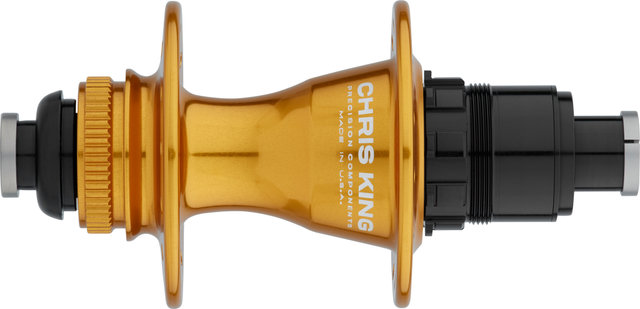

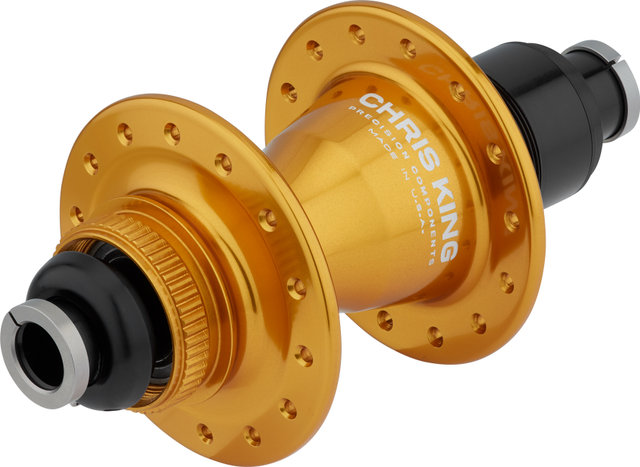

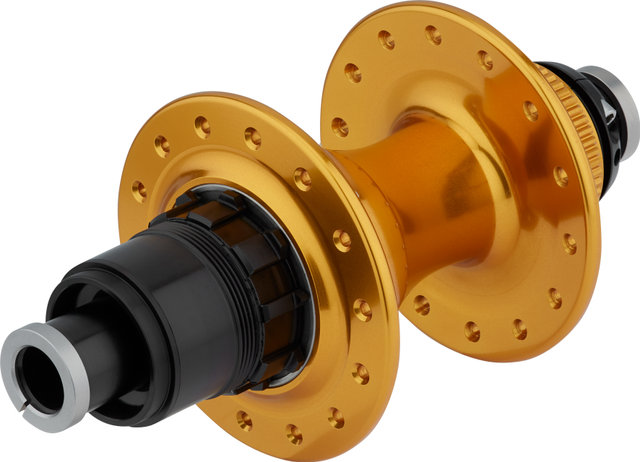

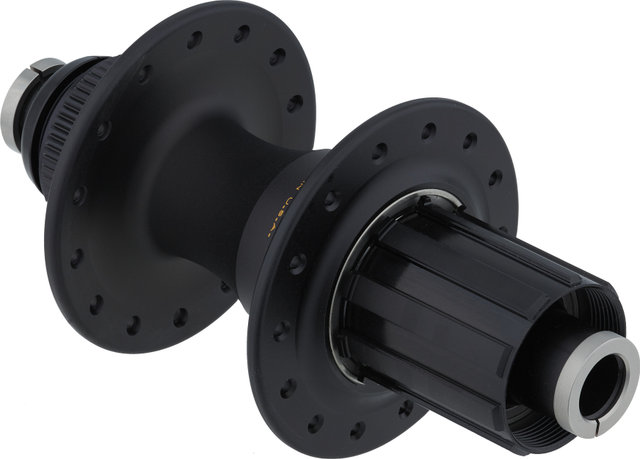

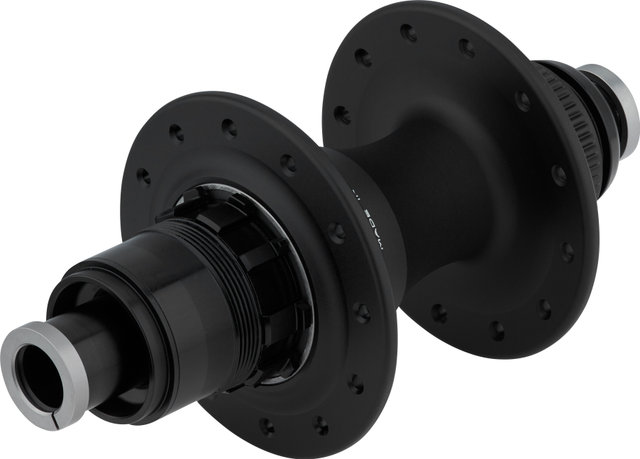

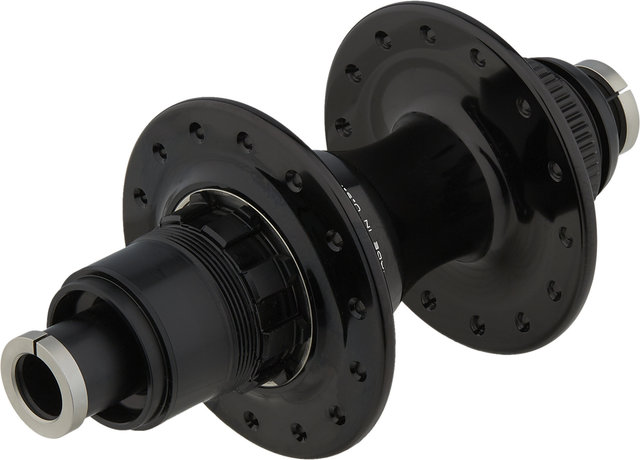

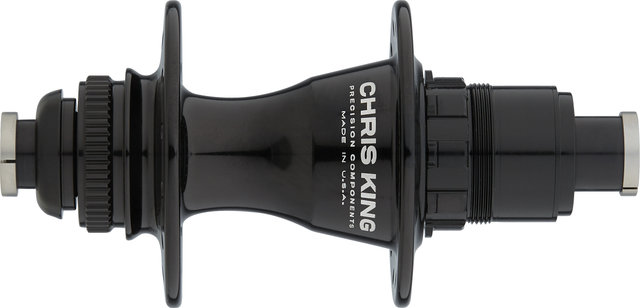

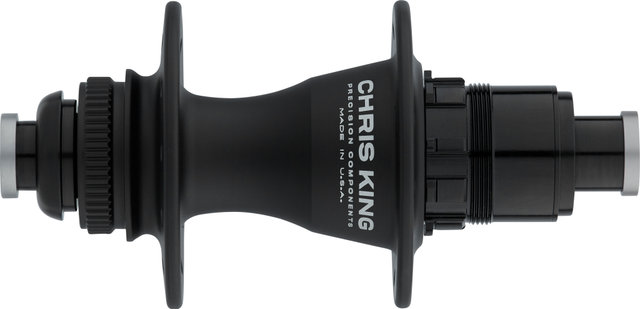

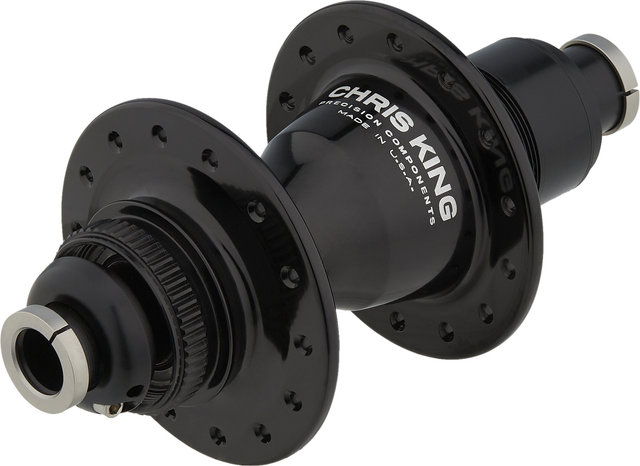

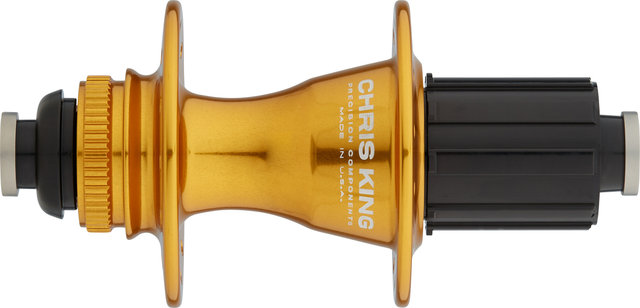

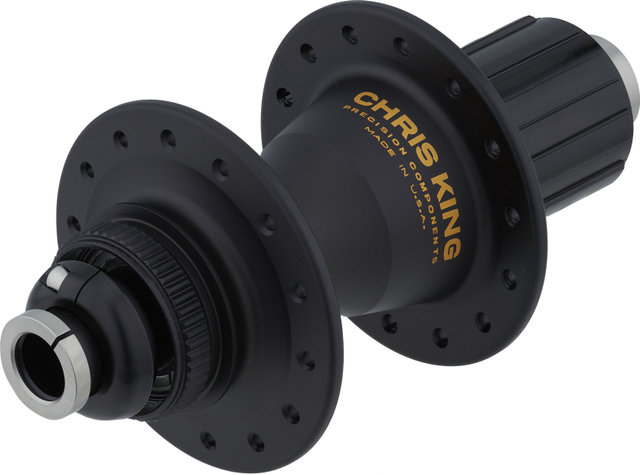

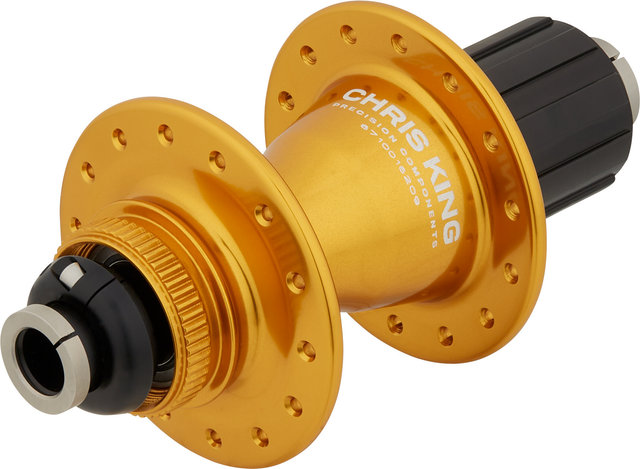

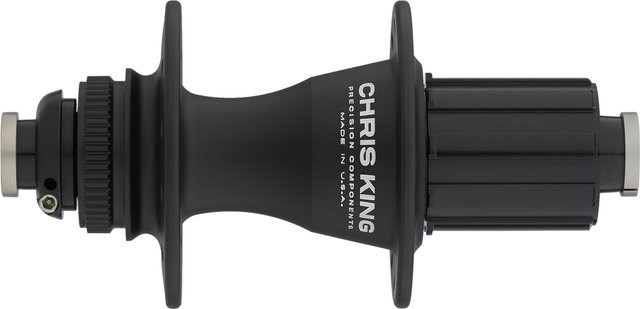

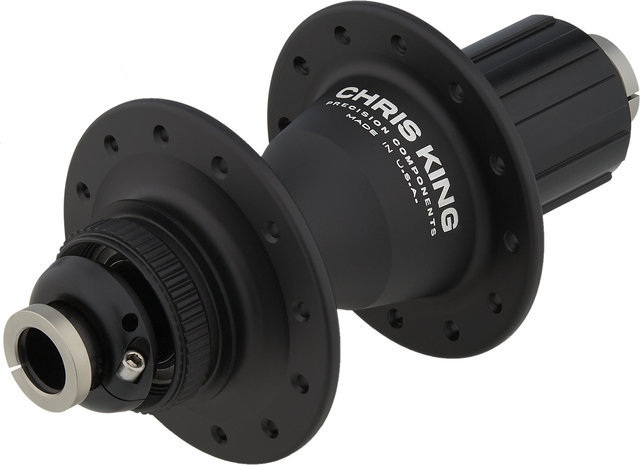

Chris King R45 Center Lock Disc Rear Hub
Item number: 83949
Specifications:
- Series:
- R45
- Application:
- Road, Gravel
- Brake Type:
- Center Lock Disc
- Freehub Body Type:
- stainless steel, 45-tooth RingDrive
Technical Information:
- Body Material:
- aluminium
- Bearings:
- steel bearings
Features:
- lightweight, durable hub body
- smooth-running Chris King precision bearings
- iconic Chris King freehub sound
- developed and manufactured in Portland, Oregon (USA)
Note from the manufacturer:
The SM-HB20 lockring is required for mounting the freehub body on the hub.Models:
12 x 142 mm / 24 hole / Shimano:- Over Locknut Dimension:
- 12 x 142 mm thru-axle
- Spoke Hole Count:
- 24 hole
- Freehub:
- Shimano Road
- Gearing:
- 8-/9-/10-/11-/12-speed
- Flange Distance (L/R):
- 33 mm / 18.7 mm
- Partial Bolt Circle Diameter (L/R):
- 57.4 mm / 57.4 mm
- Manufacturer Numbers:
- EAB1AA1 (black), EAY1AA1 (gold), EAB2AA1 (matte jet), EAM2AA1 (matte mango), EAH2AA1 (matte slate), EAT2AA1 (matte turquoise), EAN1AA1 (navy), EAR1AA1 (red), EAS1AA1 (silver), EABYAA1 (two tone-black-gold)
12 x 142 mm / 28 hole / Shimano:
- Over Locknut Dimension:
- 12 x 142 mm thru-axle
- Spoke Hole Count:
- 28 hole
- Freehub:
- Shimano Road
- Gearing:
- 8-/9-/10-/11-/12-speed
- Flange Distance (L/R):
- 33 mm / 18.7 mm
- Partial Bolt Circle Diameter (L/R):
- 57.4 mm / 57.4 mm
- Manufacturer Numbers:
- EAB1BA1 (black), EAY1BA1 (gold), EAB2BA1 (matte jet), EAM2BA1 (matte mango), EAH2BA1 (matte slate), EAT2BA1 (matte turquoise), EAN1BA1 (navy), EAR1BA1 (red), EAS1BA1 (silver), EABYBA1 (two tone-black-gold)
12 x 142 mm / 24 hole / SRAM XDR:
- Over Locknut Dimension:
- 12 x 142 mm thru-axle
- Spoke Hole Count:
- 24 hole
- Freehub:
- SRAM XDR
- Gearing:
- 11-/12-speed
- Flange Distance (L/R):
- 33 mm / 18.7 mm
- Partial Bolt Circle Diameter (L/R):
- 57.4 mm / 57.4 mm
- Manufacturer Numbers:
- EAB1AA4 (black), EAY1AA4 (gold), EAB2AA4 (matte jet), EAM2AA4 (matte mango), EAH2AA4 (matte slate), EAT2AA4 (matte turquoise), EAN1AA4 (navy), EAR1AA4 (red), EAS1AA4 (silver), EABYAA4 (two tone-black-gold)
12 x 142 mm / 28 hole / SRAM XDR:
- Over Locknut Dimension:
- 12 x 142 mm thru-axle
- Spoke Hole Count:
- 28 hole
- Freehub:
- SRAM XDR
- Gearing:
- 11-/12-speed
- Flange Distance (L/R):
- 33 mm / 18.7 mm
- Partial Bolt Circle Diameter (L/R):
- 57.4 mm / 57.4 mm
- Manufacturer Numbers:
- EAB1BA4 (black), EAY1BA4 (gold), EAB2BA4 (matte jet), EAM2BA4 (matte mango), EAH2BA4 (matte slate), EAT2BA4 (matte turquoise), EAN1BA4 (navy), EAR1BA4 (red), EAS1BA4 (silver), EABYBA4 (two tone-black-gold)
Contents:
- 1 x Chris King R45 Center Lock Disc rear hub
