Cinelli

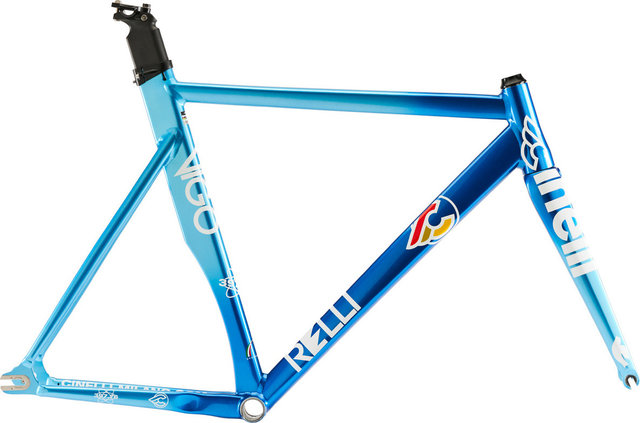

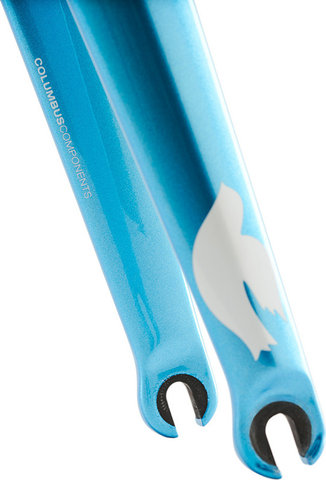

Designed for both men and women who love the thrill of road and track cycling, this bike frame combines the best of speed, durability, and aesthetics. Crafted from high-quality aluminum, the frame promises a lightweight yet robust ride, perfect for those looking to push their limits on the asphalt. The carbon fork adds to the bike's agility, ensuring precise steering and absorption of road vibrations for a smoother ride.

This frame is compatible with a 1x chainring setup, streamlining the bike's profile and reducing maintenance without sacrificing performance. The housing width of 68 mm accommodates a BSA bottom bracket standard, offering reliable and widespread compatibility. With its aero seatpost design, this frame is built for speed, cutting through the air with less resistance.

Rim brakes are the choice for this design, providing reliable stopping power and a classic aesthetic. The bike accommodates a versatile range of wheel sizes, including the standard 28" size, with wheel standards of 10 x 120 mm and 9 x 100 mm, ensuring a wide range of options for customization and optimization according to riding preferences.

Specifically designed without a front derailleur mount, this frame emphasizes a streamlined, efficient setup for riders looking to maximize their performance on the road or track. Whether you're sprinting on the flat or attacking a climb, this bike frame is engineered to deliver top-tier performance and exhilarating rides.

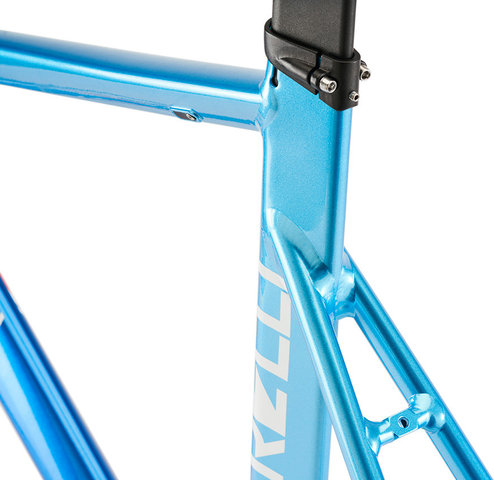

80s nazionale blu/45 mm/1 1/8" - 1,5" tapered/XS:

Recommended Rider Height:

156 - 165 cm

Head Tube Length:

95 mm

Seat Tube Length:

520 mm

Seat Tube Angle:

73.5

Chainstay Length:

377 mm

Head Tube Angle:

73

Stack:

478 mm

Wheelbase:

914 mm

Reach:

359 mm

BB Drop:

50 mm

Effective Top Tube Length:

500 mm

80s nazionale blu/45 mm/1 1/8" - 1,5" tapered/S:

Recommended Rider Height:

166 - 171 cm

Seat Tube Length:

550 mm

Head Tube Length:

115 mm

Head Tube Angle:

73

Stack:

497 mm

Wheelbase:

944 mm

Reach:

384 mm

Chainstay Length:

377 mm

Seat Tube Angle:

74

BB Drop:

50 mm

Effective Top Tube Length:

526 mm

80s nazionale blu/45 mm/1 1/8" - 1,5" tapered/M:

Recommended Rider Height:

172 - 178 cm

Seat Tube Length:

570 mm

Head Tube Length:

130 mm

Head Tube Angle:

73.5

Stack:

514 mm

Wheelbase:

968 mm

Reach:

410 mm

Chainstay Length:

377 mm

Seat Tube Angle:

74

BB Drop:

50 mm

Effective Top Tube Length:

558 mm

80s nazionale blu/45 mm/1 1/8" - 1,5" tapered/L:

Recommended Rider Height:

179 - 186 cm

Seat Tube Length:

590 mm

Head Tube Length:

145 mm

Head Tube Angle:

74

Stack:

530 mm

Wheelbase:

993 mm

Reach:

435 mm

Chainstay Length:

377 mm

Seat Tube Angle:

74

BB Drop:

50 mm

Effective Top Tube Length:

587 mm

80s nazionale blu/45 mm/1 1/8" - 1,5" tapered/XL:

Recommended Rider Height:

187 - 193 cm

Seat Tube Length:

605 mm

Head Tube Length:

160 mm

Head Tube Angle:

74

Stack:

545 mm

Wheelbase:

1022 mm

Reach:

460 mm

Chainstay Length:

377 mm

Seat Tube Angle:

73.5

BB Drop:

50 mm

Effective Top Tube Length:

621 mm

• 80s nazionale blu/45 mm/1 1/8" - 1,5" tapered/XS: 11VGC3520ENB
• 80s nazionale blu/45 mm/1 1/8" - 1,5" tapered/S: 11VGC3550ENB
• 80s nazionale blu/45 mm/1 1/8" - 1,5" tapered/M: 11VGC3570ENB
• 80s nazionale blu/45 mm/1 1/8" - 1,5" tapered/L: 11VGC3590ENB
• 80s nazionale blu/45 mm/1 1/8" - 1,5" tapered/XL: 11VGC3605ENB
