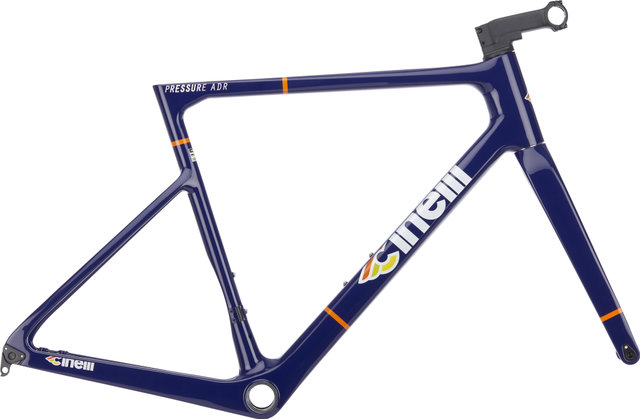

Cinelli Pressure ADR Carbon Frame Kit
Item number: 95309
Introducing the ultimate road warrior, designed for both men and women who demand performance and style. Crafted with a carbon frame and fork, this bike promises not only a lightweight ride but also unmatched durability for those long stretches on the road. Compatible with 28" wheels, it's engineered for speed and precision handling. The bike is equipped to support disc brakes up to 160 mm both at the front and rear, ensuring you have the stopping power needed for any situation. Its sleek design is not just about aesthetics; it's about aerodynamics and speed, making every ride exhilarating. Whether you're tackling a challenging climb or cruising on flat terrain, this bike is your perfect companion. It's not just a bike; it's an extension of your ambition on the road, offering an unparalleled cycling experience without any compromise. Note, this model is purely mechanical, keeping you connected to the ride without the complexity of electronic devices. Get ready to push your limits and redefine your road cycling experience.
Specifications:
- Application:
- Road
- Brake Type:
- disc
- Wheel size:
- 28"
- Housing Width:
- 86,5 mm
- Frame material:
- Carbon
- Fork material:
- Carbon
- Gender:
- Women's, Men´s
Technical Information:
- Belt Compatibility:
- No
- :
- 27,2 mm
- Wheel Standard:
- 12 x 100 mm (Standard), 12 x 142 mm (Standard)
- Brake Mount:
- Flat Mount
- Front Derailleur Mount:
- Direct Mount (High-Direct)
Approved For:
- Max. Disc Brake Size Rear:
- 160 mm
- Max. Disc Brake Size Front:
- 160 mm
- Max. Fork Length:
- 373 mm
- Chainring Count Compatibility:
- 1x, 2x
Features:
- High-performance road bike frame made from carbon, designed for both men and women, offering a lightweight and responsive ride.
- Supports up to 160 mm disc brake size for both front and rear, ensuring powerful and reliable stopping power.
- Crafted with a carbon fork to reduce weight and absorb road vibrations, enhancing comfort during long rides.
- Compatible with 28" wheels, optimizing speed and efficiency for road cycling.
- Designed exclusively for disc brake systems, providing improved braking performance in all weather conditions.
- Not compatible with belt drives, focusing on traditional and direct power transfer systems for road cycling.
Geometry:
midnight scream/XXS/50 mm:
- Seat Tube Length:
- 450 mm
- Top Tube Length:
- 519 mm
- Head Tube Length:
- 112 mm
- Head Tube Angle:
- 71
- Wheelbase:
- 978 mm
- BB Drop:
- 70 mm
- Seat Tube Length:
- 480 mm
- Top Tube Length:
- 537 mm
- Head Tube Length:
- 123 mm
- Head Tube Angle:
- 71.5
- Wheelbase:
- 988 mm
- BB Drop:
- 70 mm
- Seat Tube Length:
- 510 mm
- Top Tube Length:
- 555 mm
- Head Tube Length:
- 138 mm
- Head Tube Angle:
- 71.8
- Wheelbase:
- 998 mm
- BB Drop:
- 70 mm
- Seat Tube Length:
- 540 mm
- Top Tube Length:
- 572 mm
- Head Tube Length:
- 158 mm
- BB Drop:
- 70 mm
- Head Tube Angle:
- 72
- Wheelbase:
- 1008 mm
- Top Tube Length:
- 590 mm
- Seat Tube Length:
- 570 mm
- Head Tube Length:
- 180 mm
- Head Tube Angle:
- 72.7
- Wheelbase:
- 1017 mm
- BB Drop:
- 70 mm
- Top Tube Length:
- 519 mm
- Seat Tube Length:
- 450 mm
- Head Tube Length:
- 112 mm
- Head Tube Angle:
- 71
- Wheelbase:
- 978 mm
- BB Drop:
- 70 mm
- Top Tube Length:
- 537 mm
- Seat Tube Length:
- 480 mm
- Head Tube Length:
- 123 mm
- Head Tube Angle:
- 71.5
- Wheelbase:
- 988 mm
- BB Drop:
- 70 mm
- Top Tube Length:
- 555 mm
- Seat Tube Length:
- 510 mm
- Head Tube Length:
- 138 mm
- Head Tube Angle:
- 71.8
- Wheelbase:
- 998 mm
- BB Drop:
- 70 mm
- Top Tube Length:
- 572 mm
- Seat Tube Length:
- 540 mm
- Head Tube Length:
- 158 mm
- Head Tube Angle:
- 72
- Wheelbase:
- 1008 mm
- BB Drop:
- 70 mm
- Top Tube Length:
- 590 mm
- Seat Tube Length:
- 570 mm
- Head Tube Length:
- 180 mm
- Head Tube Angle:
- 72.7
- Wheelbase:
- 1017 mm
- BB Drop:
- 70 mm
Manufacturer Number:
- midnight scream/XXS/50 mm: 11PVD2450DPV
- midnight scream/XS/50 mm: 11PVD2480DPV
- midnight scream/S/50 mm: 11PVD2510DPV
- midnight scream/M/50 mm: 11PVD2540DPV
- midnight scream/L/50 mm: 11PVD2570DPV
- sunfaded laser blue/XXS/50 mm: 11PVD2450ESB
- sunfaded laser blue/XS/50 mm: 11PVD2480ESB
- sunfaded laser blue/S/50 mm: 11PVD2510ESB
- sunfaded laser blue/M/50 mm: 11PVD2540ESB
- sunfaded laser blue/L/50 mm: 11PVD2570ESB
Contents:

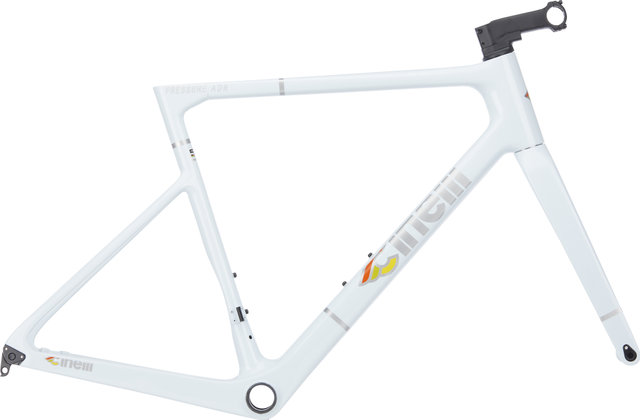

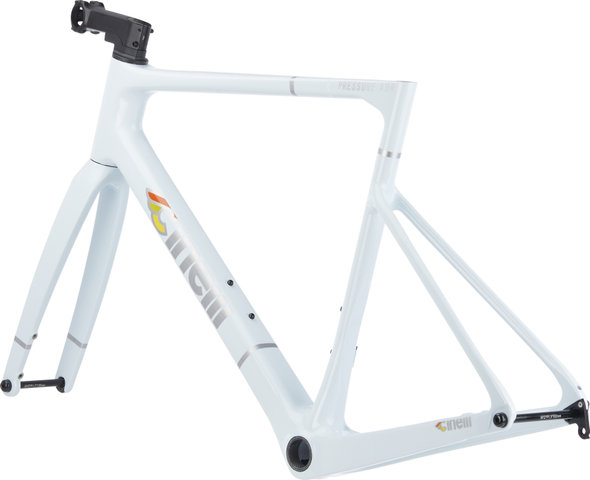

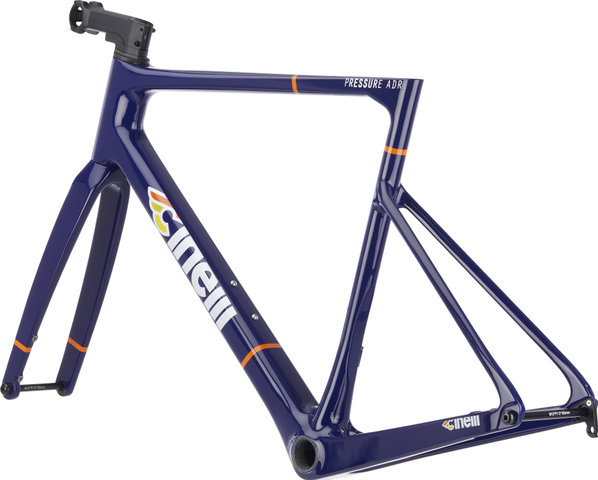

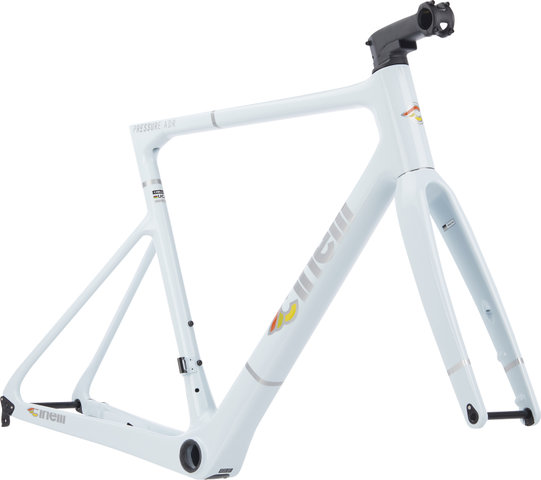

- 1 x Cinelli Pressure ADR Carbon 28" frame

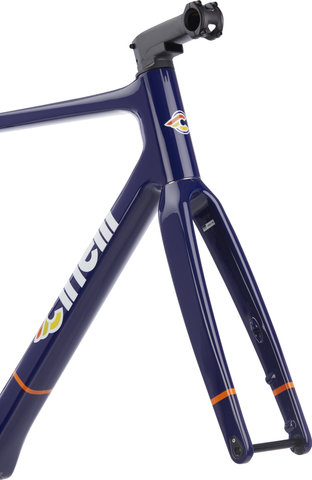

- 1 x Columbus Carbon Disc 28" rigid fork

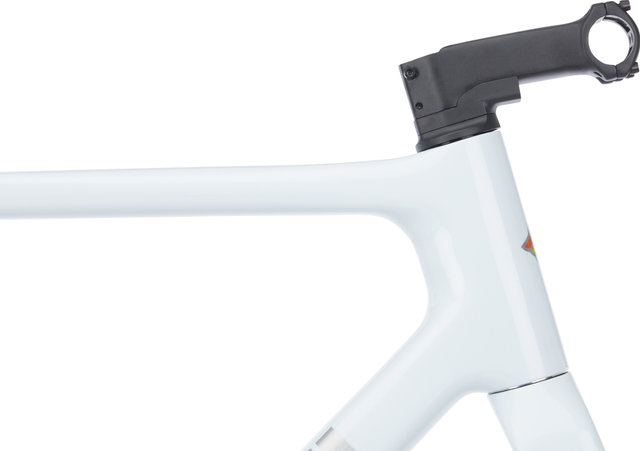

- 1 x Stem
- 1 x Expander

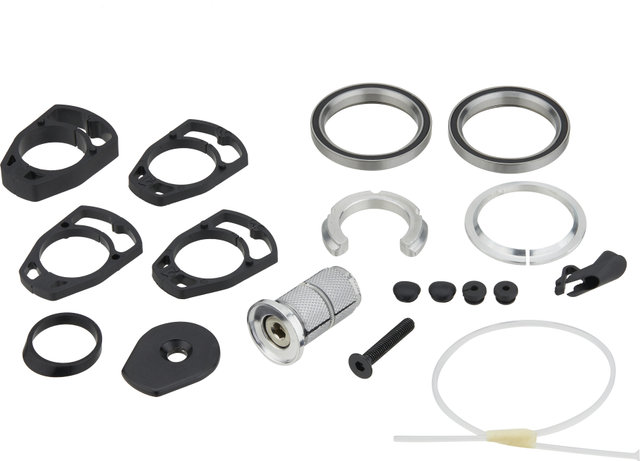

- 1 x Headset IS 52/28.6 - IS 52/40
- Spacers
Weight:
- sunfaded laser blue/S/50 mm: 1410 g
