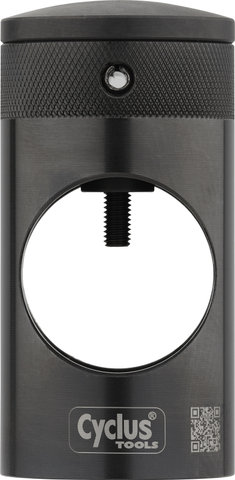

Cyclus Tools Impactor for Headset Star Nut

Specifications:

Function:

Fork maintenance and repair

Tool Type:

special tool

Compatibility:

1" / 1 1/8" / 1.5"

Technical Information:

Material:

steel

Features:

• tool for precise installation of the star nut in the steerer tube with a previously defined insertion depth
• suitable for 1" , 1 1/8" and 1.5" crown race with the corresponding adapter bushing

Application:

1. Screw the required adapter hand-tight into the impactor.
2. Screw the star nut to be fitted onto the grub screw as far as it will go using the cross hole.
3. Place the tool on the steerer tube and hammer it in as far as it will go.
4. Remove the setter from the steerer tube by turning the knurled screw to the left.

Manufacturer Number:

720033

Contents:

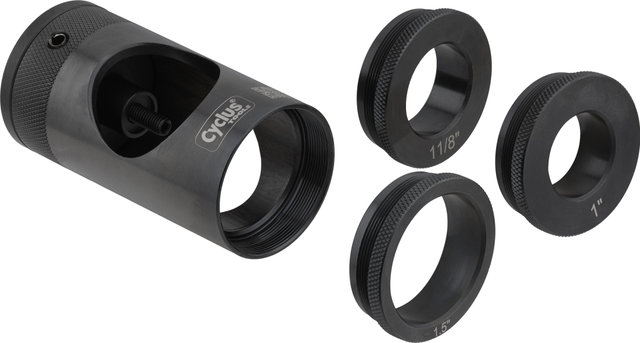

• 1 x Cyclus Tools impactor for headset star nut

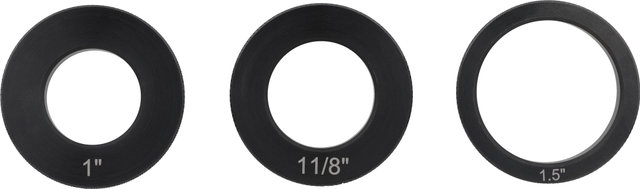

• 1 x adapter bushing 1"
• 1 x adapter bushing 1 1/8"
• 1 x adapter bushing 1.5"
