Cyclus Tools Universal Impactor for Crown Race

Specifications:

Function:

Fork maintenance and repair

Tool Type:

special tool

Compatibility:

1" / 1 1/8" / 1.5" / 1.8"

Technical Information:

Material:

steel, composite

Features:

• tool for quickly and precisely installing the crown race on the fork crown
• 100 per cent centring thanks to integrated, self-adjusting guide
• chamfered adapter for crown races with lip seals
• for use with a suitable hammer
• suitable for 1" (max. steerer tube length 340 mm), 1 1/8" (max. steerer tube length 355 mm), 1.5" (max. steerer tube length 315 mm) and 1.8" crown races

Note from the manufacturer:

Ensure that the adapter sleeves are seated accurately in the impactor to prevent the crown race from tilting. Grease the crown race seat lightly with bearing grease before installing it. The upper diameter of the steerer tube is decisive for the maximum possible steerer tube length.

Manufacturer Number:

720382

Contents:

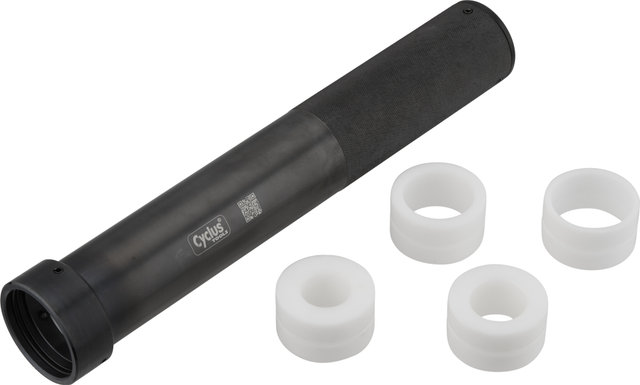

• 1 x Cyclus Tools Universal impactor for crown race

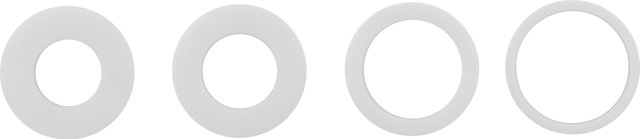

• 1 x adapter sleeve 1"
• 1 x adapter sleeve 1 1/8"
• 1 x adapter sleeve 1.5"
• 1 x adapter sleeve 1.8"
