DT Swiss - black/140 mm/15 mm Thru Axle/1 1/8" - 1,5" tapered/44 mm/29"/110 mm

DT Swiss

Item number: 92016

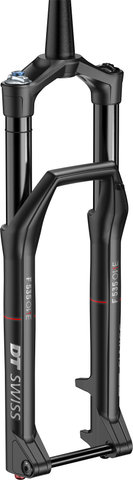

Discover the DT Swiss F 535 ONE 29" Boost Suspension Fork for your mountain bike with our cutting-edge suspension fork, designed for the all-mountain and cross-country rider who demands the best in performance and reliability. Crafted with a robust aluminum steerer tube and crown, paired with lightweight magnesium lower legs, this fork combines durability with agility. The 35 mm aluminum stanchion tubes ensure a stiff and responsive ride, allowing you to tackle the toughest trails with confidence. Featuring a thru-axle system (15 x 110 mm) for enhanced stability and a wheel size compatibility of 29 inches, it's built to accommodate modern mountain biking standards. The fork is equipped with air pressure adjustability, offering a customizable spring rate to match your riding style and terrain. Rebound damping is finely tunable, ensuring that you maintain control and traction, while the low-speed compression damping can be set to open, pedal, or lock, giving you the versatility to adapt to changing trail conditions. It supports a maximum disc brake diameter of 203 mm and a tire width up to 2.8 inches, allowing for superior braking power and traction. Designed for e-bikes and pedelecs up to 25 km/h, this fork is ready to electrify your ride. With the option to retrofit a remote for even greater control, this suspension fork is the perfect addition to elevate your mountain biking experience.

Guidelines for Replacing E-bike Components:

Before you replace components on your e-bike, please read through the guidelines for component replacement for CE-marked e-bikes/pedelecs with pedal assistance.

Specifications:

Application:
All Mountain, Cross Country, MTB
Wheel size:
29"

Technical Information:

Rebound Damping:
Yes
Wheel Standard:
15 x 110 mm (Boost)
Crown Material:
Aluminum
Stanchion Material:
Aluminium
Axle System:
Thru Axle (15 x 110 mm)
Lower Leg Material:
Magnesium
Stanchion Tube Diameter:
35 mm
Brake Mount:
Disc PM7 (Direct Mount 180 mm)
Steerer Tube Material:
Aluminum
Remote:
Retrofit
Travel Adjustment:
No
Compression Damping:
Low-Speed, 3 Positionen (Open, Pedal, Lock)
Spring Rate:
Via Air Pressure

Approved For:

Max Tire Size Inches:
2,8"
Max. disc brake diameter:
203 mm

Features:

  • High-performance MTB suspension fork designed for All Mountain and Cross Country riding, featuring advanced damping and air spring technologies for a smooth and responsive ride.
  • Constructed with lightweight magnesium lower legs and aluminum for the steerer and crown, ensuring durability without compromising on weight.
  • Equipped with a thru-axle system (15 x 110 mm) for enhanced stiffness and precise handling, compatible with Boost wheel standards.
  • Offers adjustable low-speed compression damping with three positions (Open, Pedal, Lock) to adapt to varying trail conditions.
  • Supports maximum disc brake diameter of 203 mm and is compatible with disc PM7 (Direct Mount 180 mm) for superior braking performance.
  • E-Bike ready, accommodating E-Bikes & Pedelecs up to 25 km/h, with a maximum tire size of 2.8 inches for optimal traction and comfort on diverse terrains.

Manufacturer Number:

  • black/120 mm/15 mm Thru Axle/1 1/8" - 1,5" tapered/44 mm/29"/110 mm: F535OEHIMFAS46462S
  • black/130 mm/15 mm Thru Axle/1 1/8" - 1,5" tapered/44 mm/29"/110 mm: F535OFHIMFAS46463S
  • black/140 mm/15 mm Thru Axle/1 1/8" - 1,5" tapered/44 mm/29"/110 mm: F535OGHIMFAS46465S
  • black/150 mm/15 mm Thru Axle/1 1/8" - 1,5" tapered/44 mm/29"/110 mm: F535OHHIMFAS46466S
  • black/160 mm/15 mm quick release/1 1/8" - 1,5" tapered/44 mm/29"/110 mm: F535OIHIMFAS46468S

Contents:

- 1 x DT Swiss F 535 ONE 29" Boost suspension fork

Manufacturer:

DT Swiss Deutschland GmbH
Albert-Einstein-Straße 3
59302 Oelde
Germany
