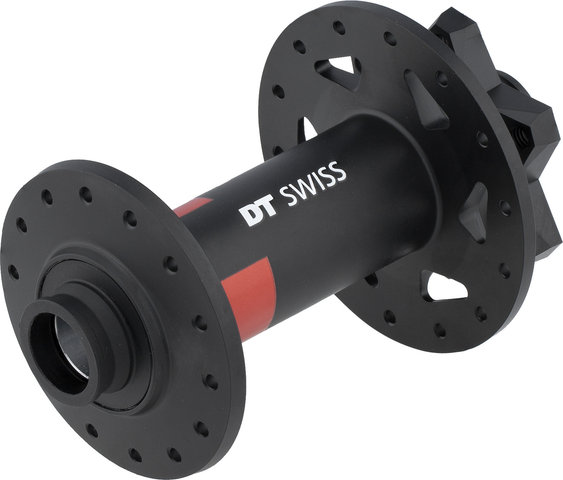

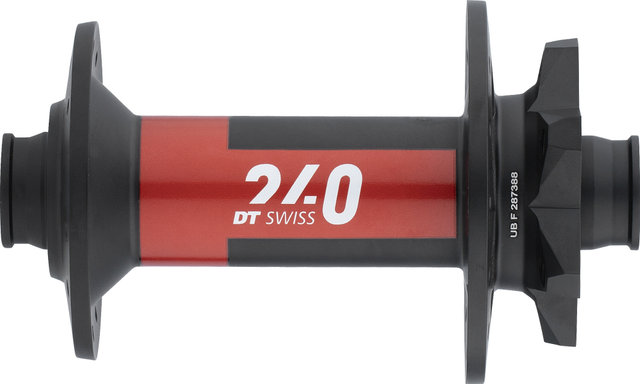

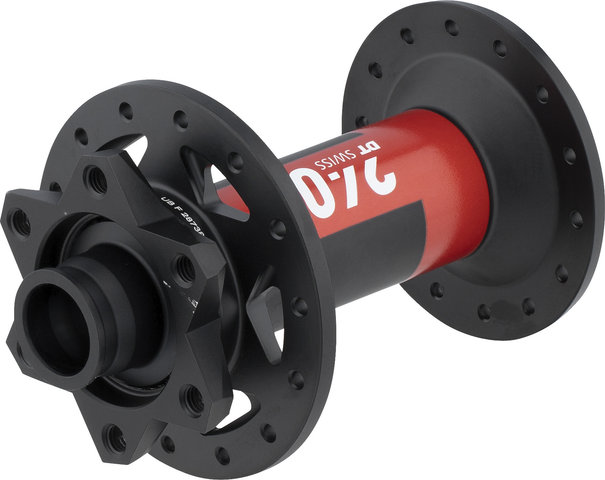

DT Swiss 240 Classic MTB Boost 6-Bolt Disc Front Hub

DT Swiss 240 Classic MTB Boost 6-Bolt Disc front hub - A classic hub with modern standards

The 240 Classic front hub for MTBs from DT Swiss is equipped with Boost-Standard and prepares your bike for extra wide tyres. In addition, Boost hubs are particularly stable due to the strong axle. This means they can withstand use on an enduro bike. Aluminium was chosen as the main material to ensure resilience as well as a light weight. It is designed for J-bend spokes and has a disc brake mount for 6-bolt rotors. The new edition of the Swiss classic impresses with a sportive shape and very easy maintenance. The no-tool concept enables you to forego specialist workshop equipment.

Specifications:

Application:

All Mountain, Cross Country, Enduro

Brake Type:

6-bolt disc

Wheel Standard:

Boost

Technical Information:

Body Material:

aluminium

Bearings:

steel bearings

Seals:

precision seal

Models:

15 x 110 mm / 28 hole:

Over Locknut Dimension:

15 x 110 mm thru-axle

Spoke Hole Count:

28

Flange Distance (L/R):

68.3 mm (27.3 mm/41 mm)

Partial Bolt Circle Diameter (L/R):

57.8 mm/49.4 mm

Manufacturer Number:

H240BDIXR28SA6481S

15 x 110 mm / 32 hole:

Over Locknut Dimension:

15 x 110 mm thru-axle

Spoke Hole Count:

32

Flange Distance (L/R):

68.3 mm (27.3 mm/41 mm)

Partial Bolt Circle Diameter (L/R):

57.8 mm/49.4 mm

Manufacturer Number:

H240BDIXR32SA6481S

20 x 110 mm / 28 hole:

Over Locknut Dimension:

20 x 110 mm thru-axle

Spoke Hole Count:

28

Flange Distance (L/R):

68.3 mm (27.3 mm/41 mm)

Partial Bolt Circle Diameter (L/R):

57.8 mm/49.4 mm

Manufacturer Number:

H240BDEXR28SA7854S

20 x 110 mm / 32 hole:

Over Locknut Dimension:

20 x 110 mm thru-axle

Spoke Hole Count:

32

Flange Distance (L/R):

68.3 mm (27.3 mm/41 mm)

Partial Bolt Circle Diameter (L/R):

57.8 mm/49.4 mm

Manufacturer Number:

H240BDIXR32SA6481S

Contents:

• 1 x DT Swiss 240 Classic MTB front hub
