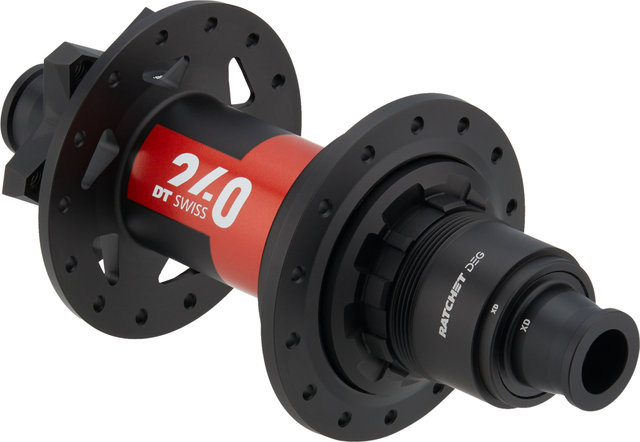

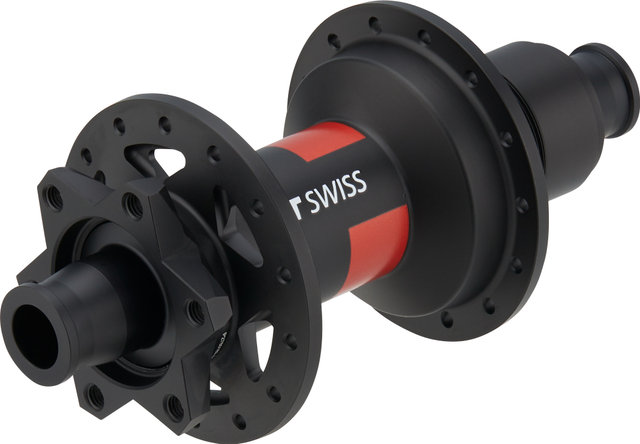

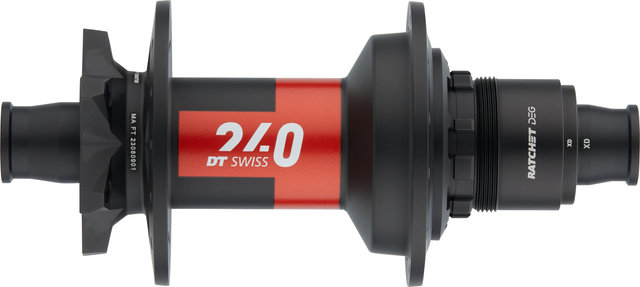

DT Swiss 240 DEG Boost 6-Bolt Disc Rear Hub

The 240 DEG Boost rear hub from DT Swiss with 90-tooth ratchet - the angle makes all the difference

The 240 DEG MTB rear hub, shown here in the version for Boost bikes, has the fastest freehub DT Swiss has ever developed. This allows you to accelerate even more directly on the trail when you come out of a bend and adjust your pedalling position more quickly when a technical climb awaits you. The 240 DEG works with two size-optimised 90-tooth ratchets, which have a sensationally low engagement angle of just 4 degrees. This also changes the backlash, i.e. the idle distance of the crank before the freehub engages is shorter. This results in faster acceleration and greater reliability. In general, the ratchet system has the advantage over a pawl freehubl that the contact surface is larger and therefore the load is distributed more evenly. The 240 DEG hub also scores points with its incredible sound and easy maintenance, for which no special tools are required. It has a Boost-specific width of 12 x 148 mm and is compatible with 6-bolt brake rotors.

Specifications:

Series:

240

Application:

Downhill, Enduro, All Mountain

Brake Type:

6-bolt disc

Wheel Standard:

Boost

Freehub Body Type:

Ratchet 90

Technical Information:

Body Material:

aluminium

Bearings:

steel

Features:

• MTB rear hub for Boost bikes with two size-optimised 90-tooth ratchets and 4° engagement angle
• developed for fast acceleration and minimal idle distance on the trail
• direct acceleration out of bends
• quick adjustment of the pedalling position to overcome obstacles on technical climbs
• high reliability
• easy maintenance, no special tools required

Technology:

Ratchet System
The robust and reliable star ratchets freehub system can be maintained easily and quickly. The no-tool concept contributes to this, because it allows disassembly without any tools. The freehub has two ratchets which engage simultaneously. This means that the contact surface is large and the point load is kept small, which relieves the material and allows the freehub to work particularly reliably and precisely. The ratchet system has 36-tooth discs as standard, but can also be fitted with more or fewer teeth. If it also bears the designation " SL" (" Superlight" ), this means that the toothed discs are specially machined to save weight.

Models:

12 x 148 mm / 28 hole / SRAM XD:

Over Locknut Dimension:

12 x 148 mm thru-axle

Spoke Hole Count:

28 hole

Freehub:

SRAM XD

Gearing:

11-/12-speed

Manufacturer Number:

H240TDDRR28SA9756S

12 x 148 mm / 32 hole / SRAM XD:

Over Locknut Dimension:

12 x 148 mm thru-axle

Spoke Hole Count:

32 hole

Freehub:

SRAM XD

Gearing:

11-/12-speed

Manufacturer Number:

H240TDDRR32SA9756S

12 x 148 mm / 28 hole / Shimano Micro Spline:

Over Locknut Dimension:

12 x 148 mm thru-axle

Spoke Hole Count:

28 hole

Freehub:

Shimano Micro Spline

Gearing:

12-speed

Manufacturer Number:

H240TDD2R28SA0048S

12 x 148 mm / 32 hole / Shimano Micro Spline:

Over Locknut Dimension:

12 x 148 mm thru-axle

Spoke Hole Count:

32 hole

Freehub:

Shimano Micro Spline

Gearing:

12-speed

Manufacturer Number:

H240TDD2R32SA0048S

Contents:

• 1 x DT Swiss 240 DEG Boost rear hub
