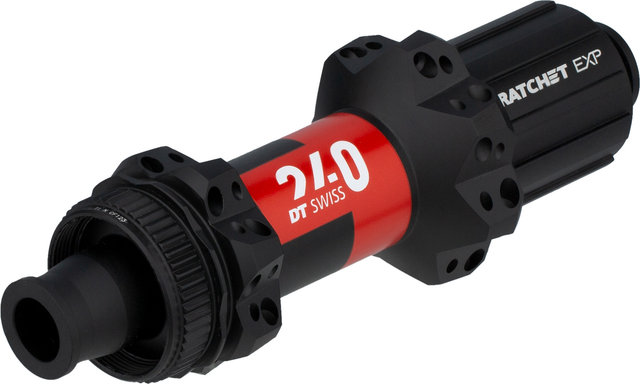

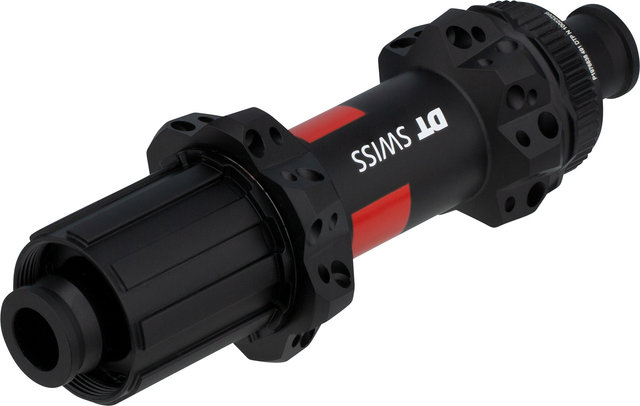

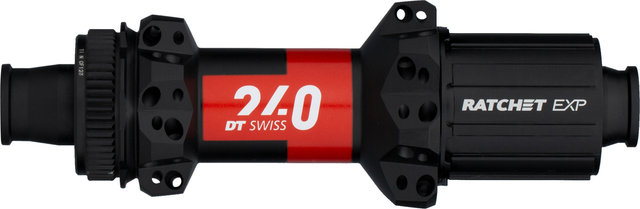

DT Swiss 240 Straight Pull MTB Boost Centre Lock Disc Rear Hub

DT Swiss 240 Straight Pull MTB Boost Centre Lock Disc rear hub - for MTBs with wide tyres

In the disc brake version for centre lock brake rotors, the DT Swiss 240 Straight Pull MTB rear hub with Boost-Standard offers you plenty of room for really wide tyres. Furthermore, the new freehub technology from DT Swiss is used here. The Ratchet EXP freehub uses the advantages of a ratchet with 36 teeth. These offer optimum power transmission, preventing undesirable idling. In addition, bearings integrated into the threaded rings increase the distance between the bearings. As a result, the axis moves less, which leads to a lower load on the bearings. Therefore, the already stable Boost hub is even more durable. Due to the no-tool concept, you can service the 240 Straight Pull without tools and change the freehub body. The centre lock disc brake mount does its part to provide you with state-of-the-art standards on your bike.

Specifications:

Application:

All Mountain, Cross Country, Enduro

Brake Type:

Center Lock Disc

Wheel Standard:

Boost

Freehub Body Type:

Ratchet EXP 36

Technical Information:

Body Material:

aluminium

Bearings:

steel bearings

Seals:

precision seal

Technology:

Ratchet EXP:
A ratchet and a threaded ring are integrated into the hub. This reduces the number of components required, resulting in less wear and tear and a lower weight. In addition, the heavy-duty and reliable ratchet system can be easily and quickly maintained. The no-tool concept plays a decisive role, as it allows the freehub to be replaced without any tools. The freehub has two ratchets which engage simultaneously. This means that the contact surface is large and the point load is kept small, which relieves the material and allows the freehub to work particularly reliably and precisely.

Models:

12 x 148 mm / 28 hole / Shimano:

Over Locknut Dimension:

12 x 148 mm thru-axle

Spoke Hole Count:

28

Freehub:

Shimano MTB

Gearing:

8-/9-/10-/11-speed

Flange Distance (L/R):

57.3 mm (35.8 mm/21.5 mm)

Partial Bolt Circle Diameter (L/R):

35.9 mm/42.8 mm

Manufacturer Number:

H24PTCDBR28SA3298S

12 x 148 mm / 28 hole / Shimano Micro Spline:

Over Locknut Dimension:

12 x 148 mm thru-axle

Spoke Hole Count:

28

Freehub:

Shimano Micro Spline

Gearing:

12-speed

Flange Distance (L/R):

57.3 mm (35.8 mm/21.5 mm)

Partial Bolt Circle Diameter (L/R):

35.9 mm/42.8 mm

Manufacturer Number:

H24PTCD2R28SA4892S

12 x 148 mm / 28 hole / SRAM XD:

Over Locknut Dimension:

12 x 148 mm thru-axle

Spoke Hole Count:

28

Freehub:

SRAM XD

Gearing:

11-/12-speed

Flange Distance (L/R):

57.3 mm (35.8 mm/21.5 mm)

Partial Bolt Circle Diameter (L/R):

35.9 mm/42.8 mm

Manufacturer Number:

H24PTCDRR28SA4888S

Contents:

• 1 x DT Swiss 240 Straight Pull MTB Boost rear hub
