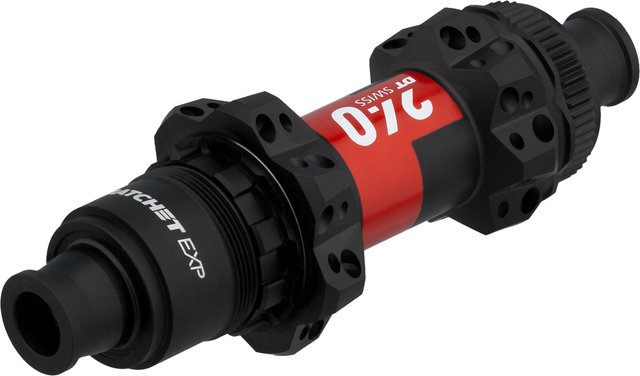

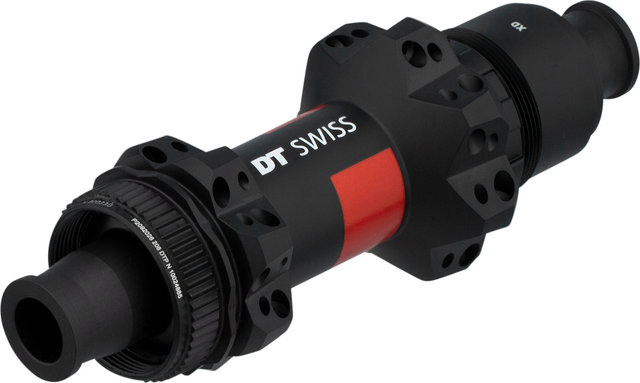

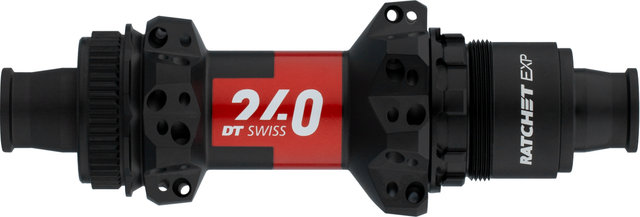

DT Swiss 240 Straight Pull MTB Center Lock Disc Rear Hub

DT Swiss 240 Straight Pull MTB Center Lock Disc rear hub - precise, light and durable

The 240 Straight Pull MTB hub from DT Swiss in the disc brake version for Center Lock brake rotors is the first choice for the rear wheel of your mountain bike. The Ratchet EXP freehub uses the advantages of a ratchet with 36 teeth. These offer precise power transmission, preventing undesirable idling. Through the bearings which are integrated into the threaded rings, the distance between the bearings is increased. As a result, the axis moves less, which leads to a lower load on the bearings. This gives the hub an increased durability. Due to the no-tool concept, you can service the 240 Straight Pull without tools and change the freehub body.

Specifications:

Application:

All Mountain

Brake Type:

Center Lock Disc

Freehub Body Type:

Ratchet EXP 36

Technical Information:

Body Material:

aluminium

Bearings:

steel bearings

Seals:

precision seal

Technology:

Ratchet EXP:
A ratchet and a threaded ring are integrated into the hub. This reduces the number of components required, resulting in less wear and tear and a lower weight. In addition, the heavy-duty and reliable ratchet system can be easily and quickly maintained. The no-tool concept plays a decisive role, as it allows the freehub to be replaced without any tools. The freehub has two ratchets which engage simultaneously. This means that the contact surface is large and the point load is kept small, which relieves the material and allows the freehub to work particularly reliably and precisely.

Models:

12 x 142 mm / 28 hole / Shimano:

Over Locknut Dimension:

12 x 142 mm thru-axle

Spoke Hole Count:

28

Freehub:

Shimano MTB

Gearing:

8-/9-/10-/11-speed

Flange Distance (L/R):

51.3 mm (32.8 mm/18.5 mm)

Partial Bolt Circle Diameter (L/R):

35.9 mm/42.8 mm

Manufacturer Number:

H24PNCDBR28SA3232S

12 x 142 mm / 28 hole / SRAM XD:

Over Locknut Dimension:

12 x 157 mm thru-axle

Spoke Hole Count:

28

Freehub:

SRAM XD

Gearing:

11-/12-speed

Flange Distance (L/R):

51.3 mm (32.8 mm/18.5 mm)

Partial Bolt Circle Diameter (L/R):

35.9 mm/42.8 mm

Manufacturer Number:

H24PNCDRR28SA4885S

Contents:

• 1 x DT Swiss 240 Straight Pull MTB rear hub
