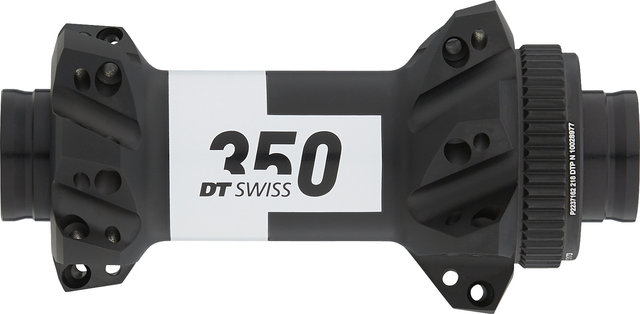

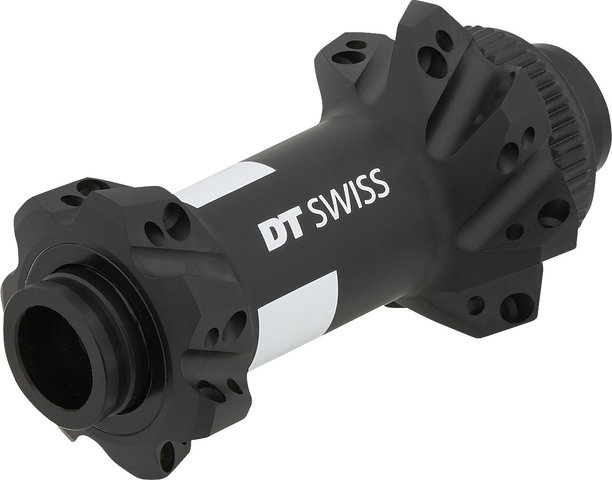

DT Swiss 350 Straight Pull MTB Center Lock Disc Front Hub

The 350 Straight Pull Center Lock Disc Front Hub by DT Swiss for extra solid MTB wheels

This 350 MTB front hub from DT Swiss is designed for straight pull spokes and a center-lock brake rotor. The end caps are shaped in such a way that uncomplicated and, above all, quick disassembly is possible. This is an advantage especially during races, but easy wheel removal is also an asset if you have a second wheelset that you use depending on the course or conditions. The sturdy aluminium hub body ensures a long service life, as do the steel bearings. The bearing play has been minimised and optimised. This is made possible by preloading the bearings before the hub is not clamped in the frame. Once fastened with the thru-axle, the preload is released and the bearings are maximally slidable. Thanks to the precision seals, they are also excellently protected against moisture and dirt.

Specifications:

Application:

All Mountain, Cross Country

Brake Type:

Center Lock Disc

Technical Information:

Body Material:

aluminium

Bearings:

steel bearings

Seals:

precision seal

Features:

• quick disassembly possible thanks to the special shape of the end caps
• optimised bearing clearance due to preloading before the hub is installed
• 100% Swiss-made

Technology:

Straight Pull
Straight pull stands for straight, no-bend spokes. Thanks to this technology it is possible to achieve an ideal ratio between weight and stability. The straight pull spokes allow a very precise alignment and optimised positioning in the wheel, resulting in a stiffer and more responsive wheel.

Models:

15 x 100 mm / 28 hole:

Over Locknut Dimension:

15 x 100 mm thru-axle

Spoke Hole Count:

28 hole

Flange Distance (L/R):

23.0 mm / 35.0 mm

Partial Bolt Circle Diameter (L/R):

40.8 mm / 36.0 mm

Manufacturer Number:

H35PACIXR28SA8977S

Contents:

• 1 x DT Swiss 350 Straight Pull MTB Center Lock Disc front hub
