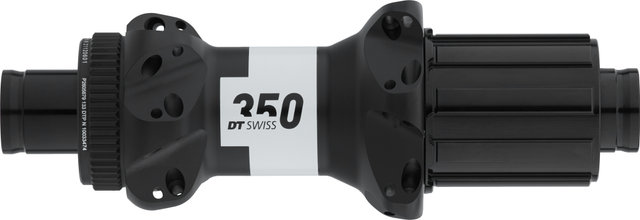

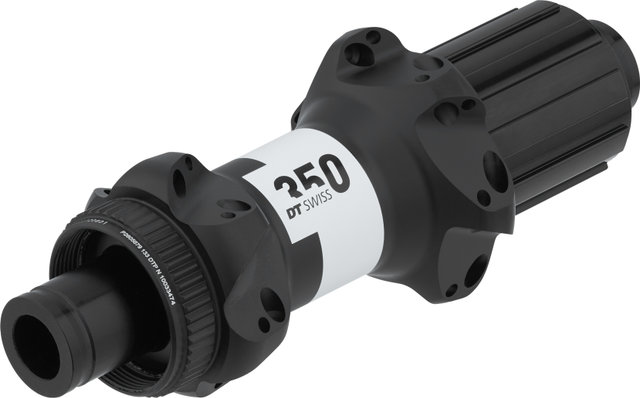

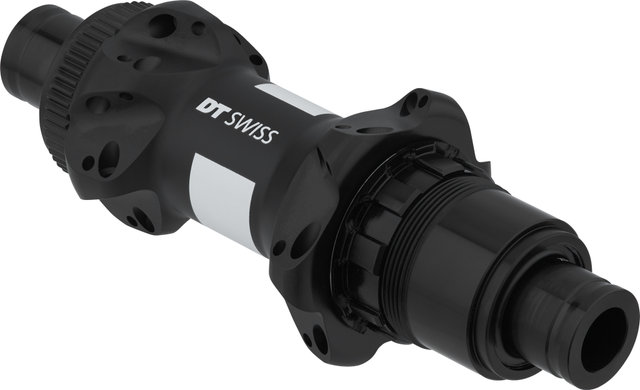

DT Swiss 350 Straight Pull Road Center Lock Disc Rear Hub - 2023 Model

The 350 Straight Pull Center Lock Disc rear hub by DT Swiss for super-stiff road wheels

This 350 Road rear hub from DT Swiss is designed for straight pull spokes and a center lock brake rotor. Its core is a resilient freehub with Ratchet 36 System and precision star ratchets. Thanks to the no-tool concept, the hub can be easily maintained without the use of tools. The end caps are shaped in such a way that uncomplicated and, above all, quick disassembly of the hub is possible. This is an advantage especially during races, but easy wheel removal is also an asset if you have a second wheelset that you use depending on the course or conditions. The sturdy aluminium hub body ensures a long service life, as do the steel bearings. The bearing play has been minimised and optimised. This is made possible by preloading the bearings before the hub is not clamped in the frame. Once fastened with the thru-axle, the preload is released and the bearings are maximally slidable. Thanks to the precision seals, they are also excellently protected against moisture and dirt.

Specifications:

Application:

Road, Gravel, Cyclocross

Brake Type:

Center Lock Disc

Freehub Body Type:

Ratchet System 36

Technical Information:

Body Material:

aluminium

Bearings:

steel bearings

Seals:

precision seal

Features:

• rear hub for road bikes with Ratchet 36 freehub
• for straight pull spokes and center lock brake rotors
• no-tool concept for tool-free maintenance
• quick disassembly possible thanks to the special shape of the end caps
• optimised bearing clearance due to preloading before the hub is installed
• aluminium freehub body
• durable steel bearings
• 100% Swiss-made

Technology:

Ratchet System®
The patented freehub system with high-precision star ratchets guarantees maximum load capacity and reliability. Thanks to the no-tool concept, the system is very easy and quick to maintain.

Straight Pull
Straight pull stands for straight, no-bend spokes. Thanks to this technology it is possible to achieve an ideal ratio between weight and stability. The straight pull spokes allow a very precise alignment and optimised positioning in the wheel, resulting in a stiffer and more responsive wheel.

Models:

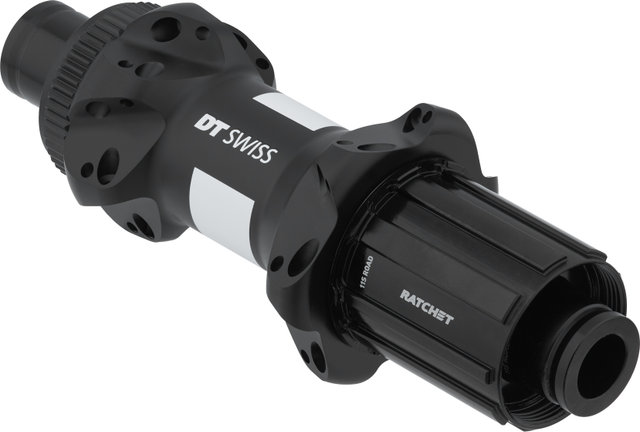

12 x 142 mm / 24 hole / Shimano:

Over Locknut Dimension:

12 x 142 mm thru-axle

Spoke Hole Count:

24 hole

Freehub:

Shimano Road

Gearing:

8-/9-/10-/11-/12-speed

Note:

The assembly of 8-/9-/10-speed cassettes on a Shimano road rotor requires a 1.85 mm spacer.

Manufacturer Number:

H35PNCDIR24SA3474S

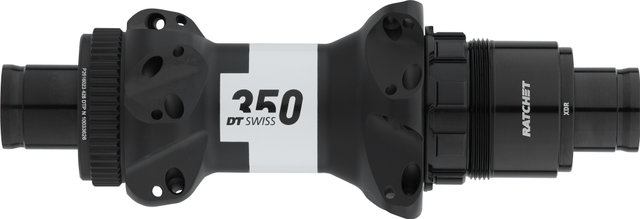

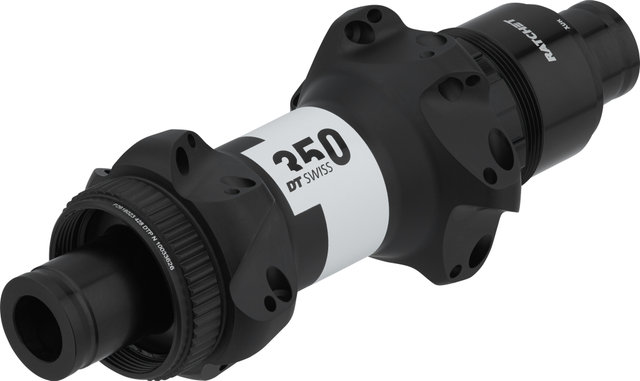

12 x 142 mm / 24 hole / SRAM XDR:

Over Locknut Dimension:

12 x 142 mm thru-axle

Spoke Hole Count:

24 hole

Freehub:

SRAM XDR

Gearing:

11-/12-speed

Note:

To mount XD cassettes on an XDR rotor, a 1.8 mm spacer is required.

Manufacturer Number:

H35PNCD1R24SA3626S

Contents:

• 1 x DT Swiss 350 Straight Pull Road Center Lock Disc rear hub
