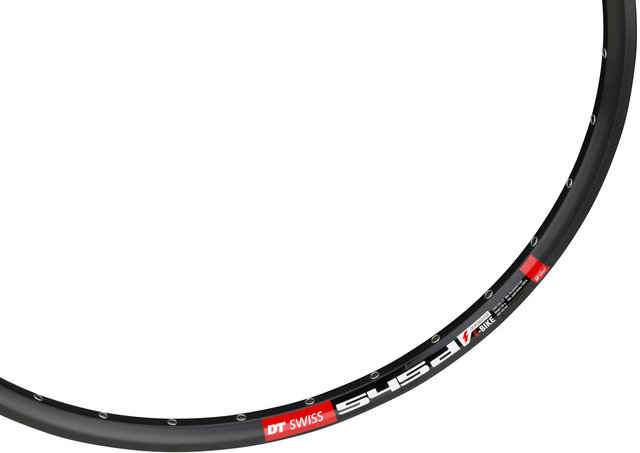

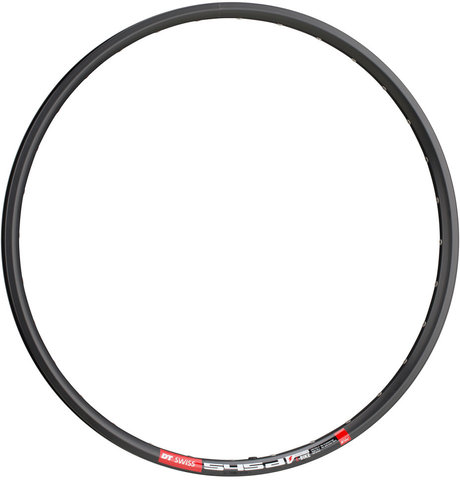

DT Swiss 545 D Disc E-Bike 26" Rim
Item number: 64263
545 D - the perfect rim for e-bikes with disc brakes. Steel eyelets, an extra-sturdy design and the wide tread guarantee durability and compatibility with large-volume tyres.
26" / 36 hole:
Guidelines for Replacing E-bike Components:
Before you replace components on your e-bike, please read through the guidelines for component replacement for CE-marked e-bikes/pedelecs with pedal assistance.Specifications:
- Application:
- E-Bike
- Wheel Size:
- 26"
- Tyre Type:
- clincher tyre
- Number of Spokes:
- 32, 36
- Brake Type:
- disc
- Tubeless System:
- none
Technical Information:
- Dimensions (ETRTO):
- 21-559
- Inner Width:
- 21 mm
- Outer Width:
- 27 mm
- Depth:
- 19 mm
- ERD:
- 542 mm
- Valve Hole Diameter:
- SV/Presta (6.5 mm)
- Rim Material:
- aluminium
Approved For:
- Weight Limit:
- 140 kg (system weight)
- Air Pressure (max.):
- 7.8 bars
- Recommended Tyre Width:
- 1.1 - 2.5"
Features:
- single eyelets
- 1200 N max. spoke tension
- rim tape: 559x23 mm
Models:
26" / 32 hole:- Wheel Size: 26"
- Number of Spokes: 32
- Manufacturer Number: RTE0XXDPS32S021133
26" / 36 hole:
- Wheel Size: 26"
- Number of Spokes: 36
- Manufacturer Number: RTE0XXDPS36S021134
Contents:
- 1 x DT Swiss 545 D rim
Weight:
- black/26" / 32 hole: 530 g
